- Yoke type cam follower
- Cylindrical outside diameter
- Tapered bearing insert
- Rubber-lipped seal
PCYR 6

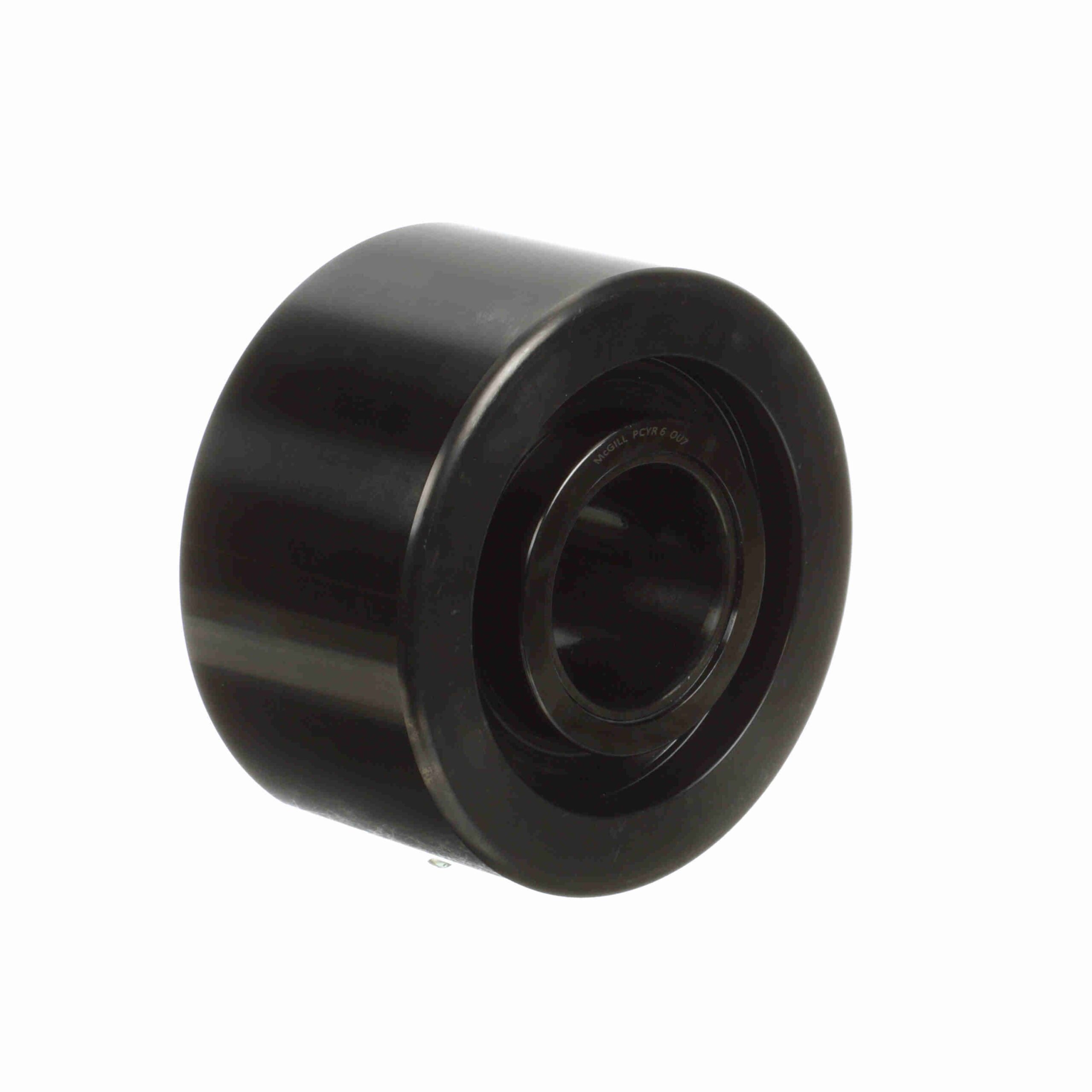

McGill TRAKROL® Cylindrical Track Roller – Yoke Mount Roller – Sealed – PCYR 6
Out of stock
| O.D. Configuration: | Cylindrical | Sealing: | Sealed |
|---|---|---|---|
| Limiting Speed: | 475 | Rolling Element: | Tapered Roller (TRAKROL) |
| Series: | TRAKROL® | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 | Platform: | TRAKROL® |
| Static Load Rating: | 58 | Dynamic Load Rating - single bearing: | 19 |
| Roller Shape: | Cylindrical | Dynamic Load Rating (lb): | 35, 800 lb |
| Dynamic Load Rating - both bearings: | 36 | Lubrication Hole Location: | None |
| Roller Material: | Chrome Steel | Adjustment: | None |
| Enclosure: | Open | Operating Temperature Range (F): | -20 to 250 °F °F |
| Ability to Relubricate: | No | UPC: | 726166124625 |
| Weight: | 20.47 LB | Packaged Length: | 6.12 Inches |
| Packaged Width: | 6.12 Inches | Packaged Height: | 4.25 Inches |
| HTC: | 8482.20.0040 | Country of Origin: | United States of America |
