- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Heavy stud configuration

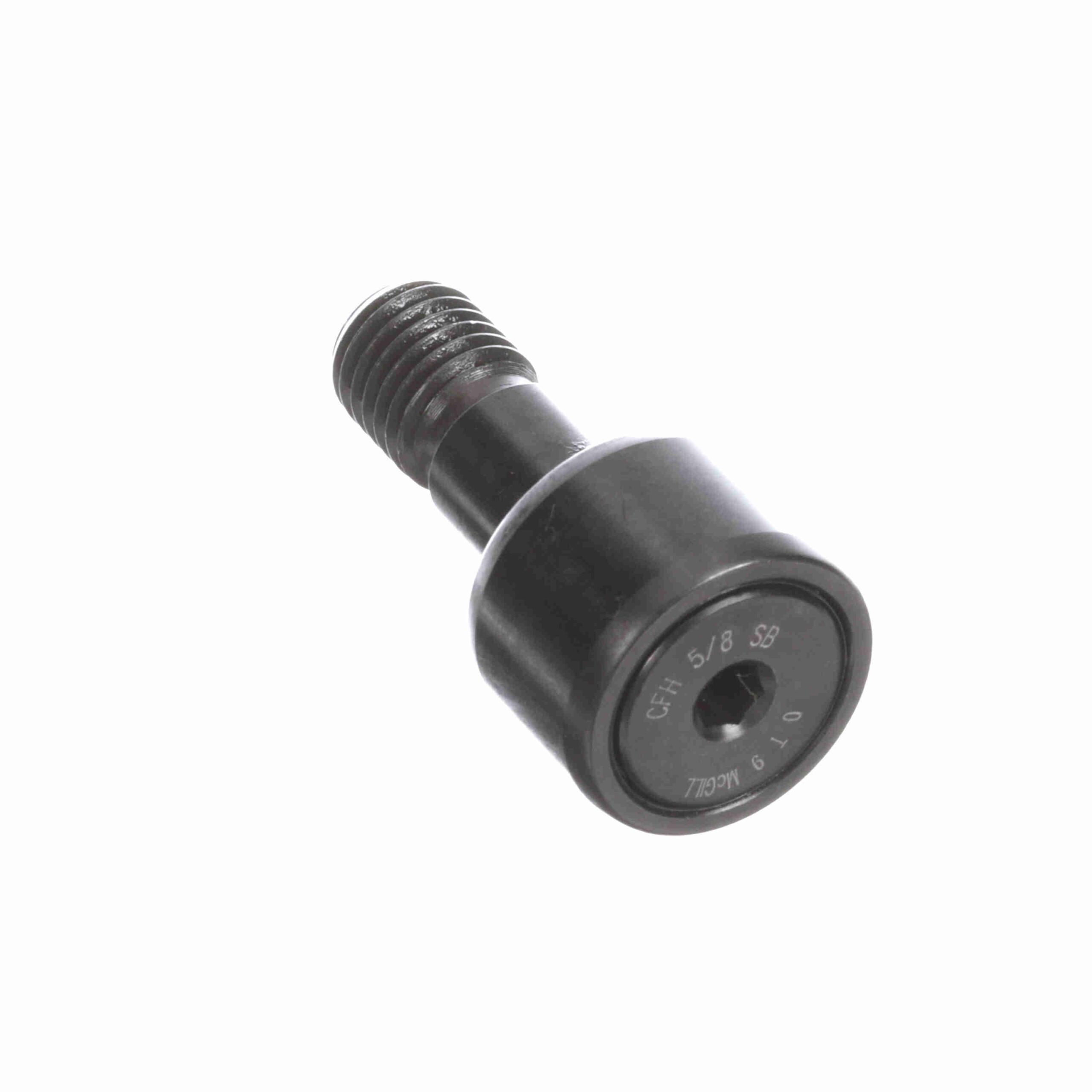

CFH 5/8 SB
McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CFH 5/8 SB
$22.80
Availability: 377 in stock
Availability: 377 in stock
| Limiting Speed: | 9 | Adjustment: | None |
|---|---|---|---|
| Sealing: | Sealed | O.D. Configuration: | Cylindrical |
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| Series: | Inch CAMROL® | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Heavy Stud | Dynamic Load Rating (lb): | 955 lb |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Static Load Rating: | 2 |
| Lubrication Hole Location: | Stud side | Clamping Torque (in-lbf): | 90 lbs |
| Ability to Relubricate: | No | UPC: | 726166031145 |
| Weight: | 0.06 LB | Packaged Length: | 1.75 Inches |
| Packaged Width: | 1 Inches | Packaged Height: | 1.75 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
