- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- Jam nuts and lube fitting included
MCF 30 B

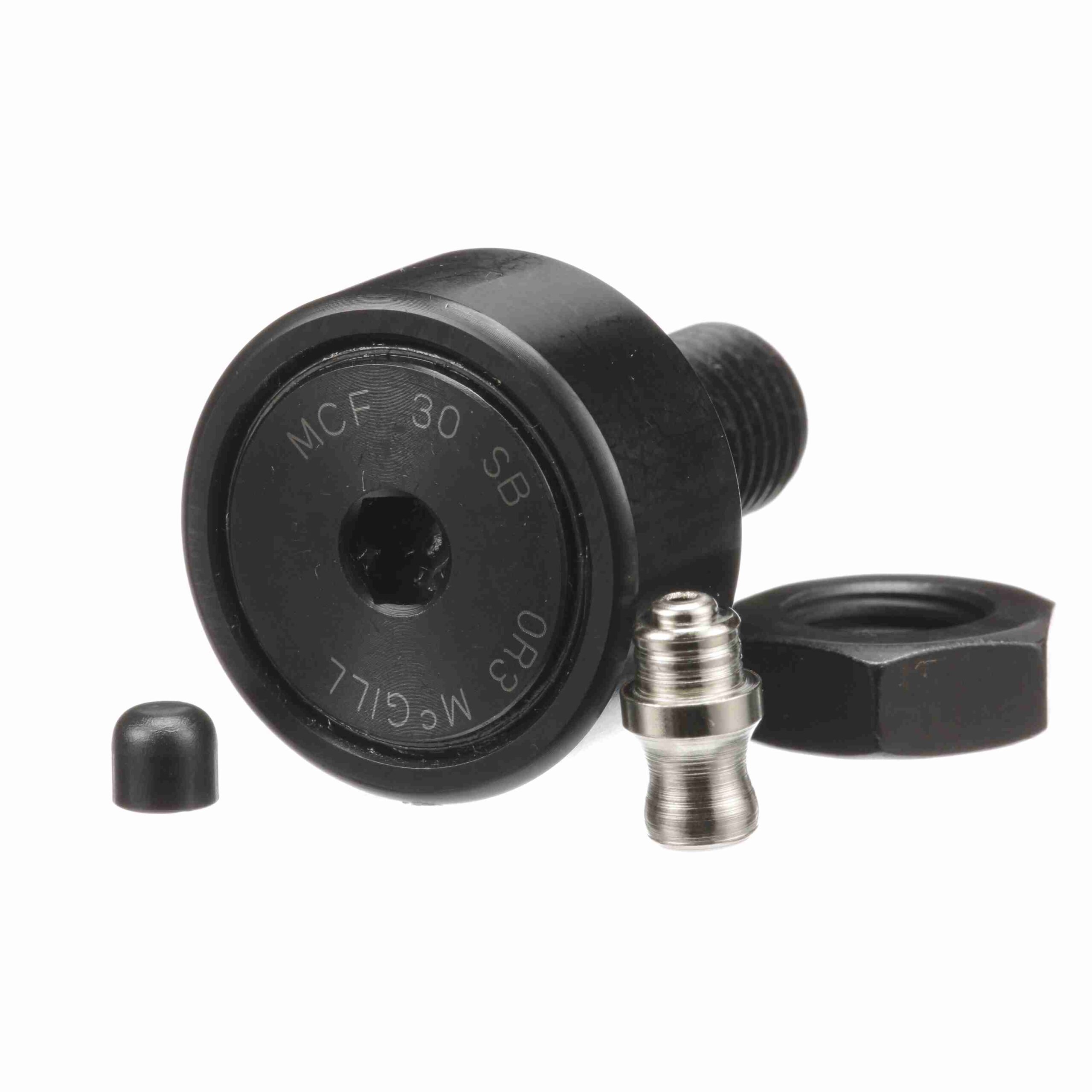

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – MCF 30 B
$40.21
Out of stock
Out of stock
| Adjustment: | None | Series: | Metric CAMROL® |
|---|---|---|---|
| O.D. Configuration: | Crowned | Sealing: | Unsealed |
| Dynamic Radial Rating: | 2 | Limiting Speed: | 6 |
| Rolling Element: | Needle Roller - Full Complement | Hex/Slot: | Hex Hole |
| Dynamic Track Roller Load Rating (N): | 11, 080 N | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 15 | Static Load Rating: | 15 |
| Stud Type: | Standard Stud | Tolerance Class: | P0 Equivalent |
| Industry Standard: | DIN / JIS | Platform: | CAMROL® |
| Roller Shape: | Crowned | Dynamic Load Rating (N): | 13, 240 N |
| Ability to Relubricate: | Yes | Clamping Torque (Nm): | 22 N·m |
| UPC: | 726166018566 | Weight: | 0.25 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
