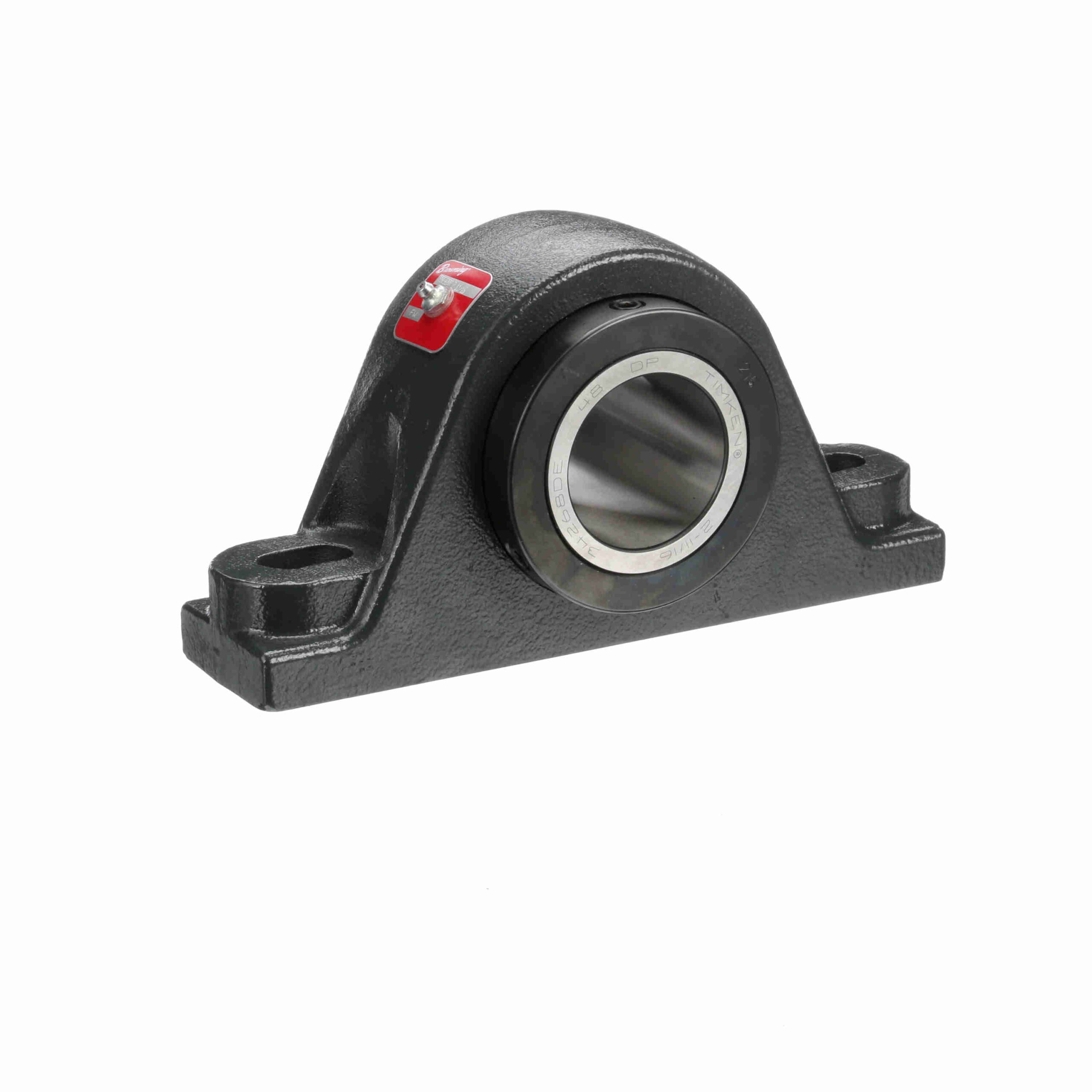

PBE920X 2 11/16

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Single lip contact face-riding seals rotate with the shaft
Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy 2-bolt cast iron housing

Seal Type:	Single Lip Contact Seal	Measure Units:	Inch
Housing Material:	Cast Iron	Inner-Race Heat-Treat Method:	Case Carburized Inner Ring
Rolling Element:	Tapered Roller	Maximum Operating Temperature:	200 °F
Expansion:	No	Insert Material:	52100 Bearing Steel
Housing Type:	Pillow Block, Two Bolt	Housing Base:	Semi-Solid
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	9, 630
Speed (Max):	1500	Lubrication:	Lithium; EP; NLGI#2
Misalignment:	None	Locking Type:	Double Collar Mount
Relubricatable:	Yes	Bore Shape:	Straight
Internal Clearance:	Standard	Duty Series:	Standard
Outer Ring Land Profile:	Standard	Replaceable Insert:	No
Platform:	Type E	End Cap:	No
Misalignment Type:	None	Retainer Material:	Steel
Bearing Insert Coating:	Uncoated	Housing Color:	Gray
Series:	PBE920	Grease Fitting Thread Size:	1/8 NPT
UPC:	662289526598	Weight:	30.09 LB
Packaged Length:	12.25 Inches	Packaged Width:	6.25 Inches
Packaged Height:	4.5 Inches	HTC:	8483.20.8080
Country of Origin:	United States of America
