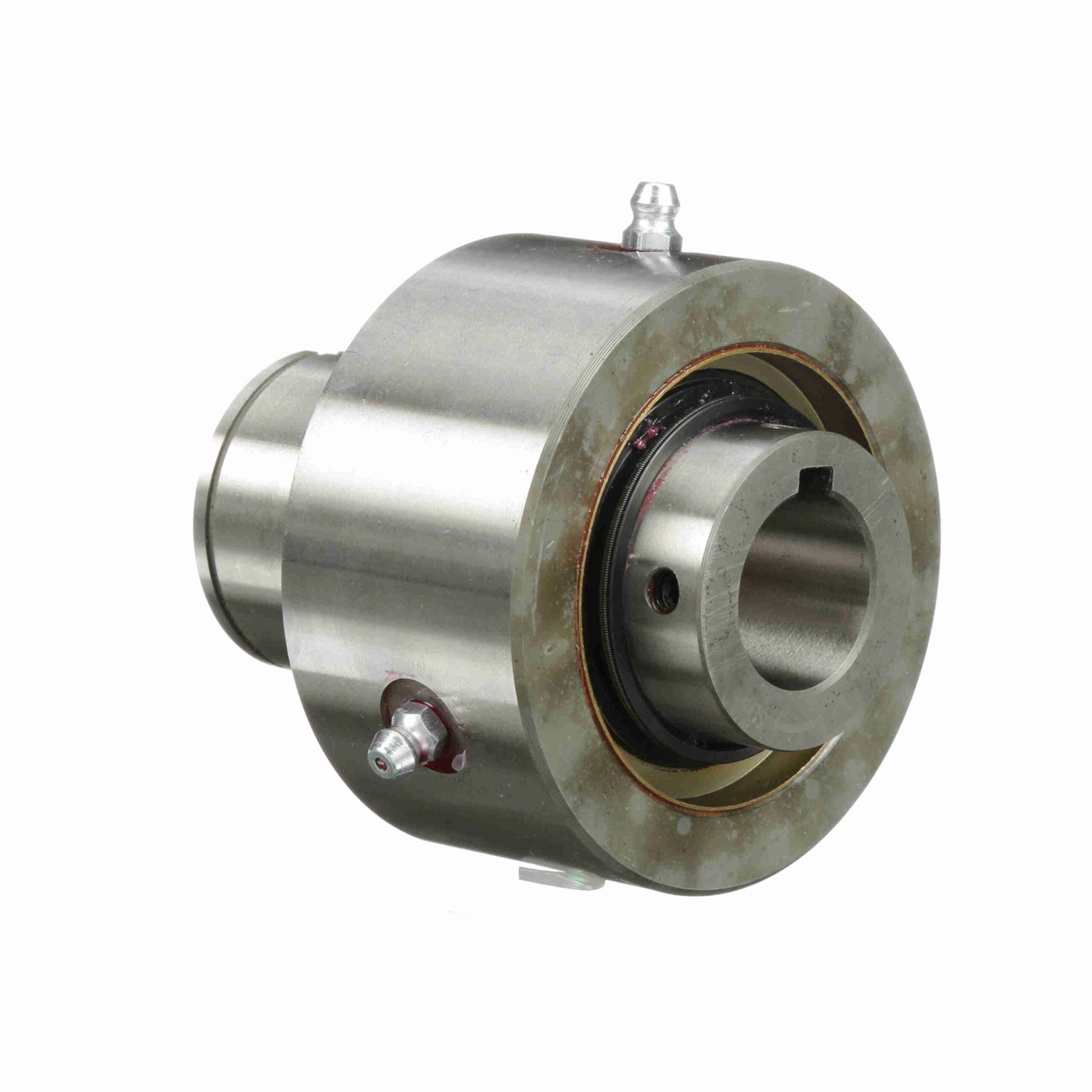

PB-8A CLUTCH 1.00B LH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
PB series clutch features precision formed cams providing high torque capacities with excellent wear life. These models are suitable for general duty applications.
A bonze seal maintains race concentricity. They a asymmetrical by design, so must be ordered according to rotation requirements.

Snap Ring (Not Furnished):	RS175	Model:	PB-8A
Groove Width:	.056/.076	Length to Groove:	1.315/1.320
RPM Max. - Inner Race:	1600	Keyway:	1/4 x 1/8
Configuration:	LH	Hub Diameter (in):	1.625 in
RPM Max. - Outer Race:	650	Groove Diameter:	1.696/1.686
Length to Snap Ring Groove (in):	1.75 in	Lubrication Type:	Grease
Overall Diameter (in):	3.25 in	Type:	CAM Clutches
Keyway Length (in):	1.0625 in	Overall Width (in):	3.5625 in
Mounting Diameter (in):	1.750/1.749 in	Mounting Length (in):	1.4375 in
Major Diameter Width (in):	1.6875 in	Key for Bore Size:	1/4 x 1/8
Add'l Bearing Support Requirement:	No	Product Type:	PB Series
Overrunning Clutch:	Yes	Bore Size (in):	1 in
Indexing Clutch:	Yes	Backstopping Clutch:	Yes
Rated Torque Capacity (ft.-lbs.):	450	UPC:	662288408123
Weight:	4.14 LB	Packaged Length:	4.40 Inches
Packaged Width:	4.80 Inches	Packaged Height:	4.40 Inches
HTC:	8483.60.4040	Country of Origin:	Mexico
