- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- PB series clutch features precision formed cams providing high torque capacities with excellent wear life. These models are suitable for general duty applications.
- A bonze seal maintains race concentricity. They a asymmetrical by design, so must be ordered according to rotation requirements.

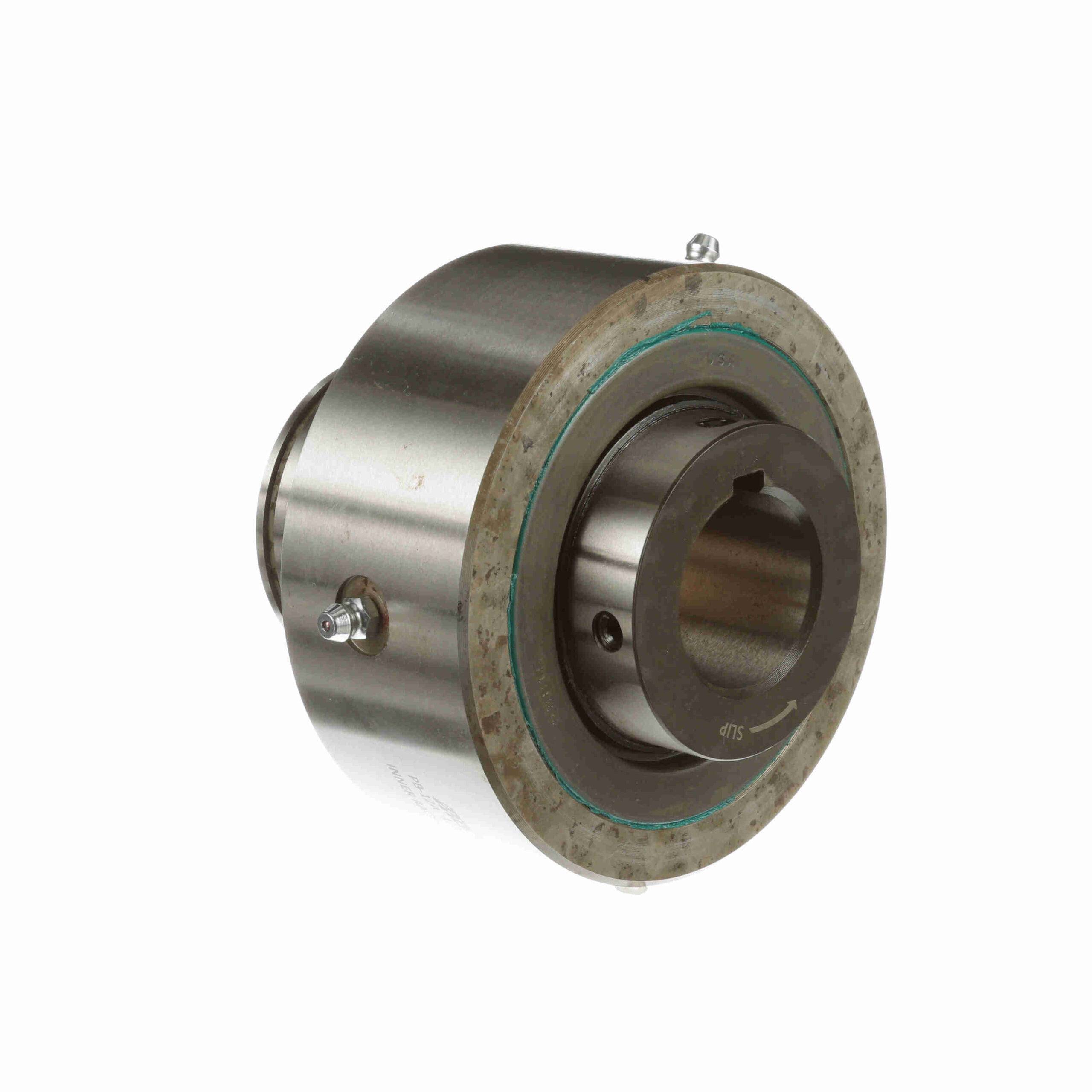

PB-12A CLUTCH 1.38B RH
Morse PB Series CAM Clutch – PB-12A CLUTCH 1.38B RH
$3,833.00
Out of stock
Out of stock
| Type: | CAM Clutches | Mounting Diameter (in): | 2.500/2.499 in |
|---|---|---|---|
| Configuration: | RH | Major Diameter Width (in): | 1.875 in |
| Keyway: | 3/8 x 3/16 | Length to Snap Ring Groove (in): | 2.0625 in |
| Overall Width (in): | 3.875 in | Groove Diameter: | 2.391/2.379 |
| RPM Max. - Outer Race: | 300 | Model: | PB-12A |
| Overall Diameter (in): | 4.4375 in | Lubrication Type: | Grease |
| RPM Max. - Inner Race: | 1200 | Groove Width: | .120/.130 |
| Mounting Length (in): | 1.4375 in | Key for Bore Size: | 5/16 x 5/32 |
| Keyway Length (in): | 1.125 in | Length to Groove: | 1.311/1.321 |
| Snap Ring (Not Furnished): | RST250 | Hub Diameter (in): | 2.375 in |
| Add'l Bearing Support Requirement: | No | Bore Size (in): | 1.375 in |
| Rated Torque Capacity (ft.-lbs.): | 1, 350 | Indexing Clutch: | Yes |
| Product Type: | PB Series | Backstopping Clutch: | Yes |
| Overrunning Clutch: | Yes | UPC: | 662288408178 |
| Weight: | 8.53 LB | Packaged Length: | 5.40 Inches |
| Packaged Width: | 5.70 Inches | Packaged Height: | 4.40 Inches |
| HTC: | 8483.60.4040 | Country of Origin: | Mexico |
