- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- PB series clutch features precision formed cams providing high torque capacities with excellent wear life. These models are suitable for general duty applications.
- A bonze seal maintains race concentricity. They a asymmetrical by design, so must be ordered according to rotation requirements.

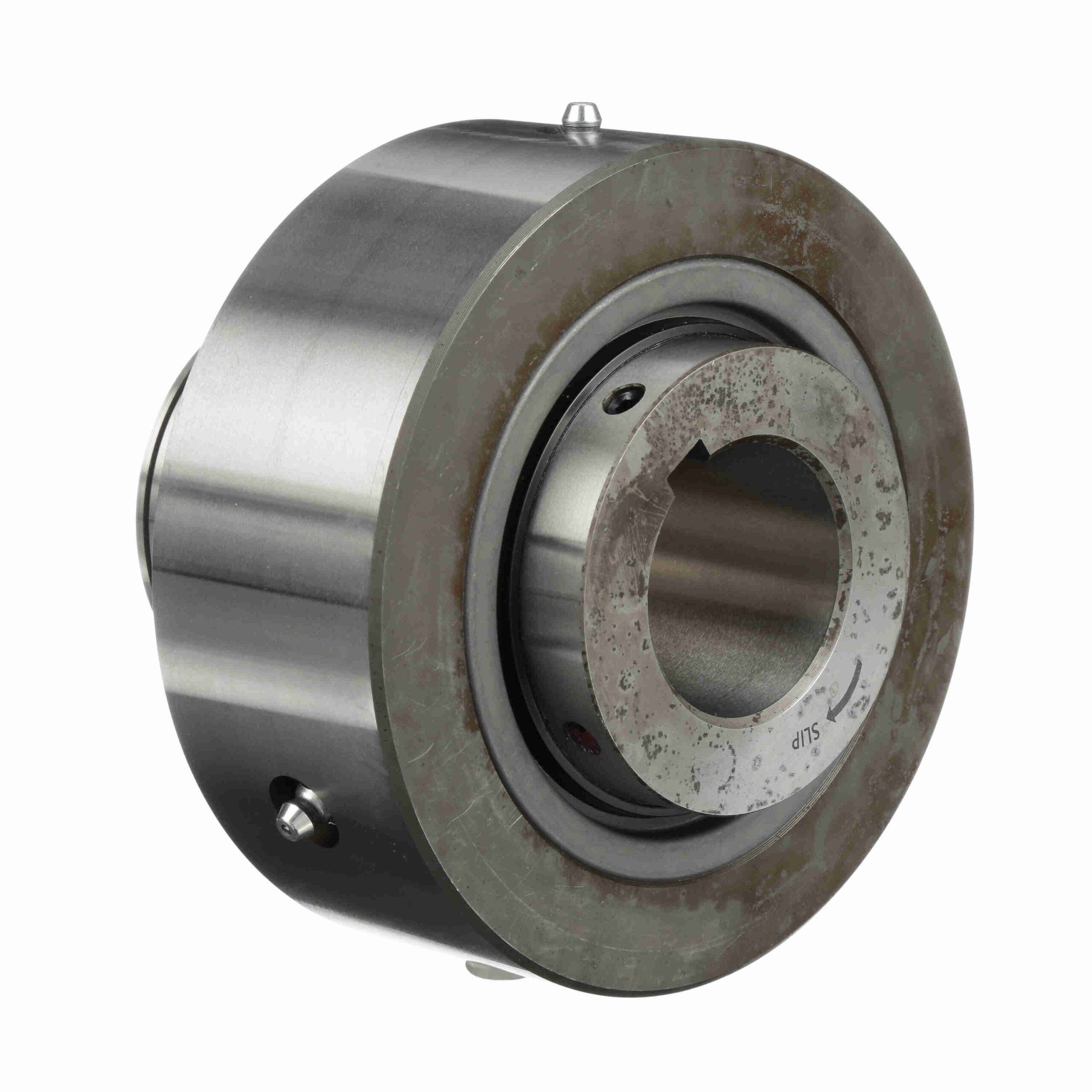

PB-14A CLUTCH 1.75B LH
Morse PB Series CAM Clutch – PB-14A CLUTCH 1.75B LH
$5,159.52
Out of stock
Out of stock
| Configuration: | LH | Mounting Diameter (in): | 2.875/2.874 in |
|---|---|---|---|
| Type: | CAM Clutches | Key for Bore Size: | 3/8 x 3/16 |
| Length to Groove: | 1.625/1.630 | Keyway Length (in): | 1.375 in |
| Overall Diameter (in): | 5.5 in | Model: | PB-14A |
| Groove Width: | .056/.076 | Lubrication Type: | Grease |
| Major Diameter Width (in): | 2.125 in | Keyway: | 7/16 x 7/32 |
| Overall Width (in): | 4.375 in | RPM Max. - Inner Race: | 950 |
| Length to Snap Ring Groove (in): | 2 in | Groove Diameter: | 2.787/2.775 |
| Mounting Length (in): | 1.75 in | RPM Max. - Outer Race: | 300 |
| Hub Diameter (in): | 3 in | Snap Ring (Not Furnished): | RS287 |
| Add'l Bearing Support Requirement: | No | Rated Torque Capacity (ft.-lbs.): | 1, 600 |
| Indexing Clutch: | Yes | Bore Size (in): | 1.75 in |
| Product Type: | PB Series | Overrunning Clutch: | Yes |
| Backstopping Clutch: | Yes | UPC: | 662288408246 |
| Weight: | 14.79 LB | Packaged Length: | 6.70 Inches |
| Packaged Width: | 6.40 Inches | Packaged Height: | 6.50 Inches |
| HTC: | 8483.60.4040 | Country of Origin: | Mexico |
