- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
P1 1

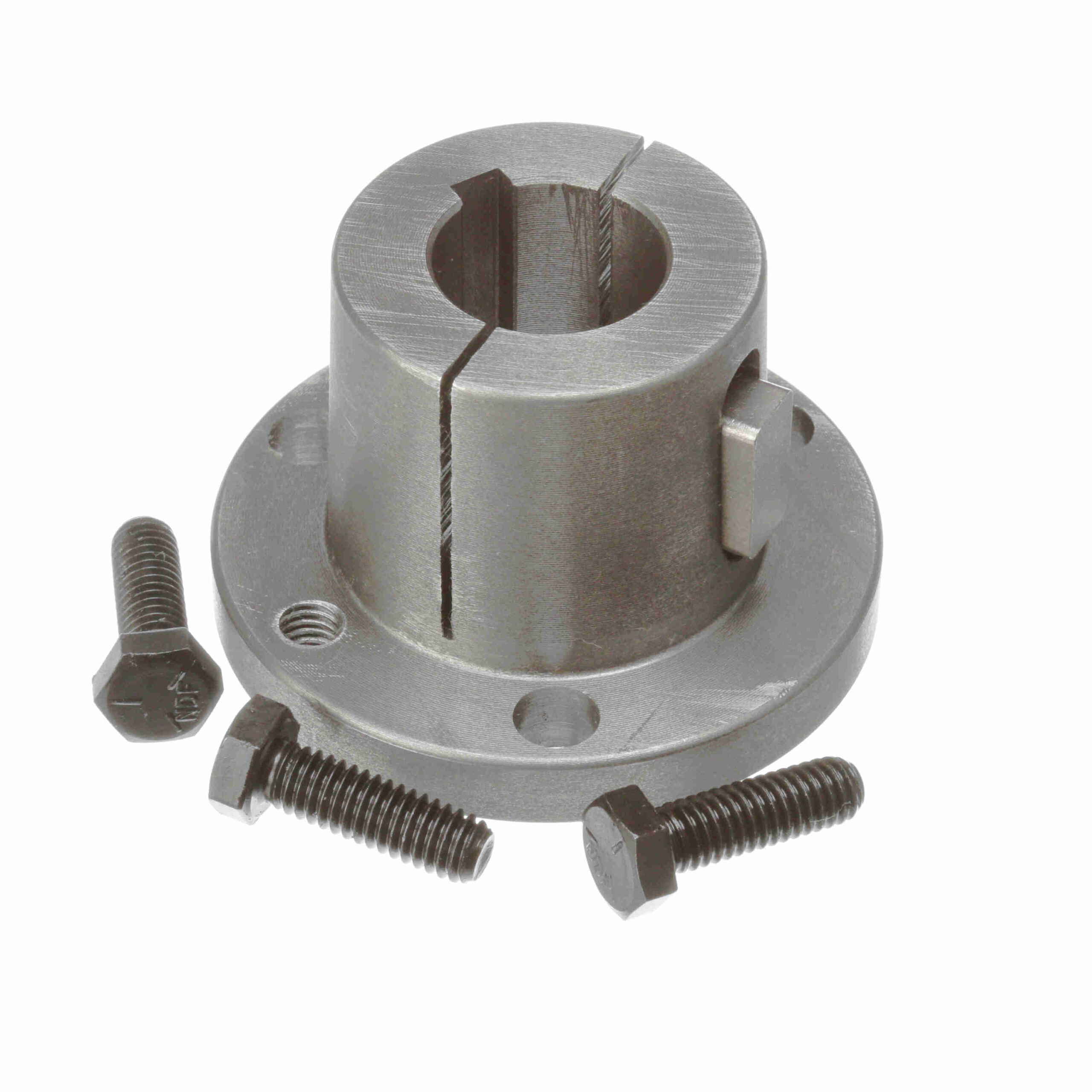

Browning Split Taper Bushing – Inch Bore Type – P1 1
$31.30
Out of stock
Out of stock
| Keyseat: | 1/4 x 1/8 | Product Type: | Split Taper Bushing |
|---|---|---|---|
| Model Name: | P1_Bushing-Type1_Master | Outside Diameter (in): | 3 in |
| Cap Screws (Size): | 5/16 x 1 | Compatible Bore Size [Max] (in): | 1 in |
| Bushing Type: | P1 | Total Length (in): | 1.9375 in |
| Length Through Bore (in): | 1.9375 in | Bore Size (in): | 1 in |
| Wrench Torque (in-lb): | 192 | Material: | Sintered Steel or Ductile Iron |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289159208 | Weight: | 1.48 LB |
| Packaged Length: | 3.2 Inches | Packaged Width: | 3.2 Inches |
| Packaged Height: | 2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
