- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NU 2320 EM C3

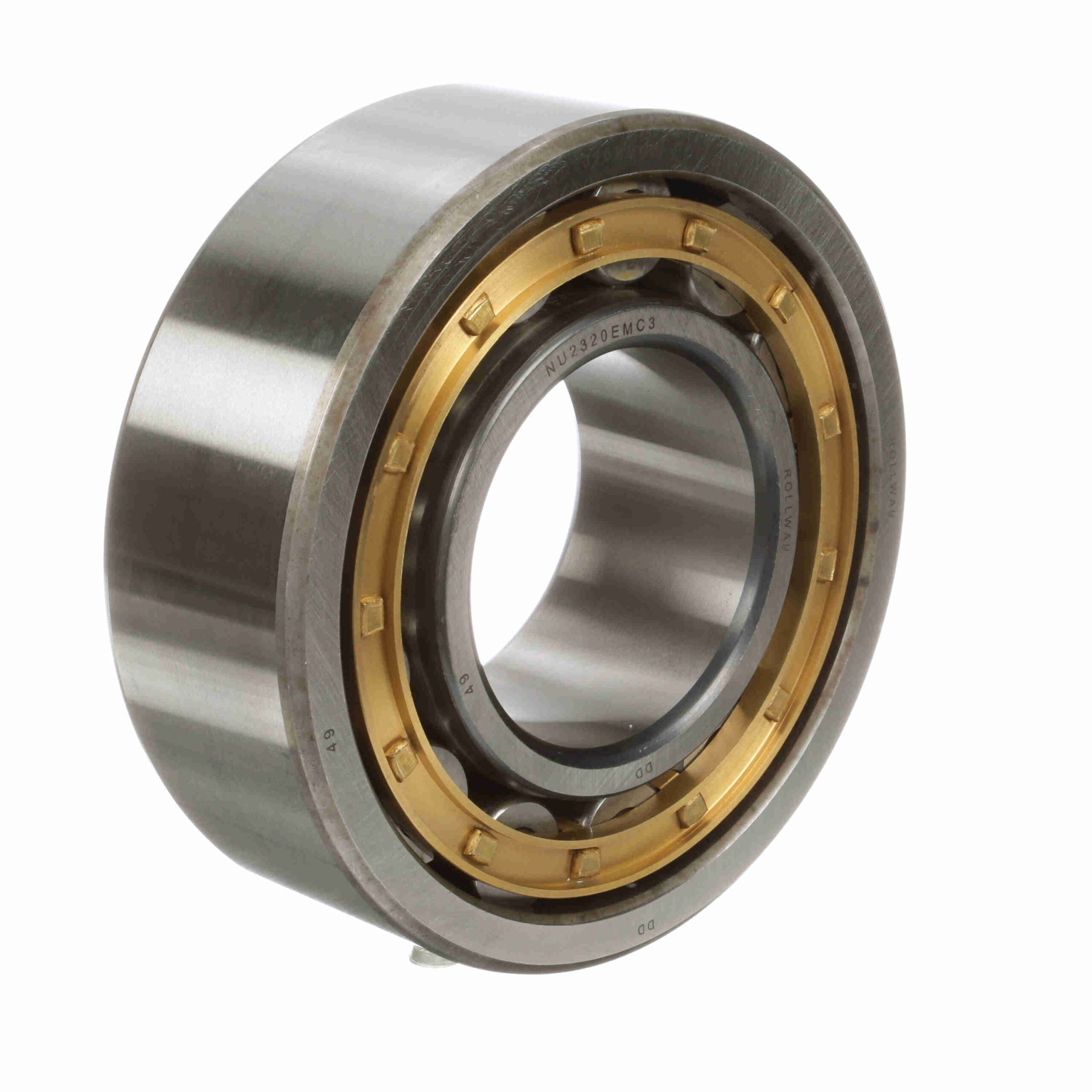

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 2320 EM C3
$4,932.78
Out of stock
Out of stock
| Inner Race Configuration: | Separable Both Directions | Version: | EM: Extra capacity design - Machined brass retainer |
|---|---|---|---|
| Outer Race Configuration: | Non-Separable | Additional Information: | Suitable for radial loads only |
| Seal Type: | Unsealed | Cage Material: | Brass |
| Static Load Rating (kN): | 714 kN | Bore Type: | Straight |
| Misalignment: | No | Radial Clearance: | C3 |
| Number of Rows: | 1 | Rolling Element: | Cylindrical Roller |
| Material: | High Chromium Bearing Steel | Sealed: | None |
| Dynamic Load Rating (lb): | 127, 691 lb | Duplexing: | No |
| Speed [Max] Oil (RPM): | 3, 200 rpm | Speed [Max] Grease (RPM): | 2, 600 rpm |
| Full Complement/Caged: | Caged | Platform: | Cylindrical Radial |
| Static Load Rating (lb): | 160, 514 lb | Snap Ring: | No |
| Profile: | Complete with Outer and Inner Race | Separable: | Inner ring - both sides |
| Retainer: | Yes | UPC: | 637410087927 |
| Weight: | 29.31 LB | Packaged Length: | 8.9 Inches |
| Packaged Width: | 9.6 Inches | Packaged Height: | 3.4 Inches |
| Country of Origin: | China |
