- Shaft, housing plates, and rollers are through hardened bearing grade steel.
- Roller OD are crowned
T-618

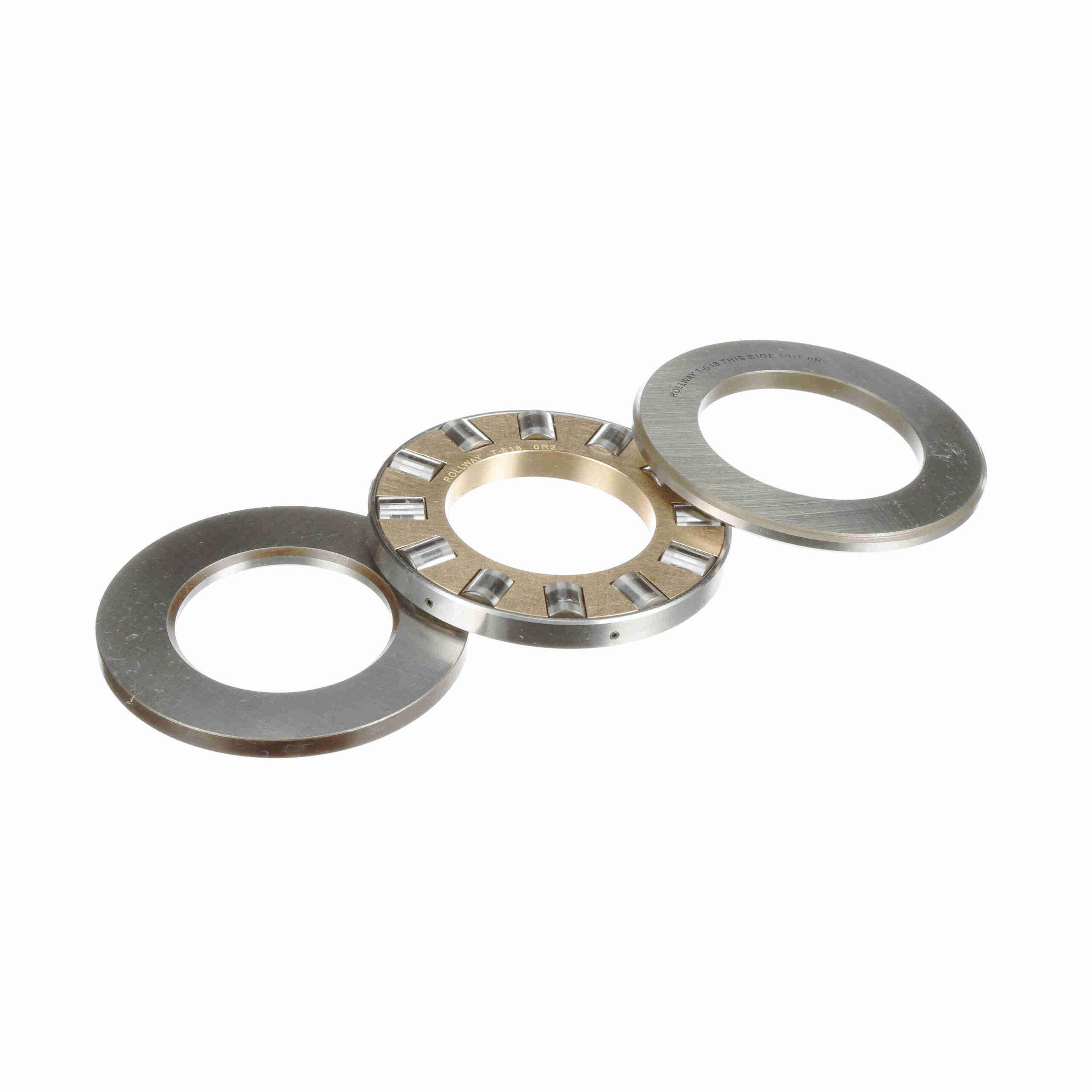

Rollway Thrust Cylindrical Roller Bearing – Caged Roller – T-618
Out of stock
| Thrust Direction: | Single | Bore Type: | Straight |
|---|---|---|---|
| Cage Material: | Brass | Seal Type: | Unsealed |
| Number of Rows: | 1 | Material: | High Chromium Bearing Steel |
| Rolling Element: | Cylindrical Roller | Misalignment: | No |
| Platform: | Cylindrical Thrust | Static Load Rating (lb): | 28, 740 lb |
| Full Complement/Caged: | Caged | Dynamic Load Rating (lb): | 28, 740 lb |
| Sealed: | None | Duplexing: | No |
| Separable: | Inner/Outer ring-both sides | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | Snap Ring: | No |
| Plate Thickness (in): | 0.25 in | Housing to Clear Radius (in): | 0.062 in |
| Housing Plate Bore (in): | 2.38 in | UPC: | 637410035713 |
| Weight: | 1.84 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 5 Inches | Packaged Height: | 1.9 Inches |
| HTC: | 8482.50.0000 | Country of Origin: | Mexico |
