- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
N 215 EM C3

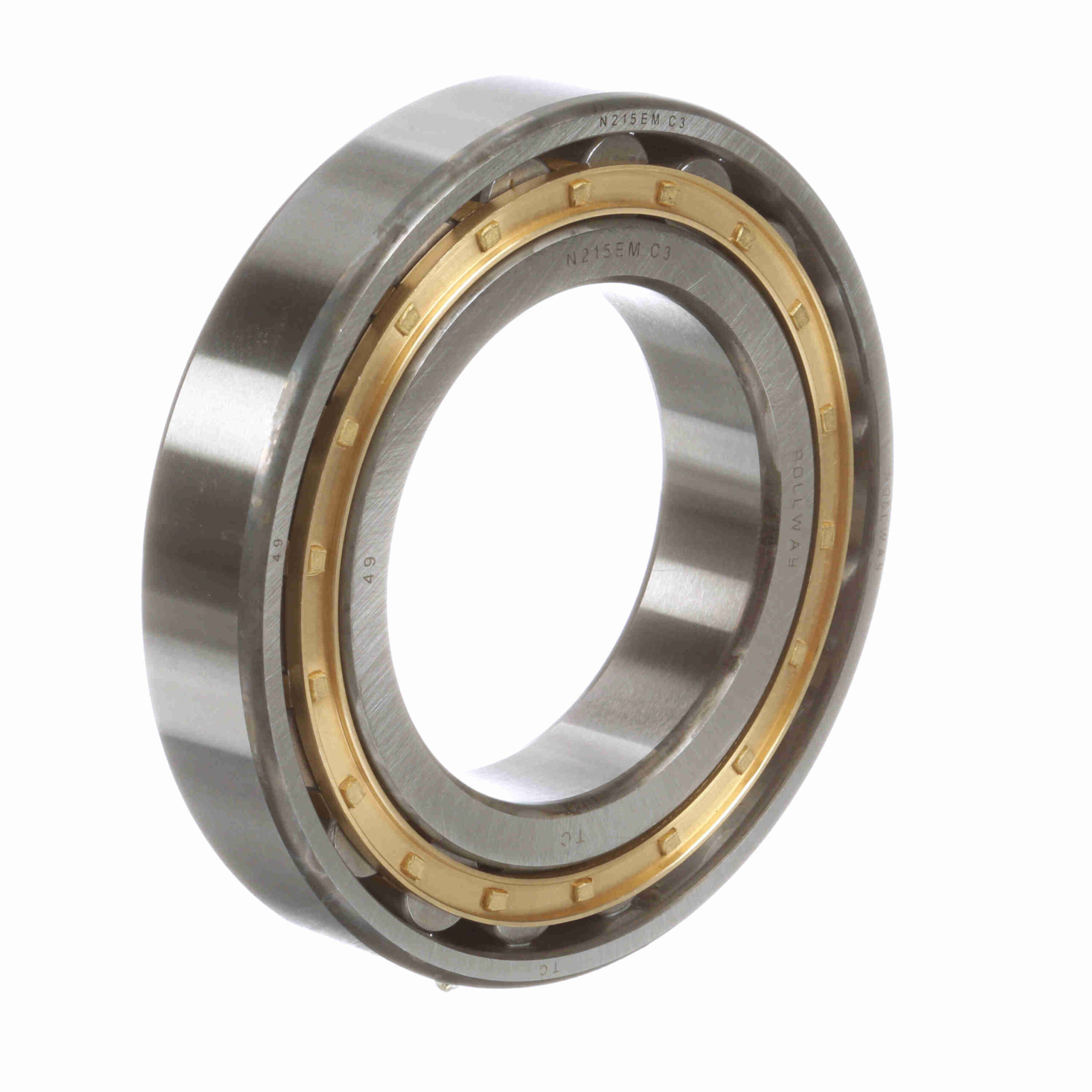

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – N 215 EM C3
$807.49
Out of stock
Out of stock
| Outer Race Configuration: | Separable Both Directions | Version: | EM: Extra capacity design - Machined brass retainer |
|---|---|---|---|
| Inner Race Configuration: | Non-Separable | Additional Information: | Suitable for radial loads only |
| Static Load Rating (kN): | 155 kN | Cage Material: | Brass |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Misalignment: | No | Number of Rows: | 1 |
| Radial Clearance: | C3 | Rolling Element: | Cylindrical Roller |
| Material: | High Chromium Bearing Steel | Speed [Max] Oil (RPM): | 5, 600 rpm |
| Duplexing: | No | Sealed: | None |
| Dynamic Load Rating (lb): | 29, 000 lb | Platform: | Cylindrical Radial |
| Speed [Max] Grease (RPM): | 4, 800 rpm | Static Load Rating (lb): | 34, 845 lb |
| Full Complement/Caged: | Caged | Retainer: | Yes |
| Snap Ring: | No | Separable: | Outer ring - both sides |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410080850 |
| Weight: | 2.76 LB | Packaged Length: | 5.12 Inches |
| Packaged Width: | 0.98 Inches | Packaged Height: | 5.12 Inches |
| Country of Origin: | China |
