- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NU 222 EM

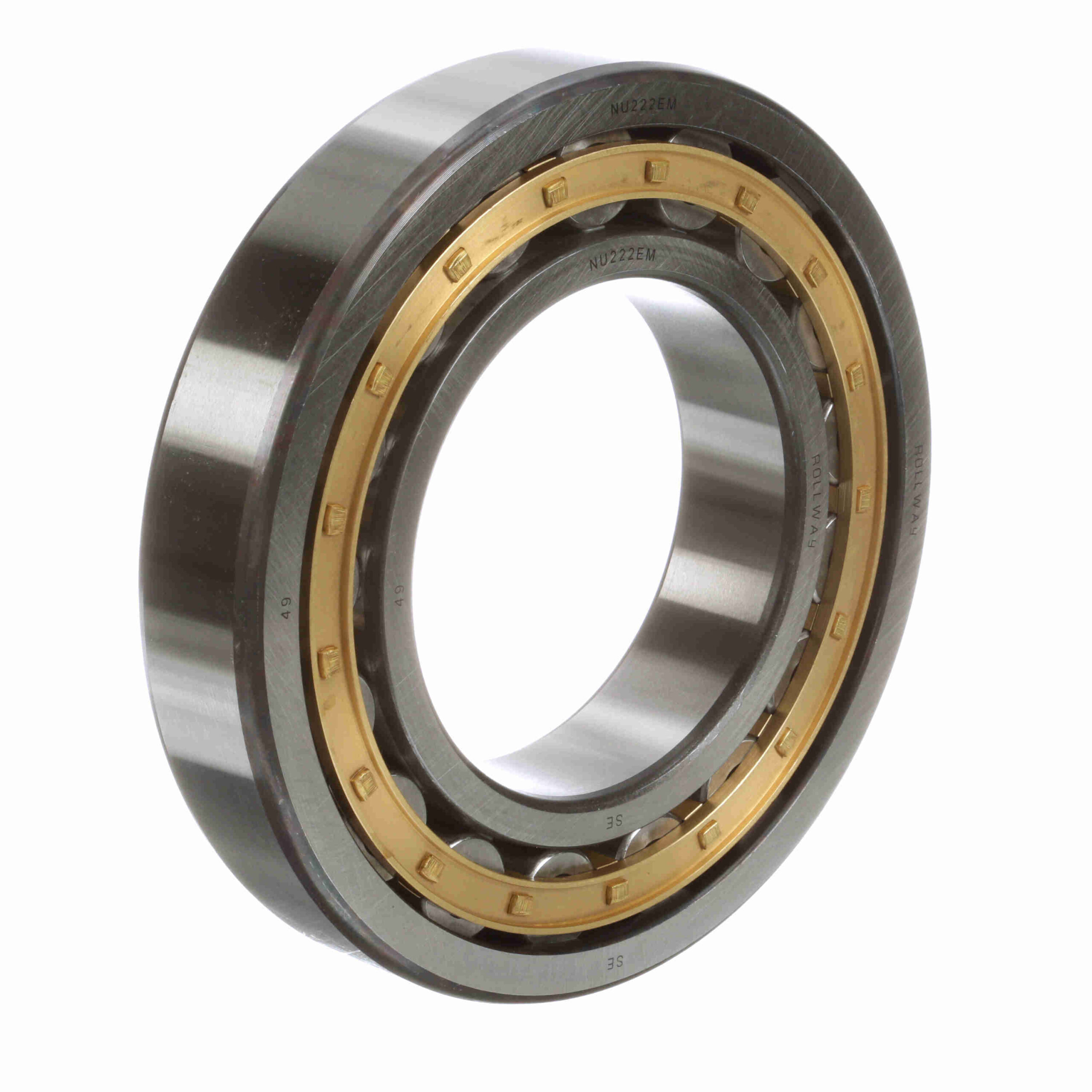

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 222 EM
$547.39
Out of stock
Out of stock
| Additional Information: | Suitable for radial loads only | Static Load Rating (kN): | 343 kN |
|---|---|---|---|
| Dynamic Load Rating (kN): | 279.001355195202 kN | Outer Race Configuration: | Non-Separable |
| Version: | EM: Extra capacity design - Machined brass retainer | Flanges: | (2) Flanges on Outer Ring |
| Inner Race Configuration: | Separable Both Directions | Seal Type: | Unsealed |
| Cage Material: | Brass | Bore Type: | Straight |
| Material: | High Chromium Bearing Steel | Misalignment: | No |
| Rolling Element: | Cylindrical Roller | Radial Clearance: | C0 |
| Number of Rows: | 1 | Speed [Max] Grease (RPM): | 3, 000 rpm |
| Static Load Rating (lb): | 77, 109 lb | Duplexing: | No |
| Sealed: | None | Full Complement/Caged: | Caged |
| Speed [Max] Oil (RPM): | 3, 600 rpm | Platform: | Cylindrical Radial |
| Dynamic Load Rating (lb): | 62, 722 lb | Retainer: | Yes |
| Separable: | Inner ring - both sides | Snap Ring: | No |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410081291 |
| Weight: | 11.70 LB | Packaged Length: | 8.6 Inches |
| Packaged Width: | 7.9 Inches | Packaged Height: | 2.2 Inches |
| Country of Origin: | China |
