- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS616

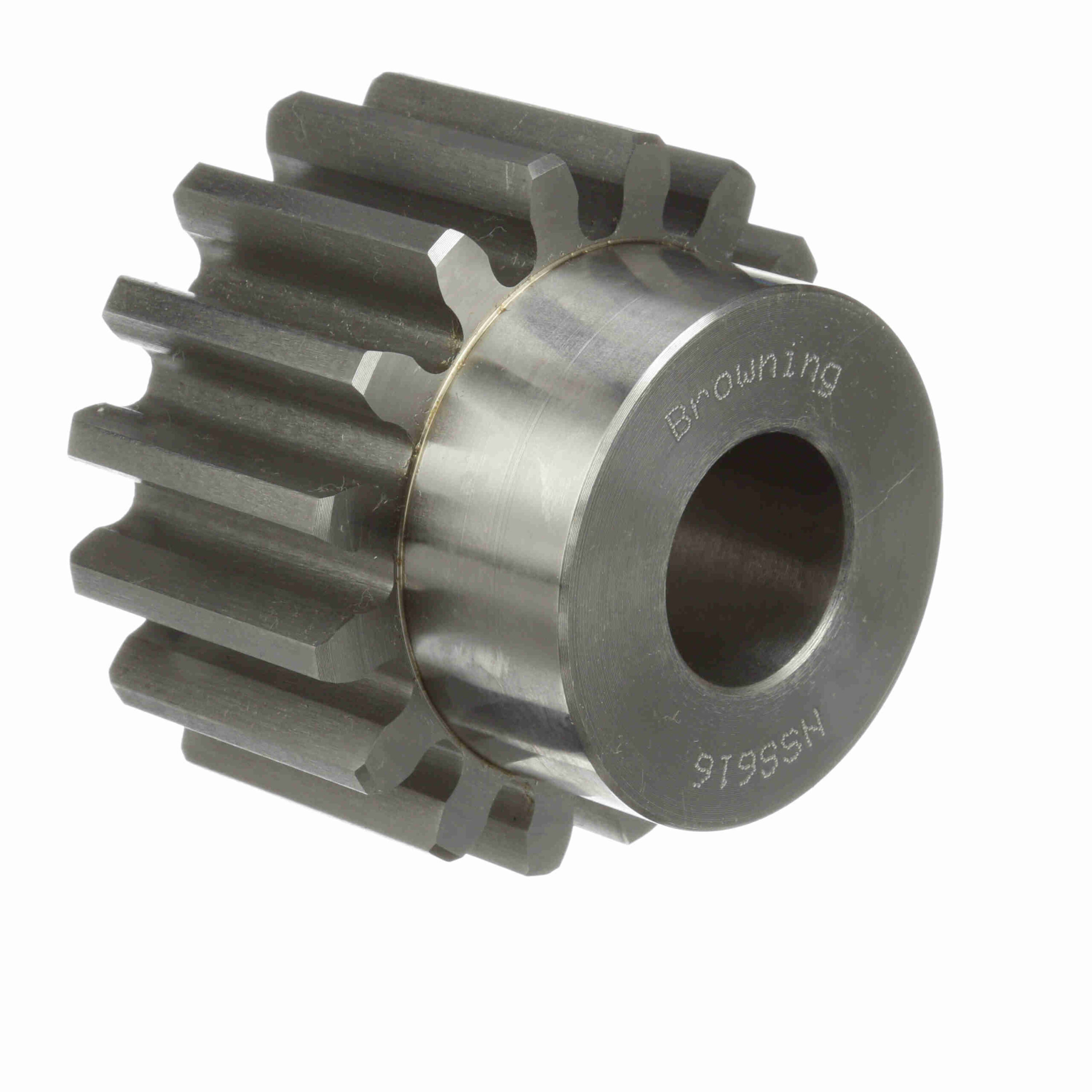

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 6 DP – NSS616
$268.74
Out of stock
Out of stock
| Number of Teeth/Threads: | 16 | Outside Diameter (in): | 3 in |
|---|---|---|---|
| Face Width (in): | 1.5 in | Hub Diameter (in): | 2.1563 in |
| Diametral Pitch: | 6 | Pitch Diameter (in): | 2.667 in |
| Material: | Steel | Pressure Angle: | 14.5 |
| Hub Projection (in): | 0.875 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 2.375 in | Bore (Min) (in): | 1 in |
| Bore (Max) (in): | 1.375 in | Bore Size (in): | 1 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.375 in |
| UPC: | 662289134021 | Weight: | 2.69 LB |
| Packaged Length: | 3.90 Inches | Packaged Width: | 3.60 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
