- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2472

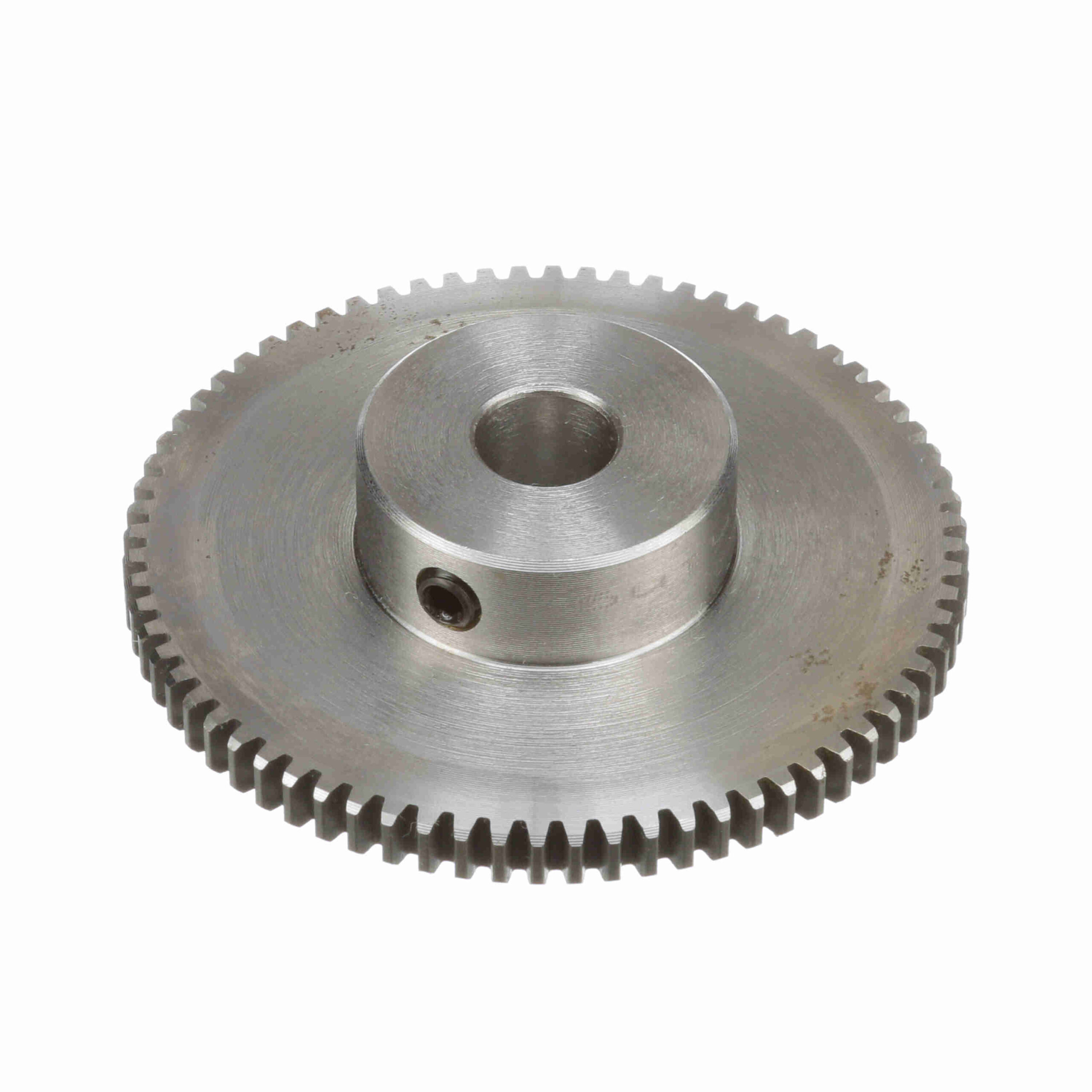

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 24 DP – NSS2472
$197.24
Out of stock
Out of stock
| Hub Projection (in): | 0.5 in | Diametral Pitch: | 24 |
|---|---|---|---|
| Face Width (in): | 0.25 in | Hub Diameter (in): | 1.375 in |
| Pressure Angle: | 14.5 | Pitch Diameter (in): | 3 in |
| Outside Diameter (in): | 3.08 in | Number of Teeth/Threads: | 72 |
| Material: | Steel | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 0.75 in | Bore (Min) (in): | 0.5 in |
| Bore (Max) (in): | 0.75 in | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 0.75 in | Standard Met: | AGMA |
| UPC: | 662289271665 | Weight: | 1.13 LB |
| Packaged Length: | 3.70 Inches | Packaged Width: | 3.80 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
