- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1636

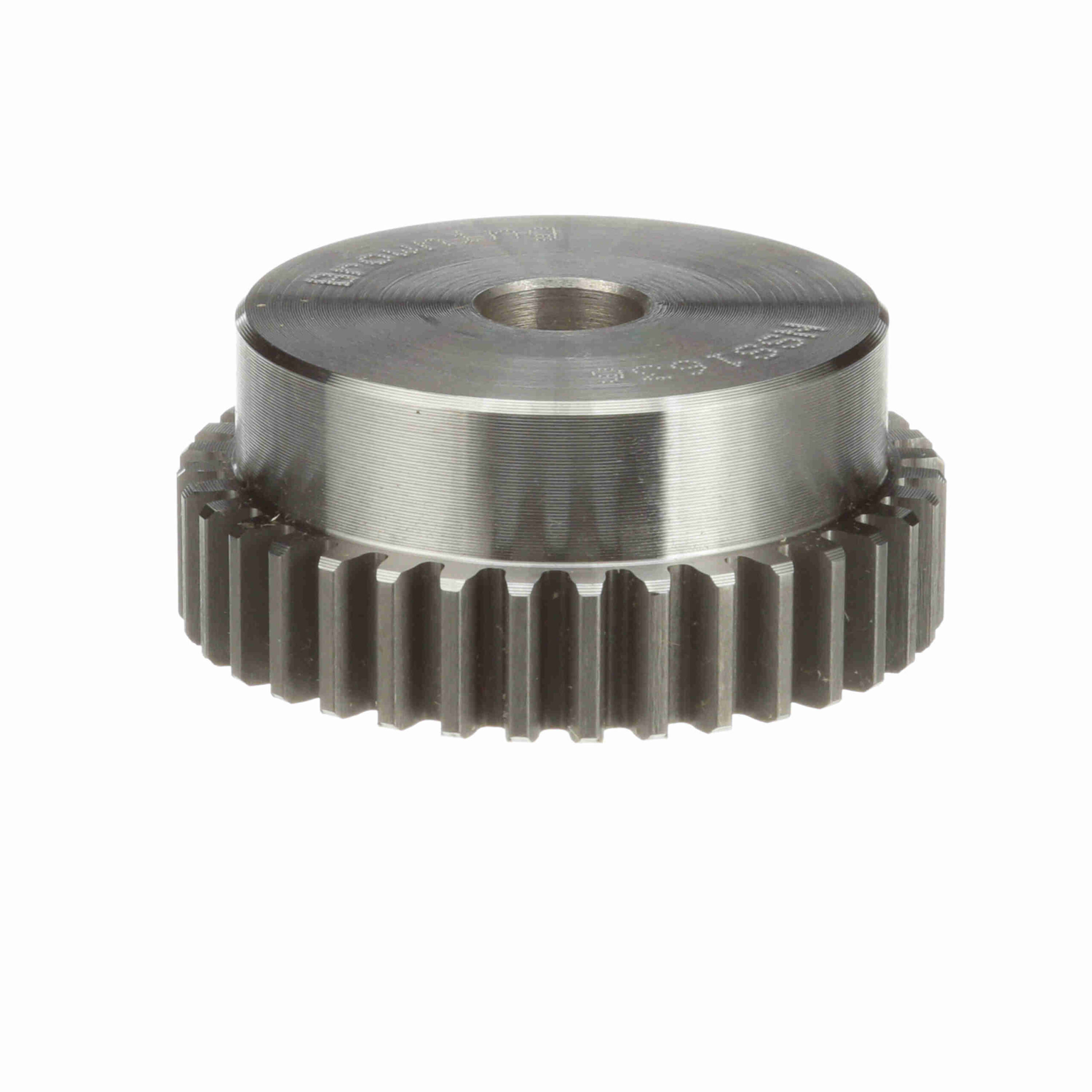

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 16 DP – NSS1636
$132.32
Out of stock
Out of stock
| Outside Diameter (in): | 2.37 in | Pressure Angle: | 14.5 |
|---|---|---|---|
| Material: | Steel | Pitch Diameter (in): | 2.25 in |
| Number of Teeth/Threads: | 36 | Hub Diameter (in): | 2 in |
| Diametral Pitch: | 16 | Hub Projection (in): | 0.5 in |
| Face Width (in): | 0.5 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.25 in | Length Through Bore (in): | 1 in |
| Bore (Min) (in): | 0.5 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1 in |
| UPC: | 662289192366 | Weight: | 0.98 LB |
| Packaged Length: | 2.90 Inches | Packaged Width: | 2.50 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
