- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS50P23

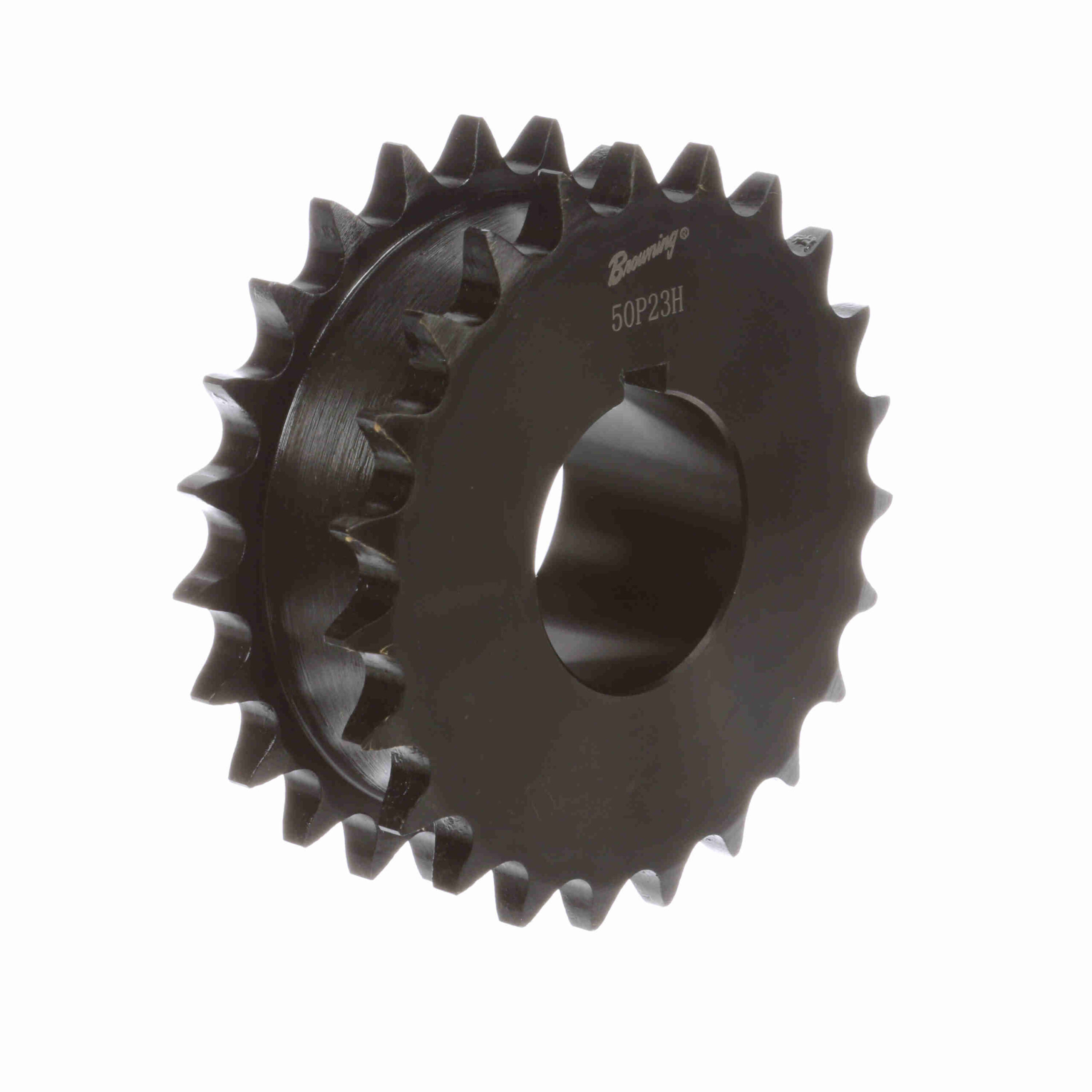

Browning Steel Bushed Bore Roller Chain Sprocket – DS50P23
$412.95
Out of stock
Out of stock
| Bore (Max) (in): | 1.75 in | Number of teeth: | 23 |
|---|---|---|---|
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore (Min) (in): | 0.5 in |
| Product Type: | Bushed Roller Chain Sprocket | Chain Pitch (in): | 0.625 in |
| Bushing Used: | Split Taper | Pitch Diameter (in): | 4.59 in |
| Material: | Steel | Overall Length (in): | 2.46875 in |
| Tooth Width (in): | 0.343 in | Sprocket Material: | Steel |
| Outside Diameter (in): | 4.922 in | Length Through Bore (in): | 1.9375 in |
| Bore Type: | Bushed Bore | Hub Diameter (in): | 3 in |
| Hub Type: | Bushed | Bushing Bore (Max) (in): | 1.75 in |
| Number of Strands/Width: | 2 | Bushing Bore (Min) (in): | 0.5 in |
| Hardened Teeth: | Yes | Pitch Type: | Single |
| UPC: | 662289128471 | Weight: | 4.96 LB |
| Packaged Length: | 5.06 Inches | Packaged Width: | 5.06 Inches |
| Packaged Height: | 1.88 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
