- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2448

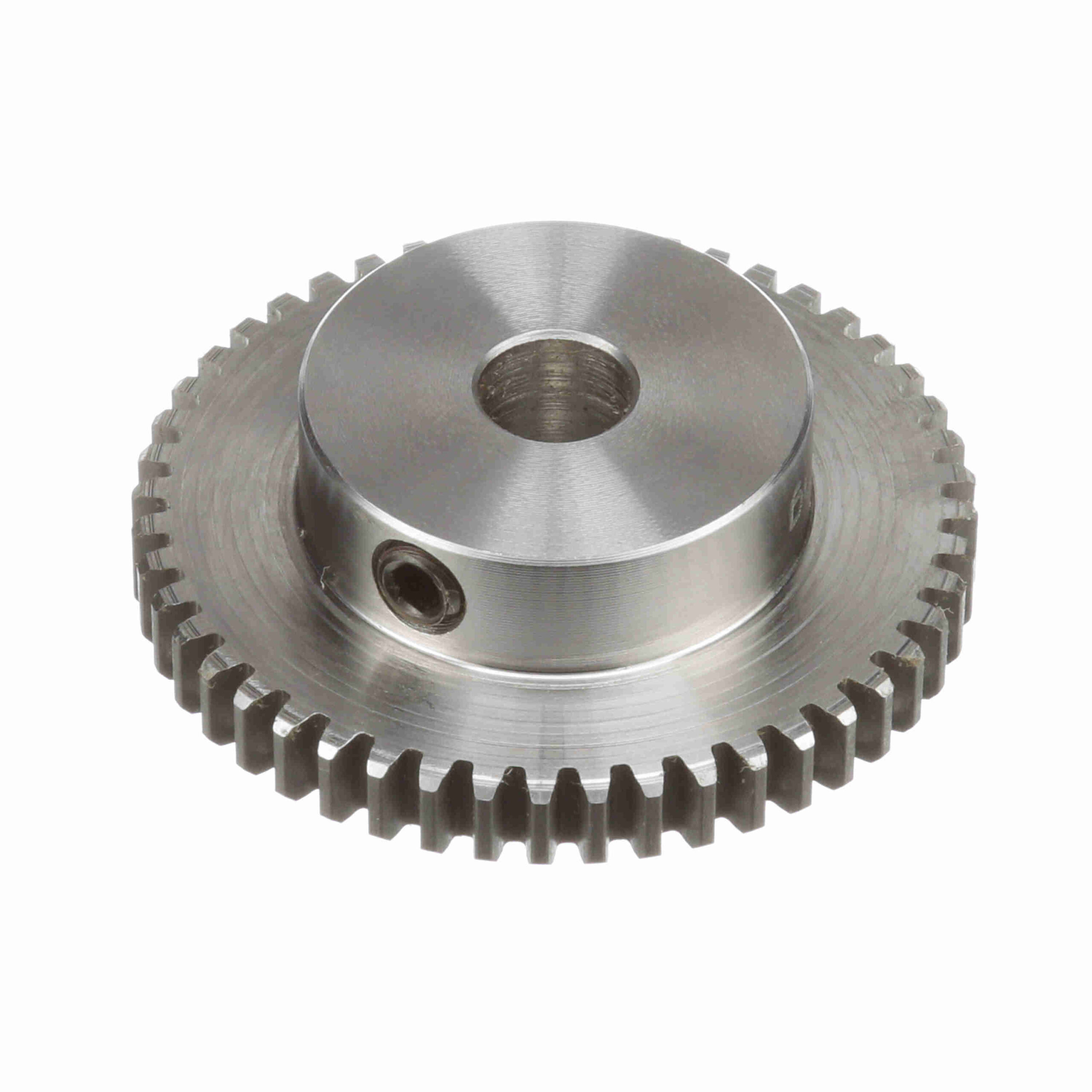

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 24 DP – NSS2448
$132.66
Out of stock
Out of stock
| Hub Projection (in): | 0.375 in | Face Width (in): | 0.25 in |
|---|---|---|---|
| Hub Diameter (in): | 1.25 in | Pitch Diameter (in): | 2 in |
| Diametral Pitch: | 24 | Material: | Steel |
| Pressure Angle: | 14.5 | Outside Diameter (in): | 2.08 in |
| Number of Teeth/Threads: | 48 | Bore (Min) (in): | 0.375 in |
| Bore (Max) (in): | 0.625 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 0.625 in | Bore Size (in): | 0.375 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 0.625 in | Standard Met: | AGMA |
| UPC: | 662289121649 | Weight: | 0.36 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.70 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
