- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2040

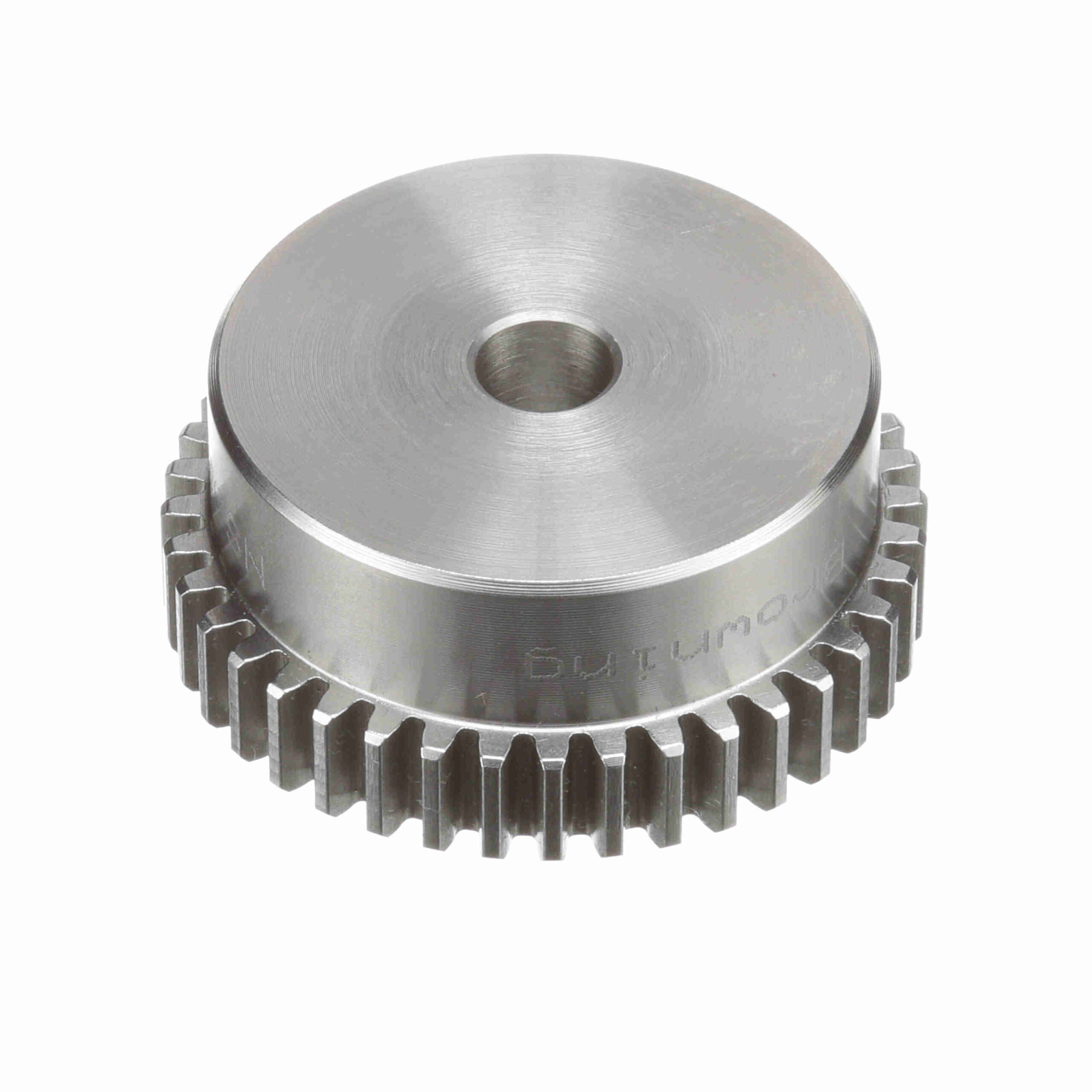

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 20 DP – NSS2040
$116.12
Out of stock
Out of stock
| Diametral Pitch: | 20 | Hub Projection (in): | 0.5 in |
|---|---|---|---|
| Hub Diameter (in): | 1.8125 in | Pressure Angle: | 14.5 |
| Number of Teeth/Threads: | 40 | Material: | Steel |
| Pitch Diameter (in): | 2 in | Face Width (in): | 0.375 in |
| Outside Diameter (in): | 2.1 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1 in | Bore (Min) (in): | 0.375 in |
| Length Through Bore (in): | 0.875 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.375 in | Hub Type: | Type B |
| Overall Length (in): | 0.875 in | Standard Met: | AGMA |
| UPC: | 662289281909 | Weight: | 0.70 LB |
| Packaged Length: | 2.90 Inches | Packaged Width: | 2.60 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
