- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS50P24

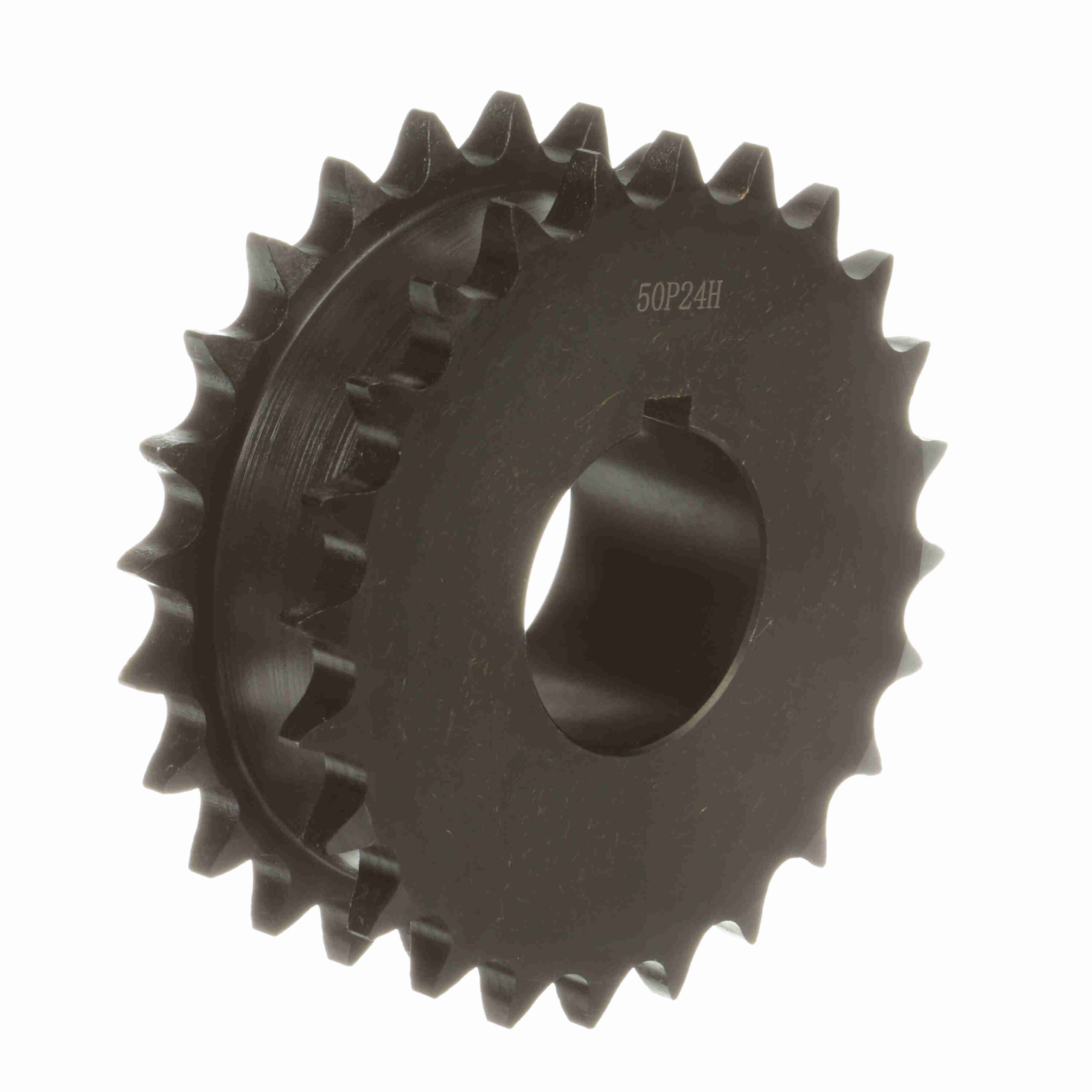

Browning Steel Bushed Bore Roller Chain Sprocket – DS50P24
$554.46
Out of stock
Out of stock
| Chain Pitch (in): | 0.625 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Material: | Steel | Number of teeth: | 24 |
| Pitch Diameter (in): | 4.788 in | Bore (Min) (in): | 0.5 in |
| Bore (Max) (in): | 1.75 in | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
| Bushing Used: | Split Taper | Bore Type: | Bushed Bore |
| Length Through Bore (in): | 1.9375 in | Overall Length (in): | 2.46875 in |
| Hub Type: | Bushed | Tooth Width (in): | 0.343 in |
| Sprocket Material: | Steel | Hub Diameter (in): | 3 in |
| Outside Diameter (in): | 5.12 in | Bushing Bore (Max) (in): | 1.75 in |
| Number of Strands/Width: | 2 | Bushing Bore (Min) (in): | 0.5 in |
| Pitch Type: | Single | Hardened Teeth: | Yes |
| UPC: | 662289258406 | Weight: | 6.06 LB |
| Packaged Length: | 6.40 Inches | Packaged Width: | 6.20 Inches |
| Packaged Height: | 2.60 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
