- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1684

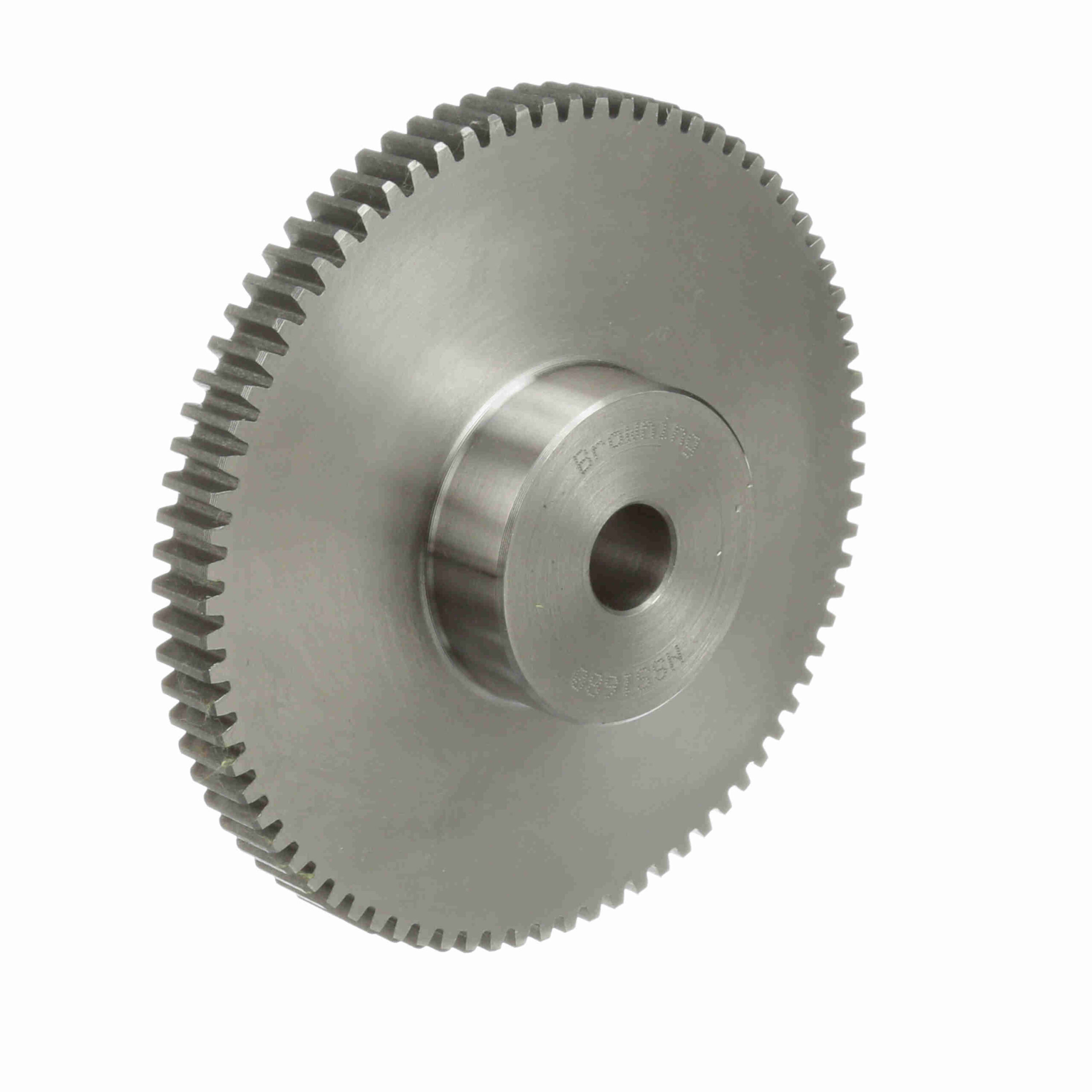

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 16 DP – NSS1684
Out of stock
| Outside Diameter (in): | 5.37 in | Pitch Diameter (in): | 5.25 in |
|---|---|---|---|
| Pressure Angle: | 14.5 | Material: | Steel |
| Hub Projection (in): | 0.625 in | Face Width (in): | 0.5 in |
| Diametral Pitch: | 16 | Hub Diameter (in): | 2 in |
| Number of Teeth/Threads: | 84 | Bore (Min) (in): | 0.625 in |
| Bore (Max) (in): | 1.25 in | Length Through Bore (in): | 1.125 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 0.625 in | Hub Type: | Type B |
| Overall Length (in): | 1.125 in | Standard Met: | AGMA |
| UPC: | 662289142545 | Weight: | 3.60 LB |
| Packaged Length: | 5.56 Inches | Packaged Width: | 5.56 Inches |
| Packaged Height: | 1.31 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
