- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG2084

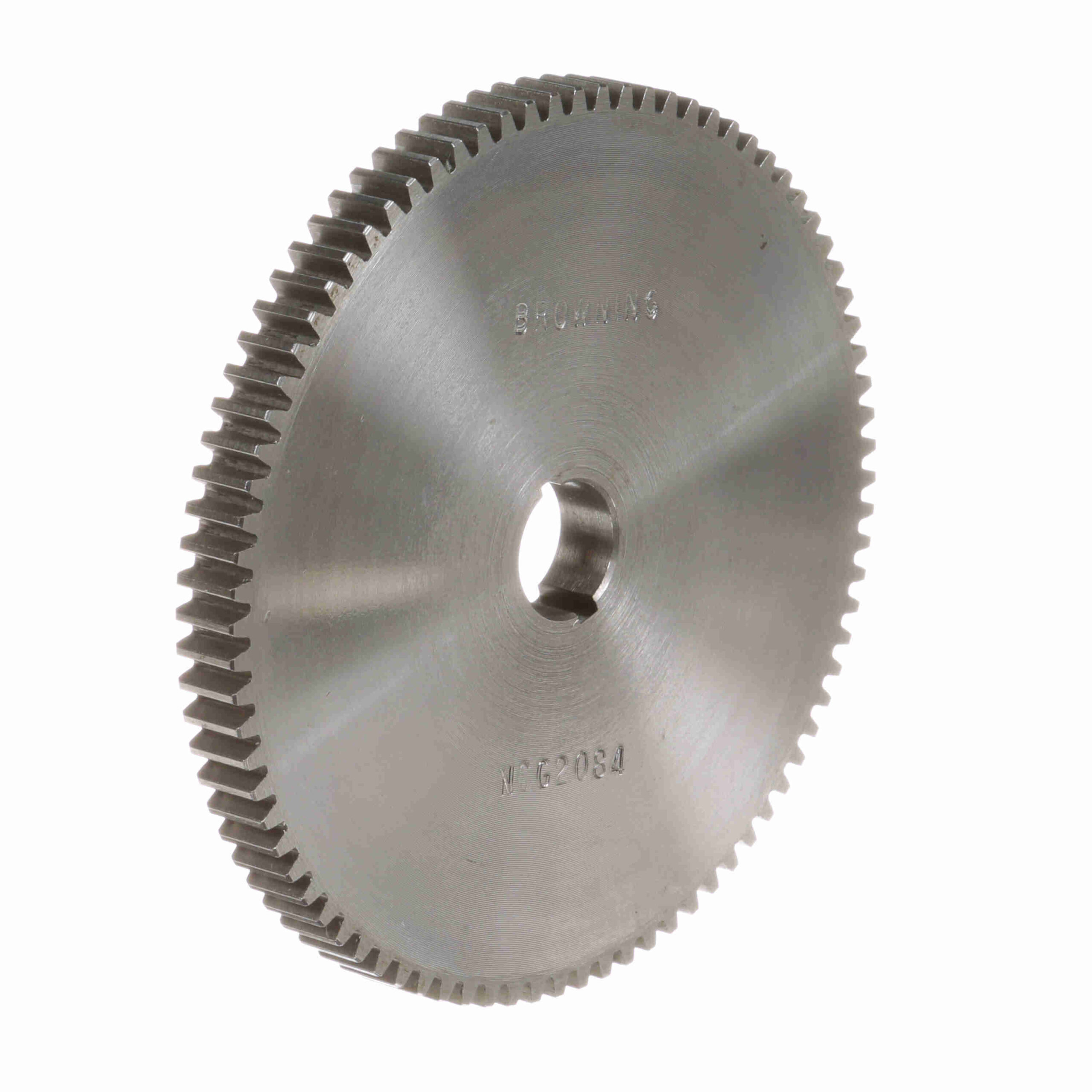

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 20 DP – NCG2084
Out of stock
| Number of Teeth/Threads: | 84 | Material: | Steel |
|---|---|---|---|
| Face Width (in): | 0.375 in | Pressure Angle: | 14.5 |
| Pitch Diameter (in): | 4.2 in | Outside Diameter (in): | 4.3 in |
| Diametral Pitch: | 20 | Bore (Min) (in): | 0.625 in |
| Length Through Bore (in): | 0.375 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 0.625 in | Bore Size (in): | 0.625 in |
| Product Type: | Change Gear | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289042036 |
| Weight: | 1.51 LB | Packaged Length: | 5.80 Inches |
| Packaged Width: | 5.70 Inches | Packaged Height: | 1.00 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
