- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1260

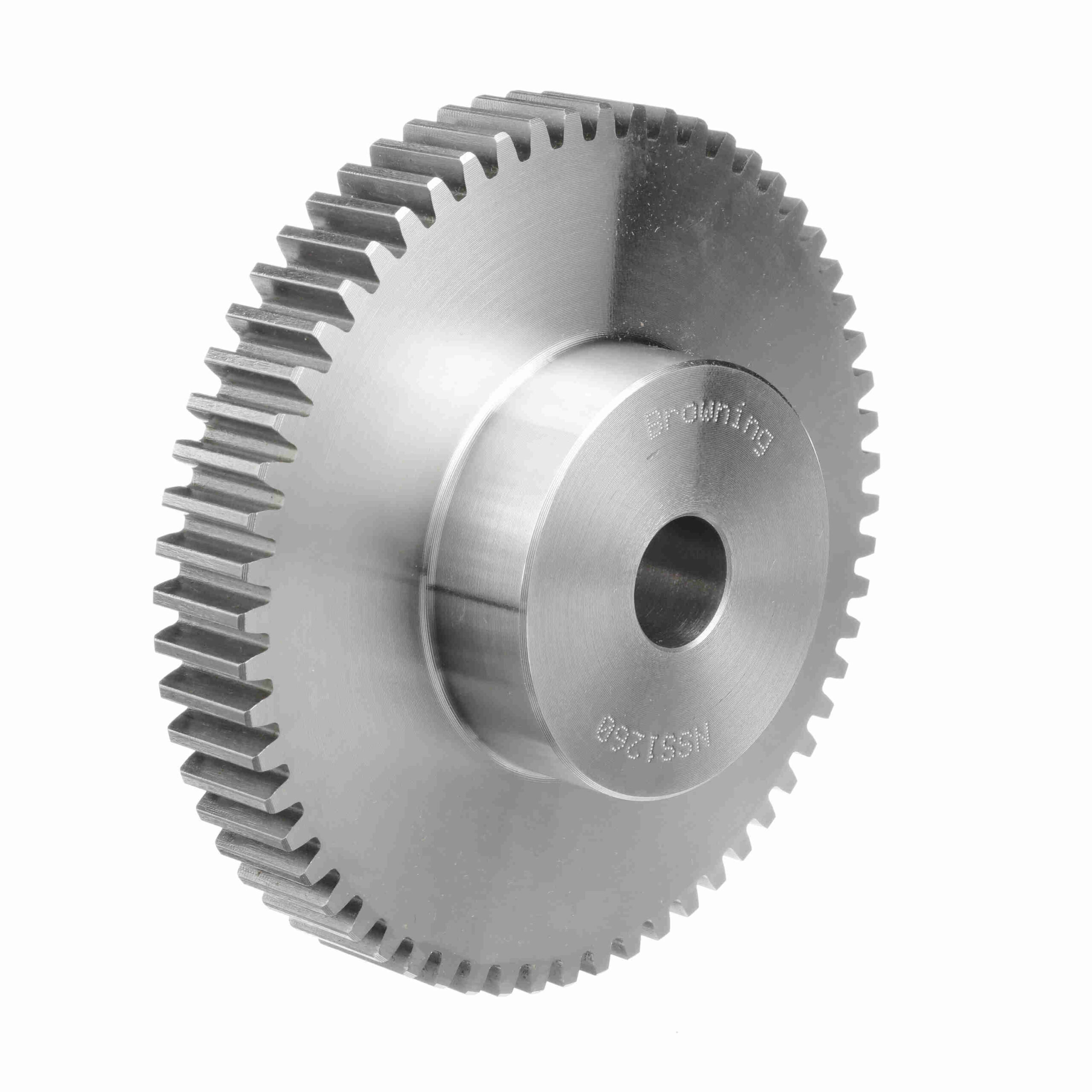

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 12 DP – NSS1260
$251.32
Out of stock
Out of stock
| Diametral Pitch: | 12 | Hub Projection (in): | 0.75 in |
|---|---|---|---|
| Face Width (in): | 0.75 in | Pressure Angle: | 14.5 |
| Outside Diameter (in): | 5.16 in | Hub Diameter (in): | 2.5 in |
| Number of Teeth/Threads: | 60 | Material: | Steel |
| Pitch Diameter (in): | 5 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.625 in | Length Through Bore (in): | 1.5 in |
| Bore (Min) (in): | 0.75 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Overall Length (in): | 1.5 in | Standard Met: | AGMA |
| UPC: | 662289142903 | Weight: | 5.08 LB |
| Packaged Length: | 6.30 Inches | Packaged Width: | 6.00 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
