- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
14HG150

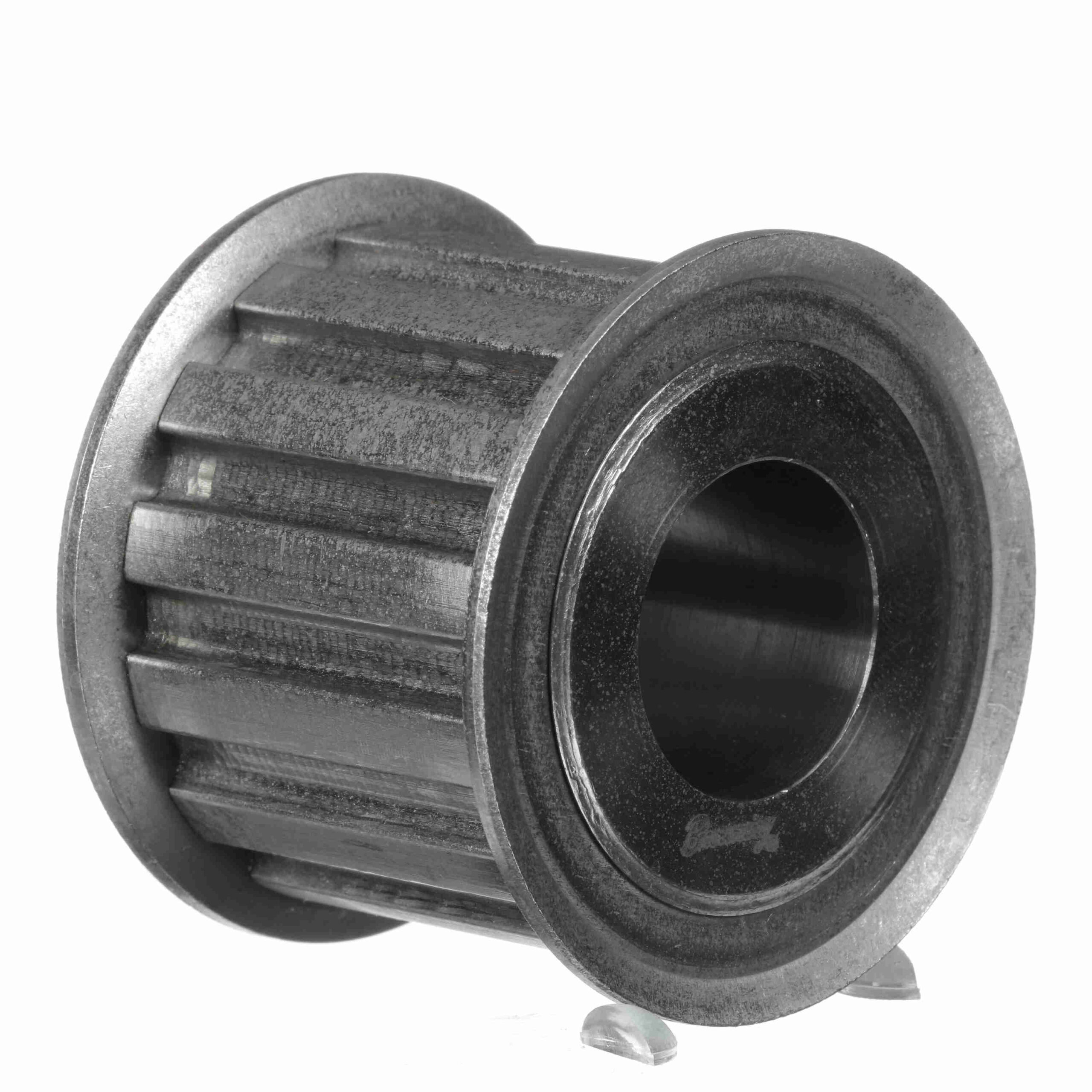

Browning Steel Bushed Bore Gearbelt Pulley – 14HG150
$266.76
Out of stock
Out of stock
| Bore Range: | 3/8 to 1 | Number of teeth: | 14 |
|---|---|---|---|
| Product Type: | Gearbelt Pulley | Width (mm): | 38.1 mm |
| Bore Type: | Bushed Bore | Material: | Steel |
| Pitch Diameter (in): | 2.228 in | Outside Diameter (in): | 2.174 in |
| Flange (in): | 2.477 in | Outside Diameter (mm): | 55.2196 mm |
| Belt Section: | H | Width (in): | 1.5 in |
| Face Width: | 1.8125 | Hub Diameter (in): | 2 in |
| Pulley Construction: | Solid | Length Through Bore: | 1 |
| Hub Projection: | 0.73525 | Overall Length (in): | 2.54725 in |
| Number of Hubs: | 1 | With Flanges: | With Flanges |
| UPC: | 662289263912 | Weight: | 1.26 LB |
| Packaged Length: | 2.56 Inches | Packaged Width: | 2.56 Inches |
| Packaged Height: | 1.94 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
