- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

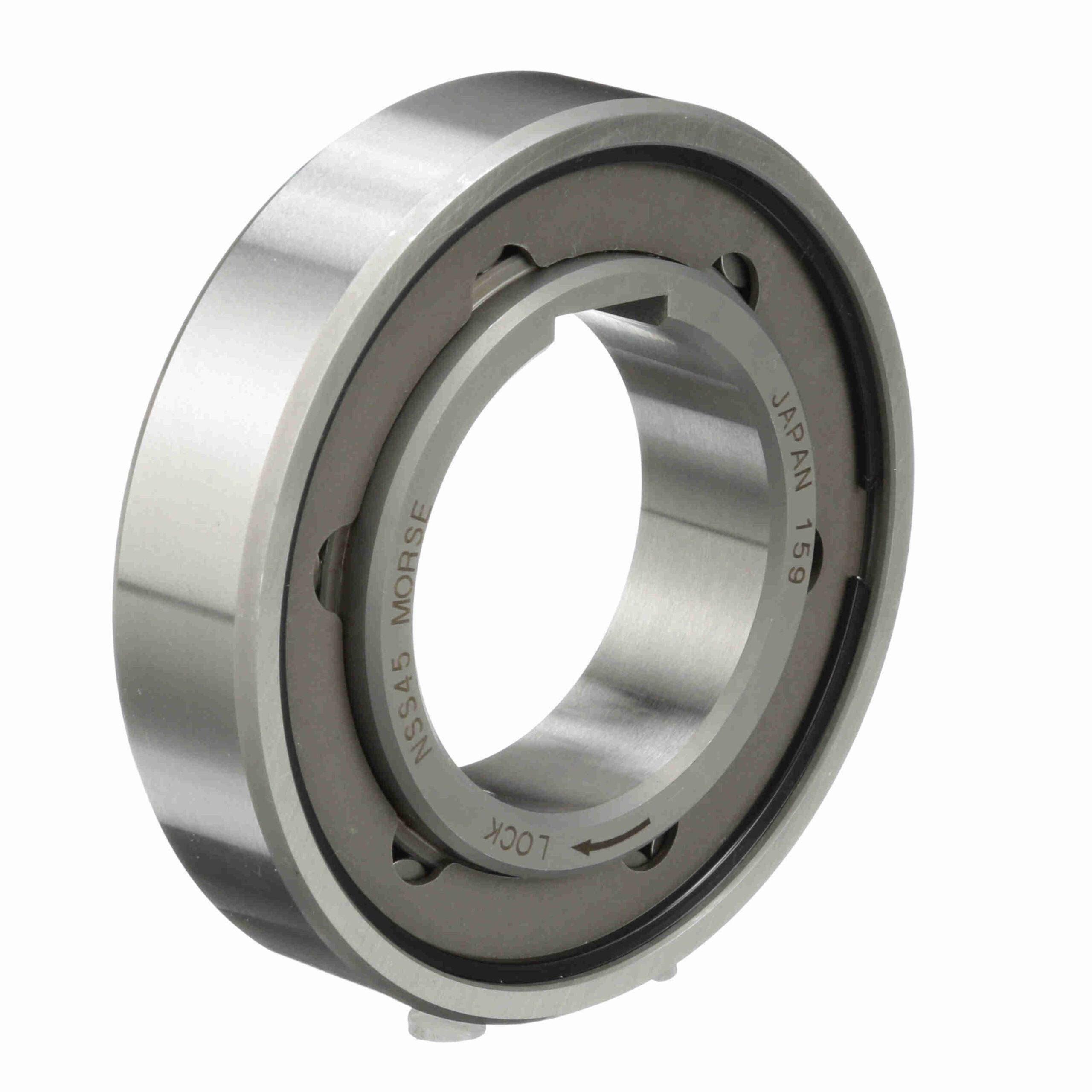

NSS-45 CLUTCH
Morse NSS Series CAM Clutch – NSS-45 CLUTCH
$1,904.95
Out of stock
Out of stock
| Maximum Overrunning Speed - Inner Race (rpm): | 1, 300 | Drag Torque (lb-in): | 1.8588 |
|---|---|---|---|
| Rated Torque Capacity (N-m): | 347 | Drag Torque (N-m): | .21 |
| Maximum Overrunning Speed - Outer Race (rpm): | 650 | Keyway (mm): | 14 x 2.1 mm |
| Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. | Rated Torque Capacity (ft.-lbs.): | 255.9 |
| Model: | NSS 45 | Type: | CAM Clutches |
| Keyway (in): | 0.55 x 0.08 in | Add'l Bearing Support Requirement: | Yes |
| Backstopping Clutch: | No | Indexing Clutch: | Yes |
| Bore Size (in): | 1.771648 in | Product Type: | NSS Series |
| Overrunning Clutch: | Yes | Bore Size (mm): | 45 mm |
| UPC: | 662460387727 | Weight: | 1.07 LB |
| Packaged Length: | 3.50 Inches | Packaged Width: | 3.40 Inches |
| Packaged Height: | 1.00 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
