- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

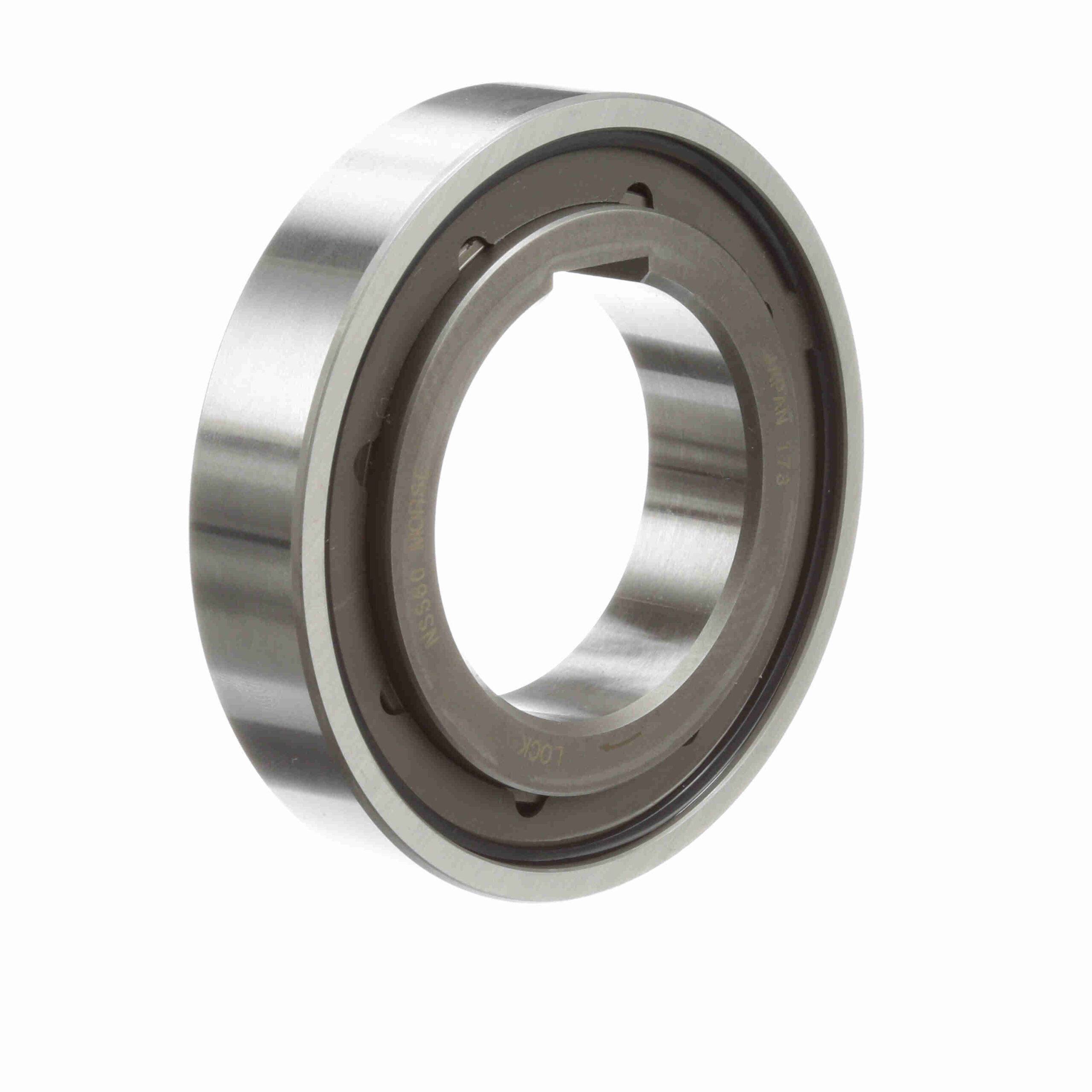

NSS-60 CLUTCH
Morse NSS Series CAM Clutch – NSS-60 CLUTCH
$2,624.74
Out of stock
Out of stock
| Drag Torque (N-m): | .33 | Maximum Overrunning Speed - Outer Race (rpm): | 460 |
|---|---|---|---|
| Keyway (mm): | 18 x 2.3 mm | Rated Torque Capacity (ft.-lbs.): | 478.7 |
| Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. | Type: | CAM Clutches |
| Drag Torque (lb-in): | 2.9208 | Rated Torque Capacity (N-m): | 649 |
| Maximum Overrunning Speed - Inner Race (rpm): | 910 | Keyway (in): | 0.71 x 0.09 in |
| Model: | NSS 60 | Add'l Bearing Support Requirement: | Yes |
| Indexing Clutch: | Yes | Product Type: | NSS Series |
| Bore Size (in): | 2.362198 in | Backstopping Clutch: | No |
| Overrunning Clutch: | Yes | Bore Size (mm): | 60 mm |
| UPC: | 662460387741 | Weight: | 2.55 LB |
| Packaged Length: | 5.40 Inches | Packaged Width: | 5.20 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
