- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

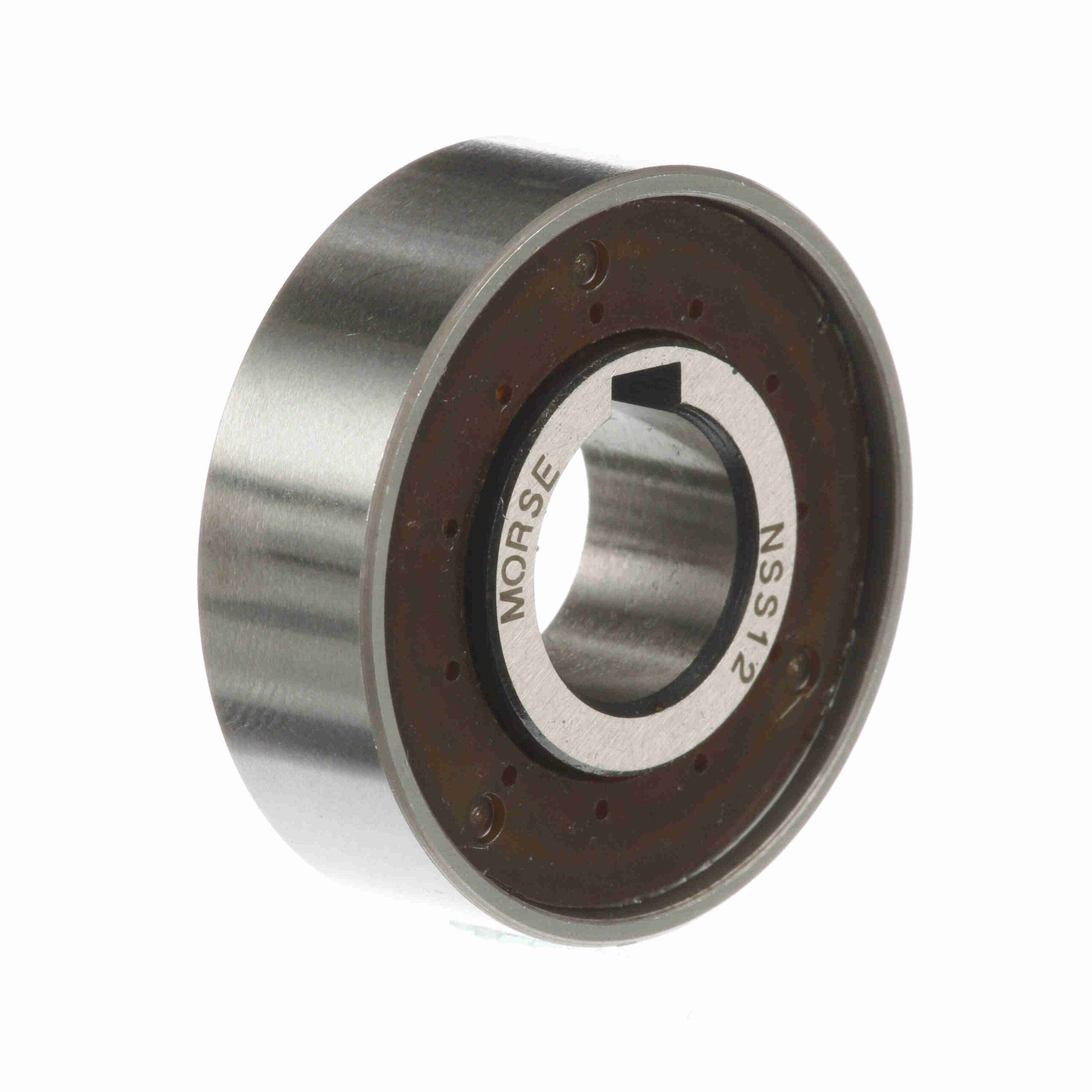

NSS-12 CLUTCH
Morse NSS Series CAM Clutch – NSS-12 CLUTCH
$801.57
Out of stock
Out of stock
| Drag Torque (lb-in): | .0792 | Keyway (in): | 0.16 x 0.07 in |
|---|---|---|---|
| Rated Torque Capacity (ft.-lbs.): | 12.5 | Keyway (mm): | 4 x 1.8 mm |
| Maximum Overrunning Speed - Outer Race (rpm): | 2, 000 | Rated Torque Capacity (N-m): | 17 |
| Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. | Model: | NSS 12 |
| Type: | CAM Clutches | Maximum Overrunning Speed - Inner Race (rpm): | 4, 000 |
| Drag Torque (N-m): | .009 | Add'l Bearing Support Requirement: | Yes |
| Product Type: | NSS Series | Backstopping Clutch: | No |
| Overrunning Clutch: | Yes | Bore Size (in): | 0.47244 in |
| Indexing Clutch: | Yes | Bore Size (mm): | 12 mm |
| UPC: | 662460387659 | Weight: | 0.11 LB |
| Packaged Length: | 2.60 Inches | Packaged Width: | 2.50 Inches |
| Packaged Height: | 1.20 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
