- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NPL-16T

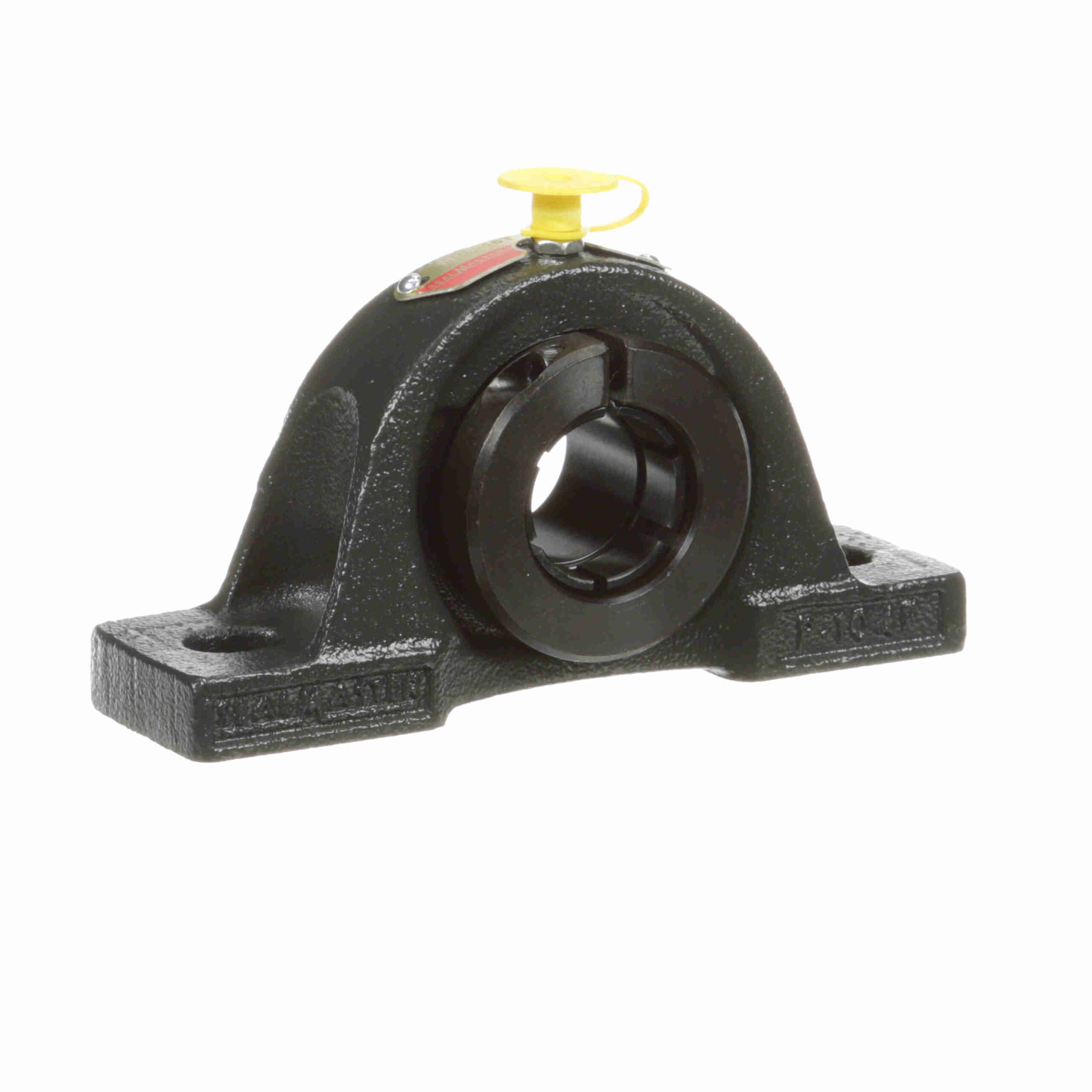

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – NPL-16T
$114.88
Out of stock
Out of stock
| Housing Material: | Cast Iron | Insert No.: | 2-1T |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Housing Type: | Pillow Block; Two Bolt; Low Base |
| Seal Type: | Felt Labyrinth Seal | Rolling Element: | Ball Bearing |
| Measure Units: | Inch | Expansion: | No |
| Speed (Max): | 9000 | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Retainer Type: | Land Riding Retainer | Duty Series: | Standard Duty |
| Internal Clearance: | Standard | Housing Base: | Solid |
| Bore Shape: | Straight | Locking Type: | Concentric |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| UPC: | 662461030509 | Weight: | 2.18 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
