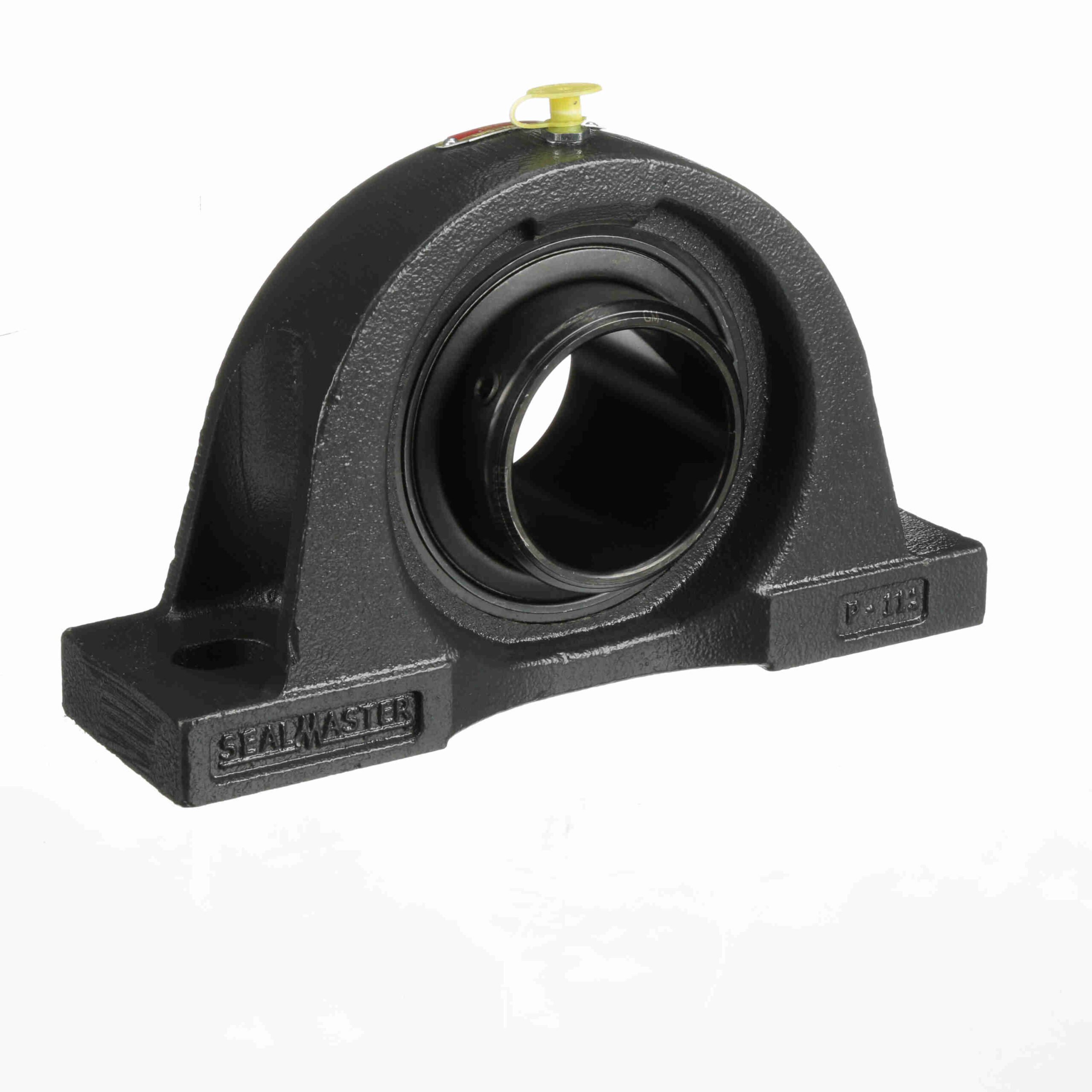

NPD-39

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Housing Base:	Solid	Rolling Element:	Ball Bearing
Duty Series:	Standard Duty	Housing Material:	Cast Iron
Expansion:	No	Housing Type:	Pillow Block; Two Bolt
Maximum Operating Temperature:	220 °F	Measure Units:	Inch
Speed (Max):	4100	Seal Type:	Felt Labyrinth Seal
Retainer Type:	Land Riding Retainer	Insert Material:	52100 Bearing Steel; Black Oxided
Insert No.:	2-27D	Internal Clearance:	Standard
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	11, 789
Misalignment:	±2.0° Misalignment - Static Only	Locking Type:	Double Setscrew
Housing Construction:	One Piece	Lubrication:	Lithium Complex NLGI 2 Grease
Inner-Race Heat-Treat Method:	Zone-Hardened	Relubricatable:	Yes
End Cap:	No	Bearing Insert Coating:	Black Oxide Coated
Replaceable Insert:	Yes	Platform:	Gold Line Ball Bearing
Housing Color:	Gray	Outer Ring Land Profile:	Standard
Misalignment Type:	Static Only	Radial Static Load Capacity (lb):	8, 150
UPC:	662461015551	Weight:	14.29 LB
Packaged Length:	6.5 Inches	Packaged Width:	10.38 Inches
Packaged Height:	3 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
