- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NPD-31

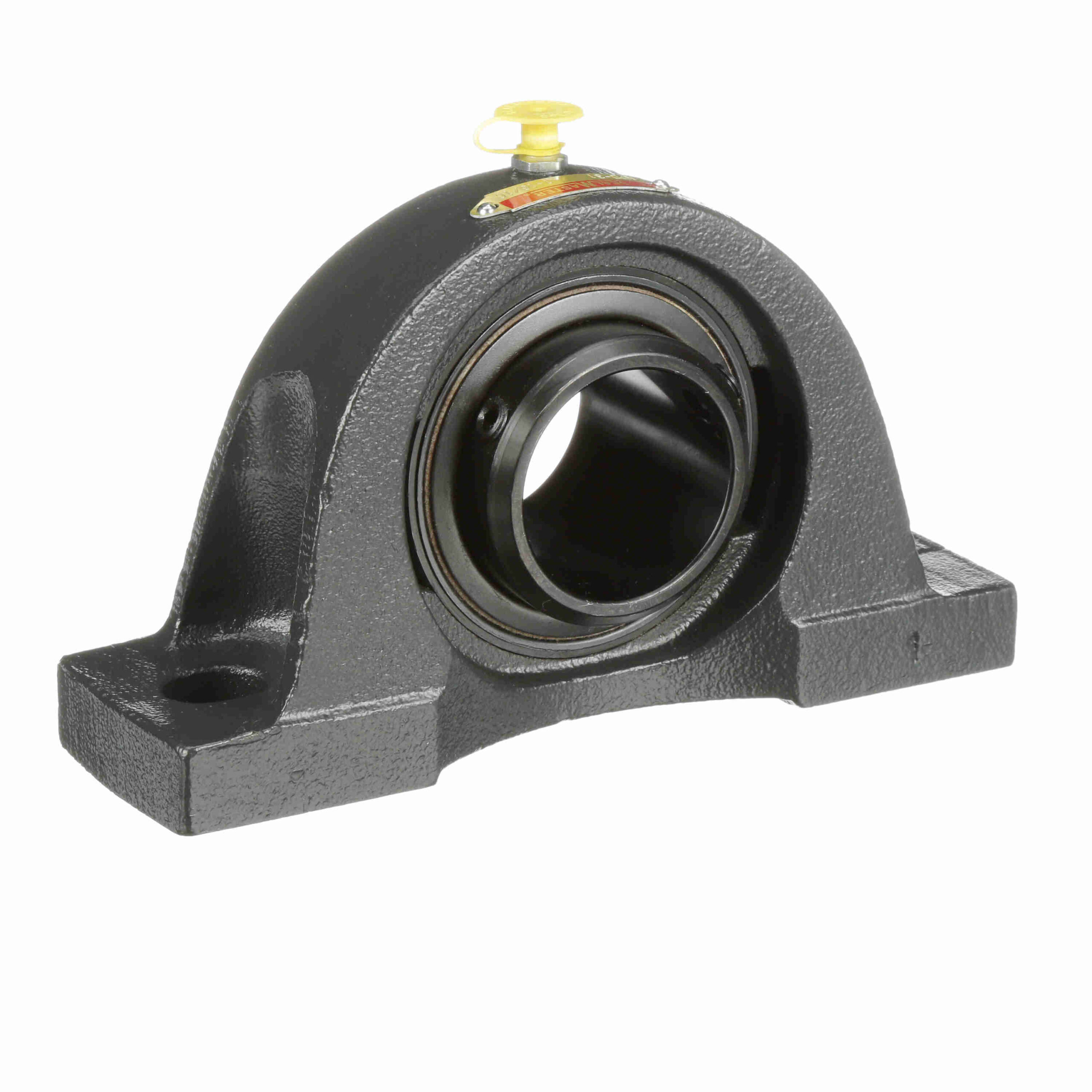

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – NPD-31
$333.12
Out of stock
Out of stock
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel; Black Oxided |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Internal Clearance: | Standard |
| Speed (Max): | 5000 | Insert No.: | 2-115D |
| Housing Type: | Pillow Block; Two Bolt | Rolling Element: | Ball Bearing |
| Expansion: | No | Retainer Type: | Land Riding Retainer |
| Housing Base: | Solid | Maximum Operating Temperature: | 220 °F |
| Measure Units: | Inch | Duty Series: | Standard Duty |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 889 |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Double Setscrew |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | Radial Static Load Capacity (lb): | 5, 216 |
| UPC: | 662461015490 | Weight: | 8.39 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
