- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NPD-15

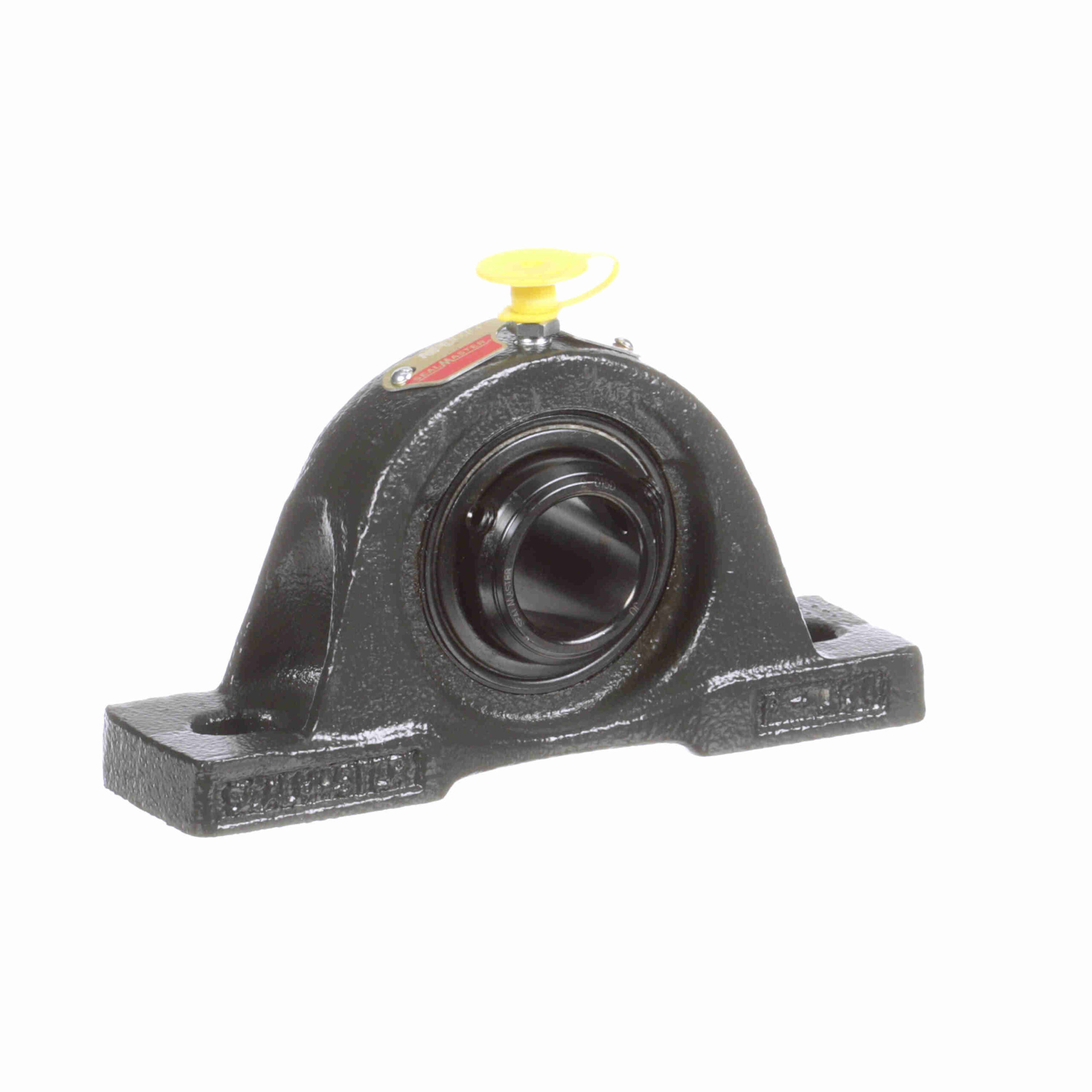

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – NPD-15
$320.98
Out of stock
Out of stock
| Internal Clearance: | Standard | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Maximum Speed (RPM): | 9000 rpm | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Locking Type: | Double Setscrew |
| Housing Style: | Pillow Block | Fixed vs. Expansion: | Fixed |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Duty/Series: | Standard Duty |
| Housing Type: | Pillow Block, Two Bolt | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | 2-015D |
| Ability to Relubricate: | Yes | UPC: | 662461000000 |
| Weight: | 2.25 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.75 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
