- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NP-31T

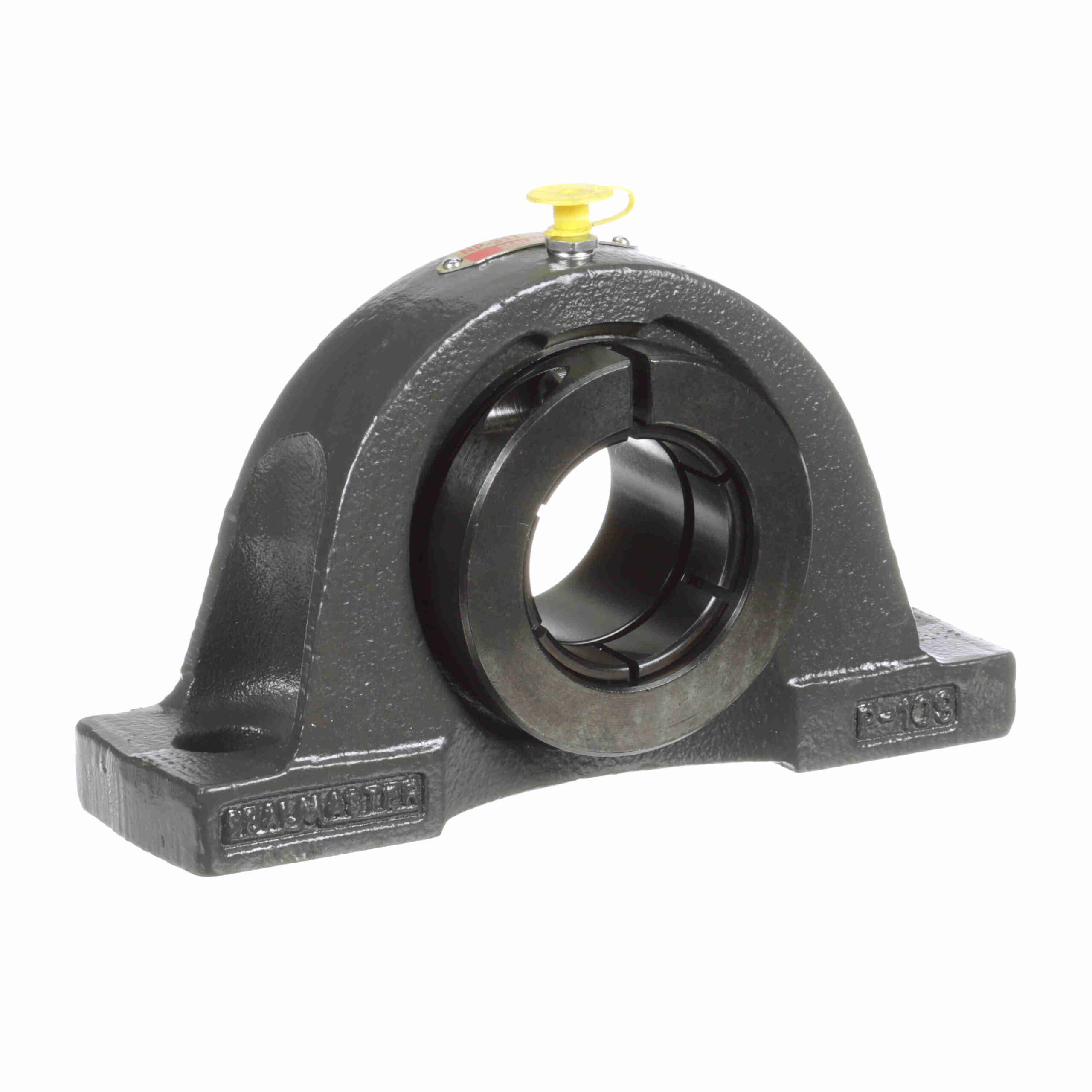

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – NP-31T
$230.41
Availability: 37 in stock
Availability: 37 in stock
| Internal Clearance: | Standard | Retainer Type: | Land Riding Retainer |
|---|---|---|---|
| Housing Base: | Solid | Insert No.: | 2-115T |
| Measure Units: | Inch | Housing Type: | Pillow Block; Two Bolt |
| Duty Series: | Standard Duty | Maximum Operating Temperature: | 220 °F |
| Seal Type: | Felt Labyrinth Seal | Speed (Max): | 5000 |
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Expansion: | No | Housing Material: | Cast Iron |
| Bore Shape: | Straight | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Locking Type: | Concentric |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | End Cap: | No |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| UPC: | 662461029749 | Weight: | 8.98 LB |
| Packaged Length: | 5.19 Inches | Packaged Width: | 9 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
