- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NP-28 DRT

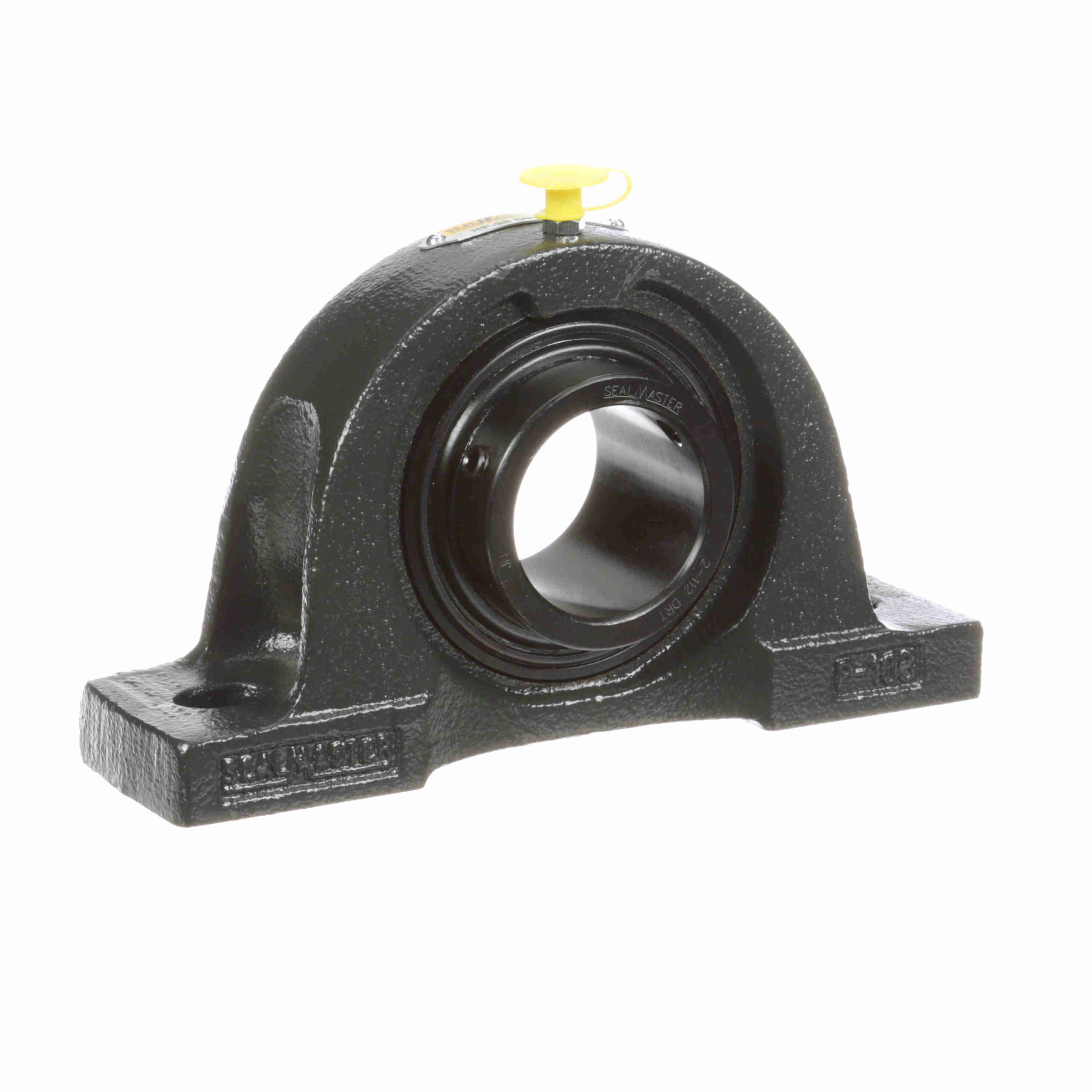

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Contamination – NP-28 DRT
$383.78
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Housing Type: | Pillow Block; Two Bolt |
|---|---|---|---|
| Speed (Max): | 350 | Insert No.: | 2-112 DRT |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Expansion: | No |
| Measure Units: | Inch | Internal Clearance: | Standard |
| Housing Base: | Solid | Seal Type: | Multi-Lip Contact Seal |
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Setscrew |
| Relubricatable: | Yes | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Lubrication: | Lithium Complex NLGI 2 Grease - 100% Fill | End Cap: | No |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated | Options: | High Contamination |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | UPC: | 662461326909 |
| Weight: | 6.50 LB | Packaged Length: | 5.19 Inches |
| Packaged Width: | 2.13 Inches | Packaged Height: | 7.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
