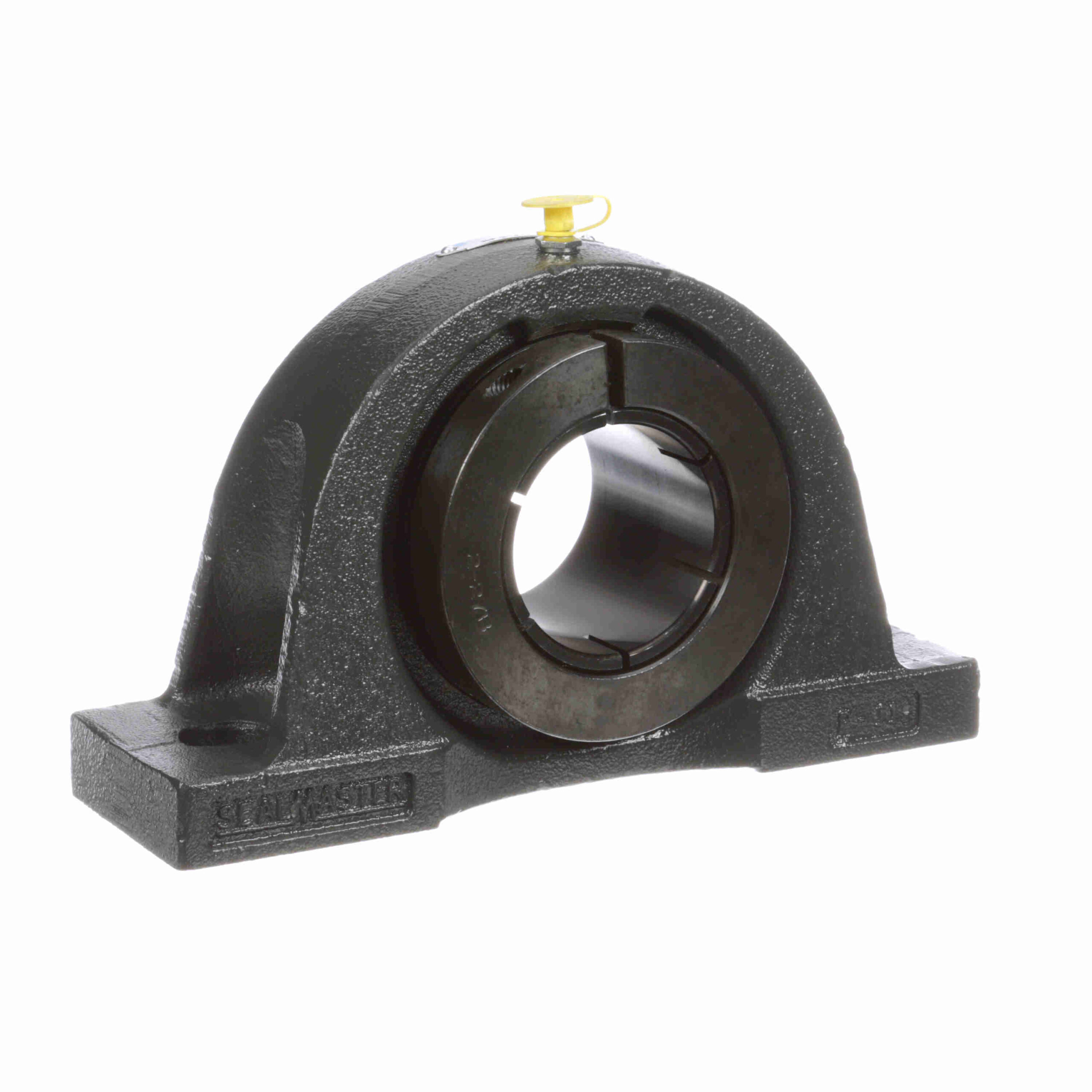

NP-212TM

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Metric fitting
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Measure Units:	Metric	Insert Material:	52100 Bearing Steel, Black Oxided
Housing Base:	Solid	Rolling Element:	Ball Bearing
Internal Clearance:	Standard	Seal Type:	Felt Labyrinth Seal
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	11, 789 lb
Housing Construction:	One Piece	Misalignment:	±2.0° Misalignment - Static Only
End Cap:	No	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	Replaceable Insert:	Yes
Housing Color:	Gray	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Radial Static Load Capacity (lb):	8, 150 lb
Locking Type:	Concentric	Housing Style:	Pillow Block
Retainer Type:	Land Riding Retainer	Lubrication Type:	Lithium Complex NLGI 2 Grease
Housing Material:	Cast Iron	Duty/Series:	Standard Duty
Fixed vs. Expansion:	Fixed	Housing Type:	Pillow Block, Two Bolt
Maximum Speed (RPM):	4100 rpm	Inner Race Heat Treat Method:	Zone-Hardened
Ability to Relubricate:	Yes	Insert Number:	5212TM
Maximum Operating Temperature (F):	220 °F	UPC:	662461000000
Weight:	15.13 LB	Packaged Length:	10.38 Inches
Packaged Width:	6.5 Inches	Packaged Height:	3 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
