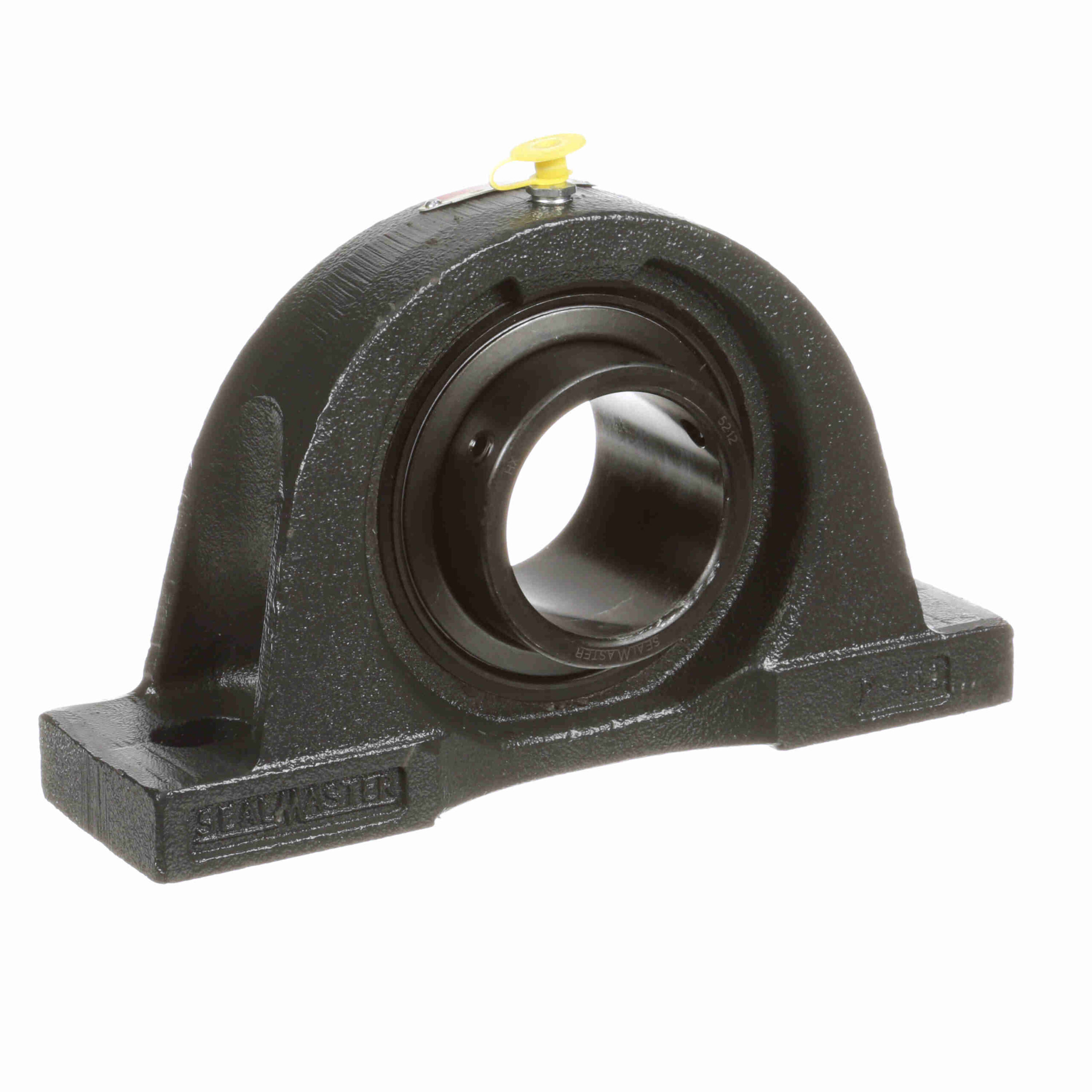

NP-212

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Maximum Operating Temperature:	220 °F
Speed (Max):	3000	Insert No.:	5212
Retainer Type:	Land Riding Retainer	Measure Units:	Metric
Housing Material:	Cast Iron	Insert Material:	52100 Bearing Steel; Black Oxided
Rolling Element:	Ball Bearing	Internal Clearance:	Standard
Housing Type:	Pillow Block; Two Bolt	Expansion:	No
Duty Series:	Standard Duty	Housing Base:	Solid
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	11, 789
Inner-Race Heat-Treat Method:	Zone-Hardened	Locking Type:	Setscrew
Misalignment:	±2.0° Misalignment - Static Only	Relubricatable:	Yes
Lubrication:	Lithium Complex NLGI 2 Grease	Housing Construction:	One Piece
Housing Color:	Gray	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	Misalignment Type:	Static Only
Outer Ring Land Profile:	Standard	End Cap:	No
Replaceable Insert:	Yes	Radial Static Load Capacity (lb):	8, 150
UPC:	662461051832	Weight:	13.80 LB
Packaged Length:	6.5 Inches	Packaged Width:	10.38 Inches
Packaged Height:	3 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
