- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPLE-119

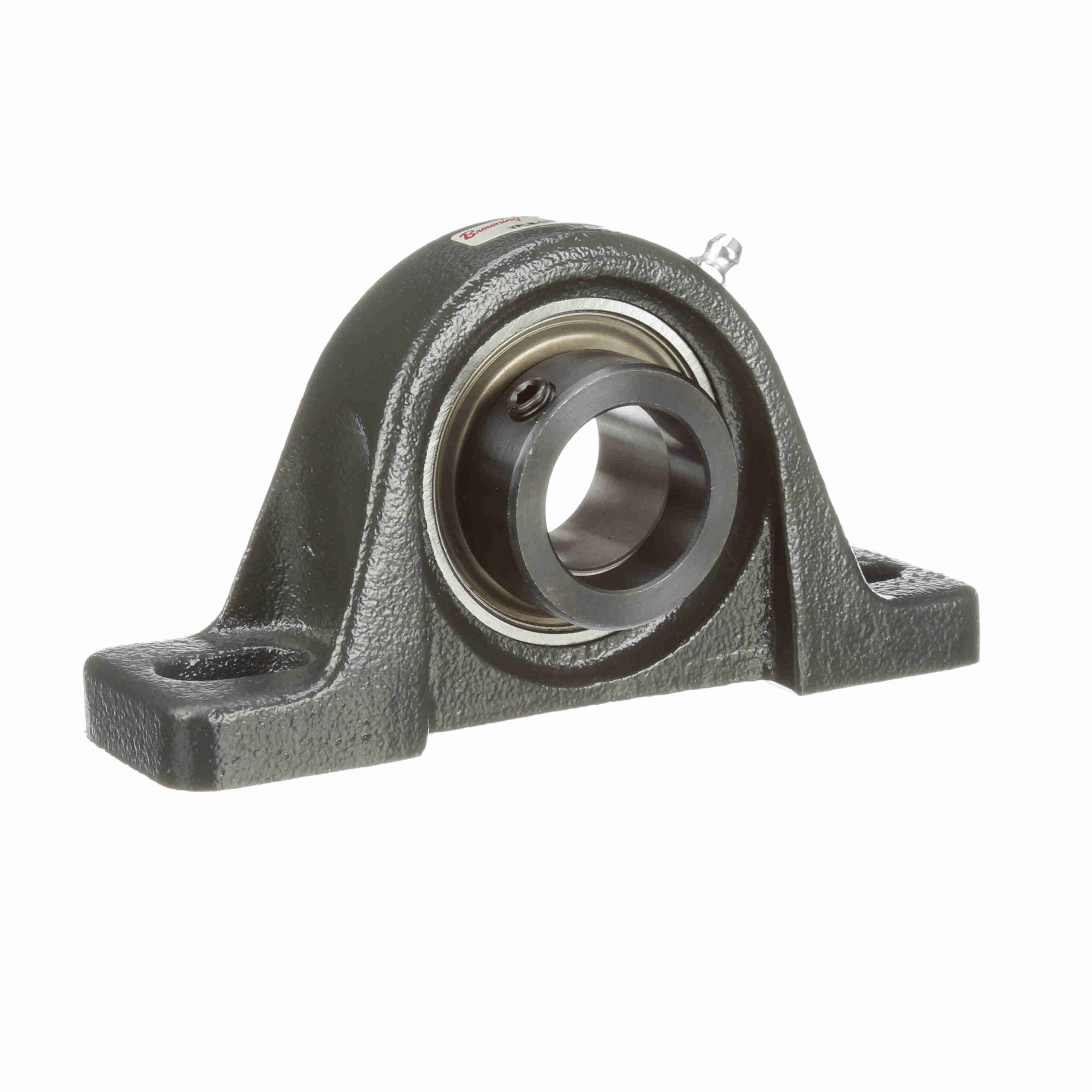

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPLE-119
$79.68
Out of stock
Out of stock
| Duty Series: | Intermediate Duty | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Retainer Type: | Ball Riding Retainer | Insert No.: | VE-119 |
| Insert Material: | 52100 Bearing Steel | Speed (Max): | 3000 |
| Measure Units: | Inch | Maximum Operating Temperature: | 200 °F |
| Housing Material: | Cast Iron | Internal Clearance: | Standard |
| Expansion: | No | Housing Base: | Semi-Solid |
| Housing Type: | Pillow Block; Two Bolt; Low Base | Seal Type: | Single Lip Contact Seal |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Relubricatable: | Yes | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Locking Type: | Eccentric | Retainer Material: | Molded fiber glass reinforced nylon |
| Bearing Insert Coating: | Uncoated | Misalignment Type: | Static Only |
| Housing Color: | Gray | End Cap: | No |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289524068 |
| Weight: | 2.58 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
