- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal with black oxide bearing races
- Metric fitting
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.

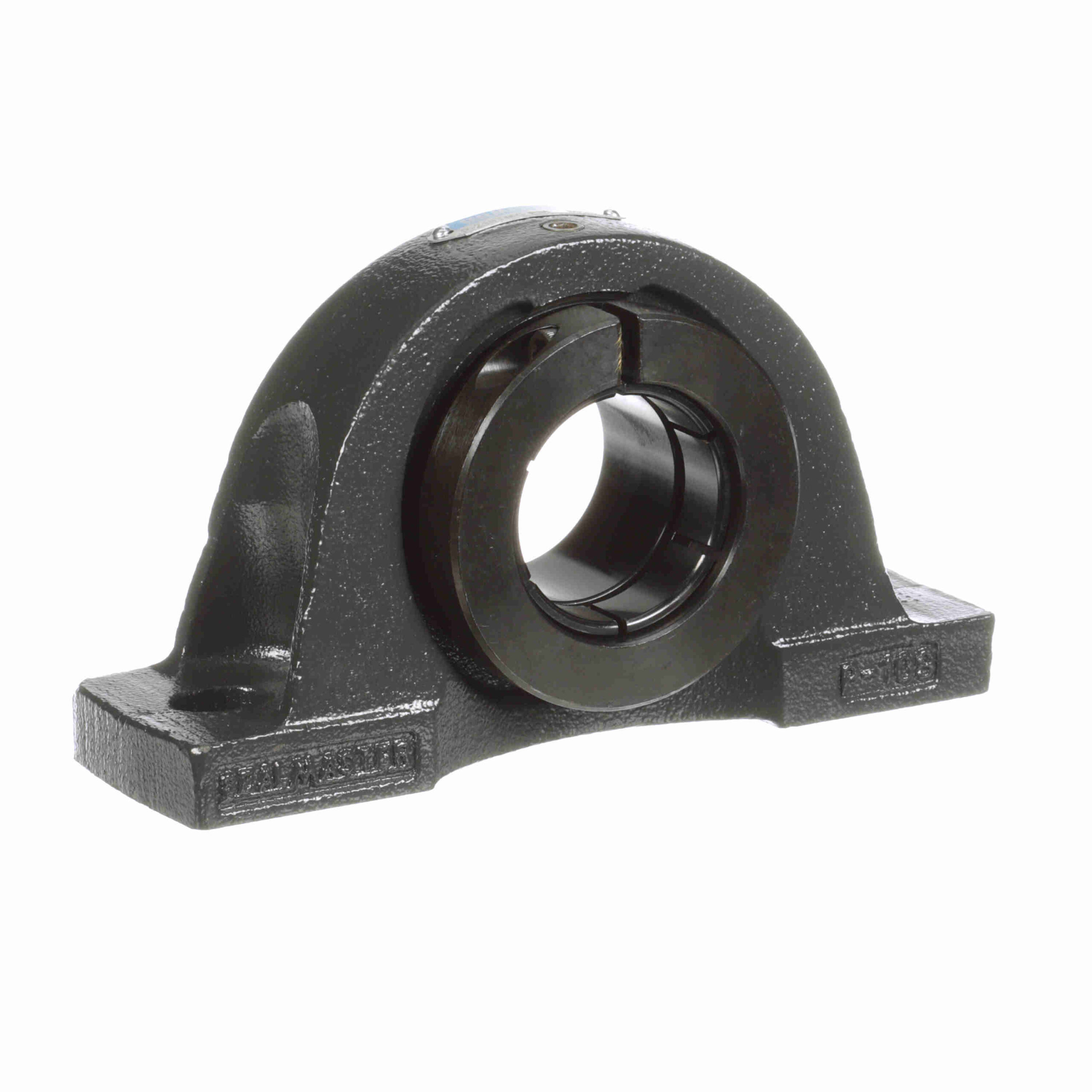

NP-210TMC RM
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Reduced Maintenance – Lubed for Life – NP-210TMC RM
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Measure Units: | Metric | Housing Base: | Solid |
| Internal Clearance: | Standard | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Options: | Reduced Maintenance - Lubed for Life | Outer Ring Land Profile: | Tapered Lands |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| Housing Color: | Gray | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Housing Type: | Pillow Block, Two Bolt | Maximum Speed (RPM): | 3550 rpm |
| Retainer Type: | Land Riding Retainer | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Standard Duty | Housing Material: | Cast Iron |
| Housing Style: | Pillow Block | Locking Type: | Concentric |
| Maximum Operating Temperature (F): | 220 °F | Ability to Relubricate: | No |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | 5210TMC RM |
| UPC: | 662461000000 | Weight: | 8.60 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
