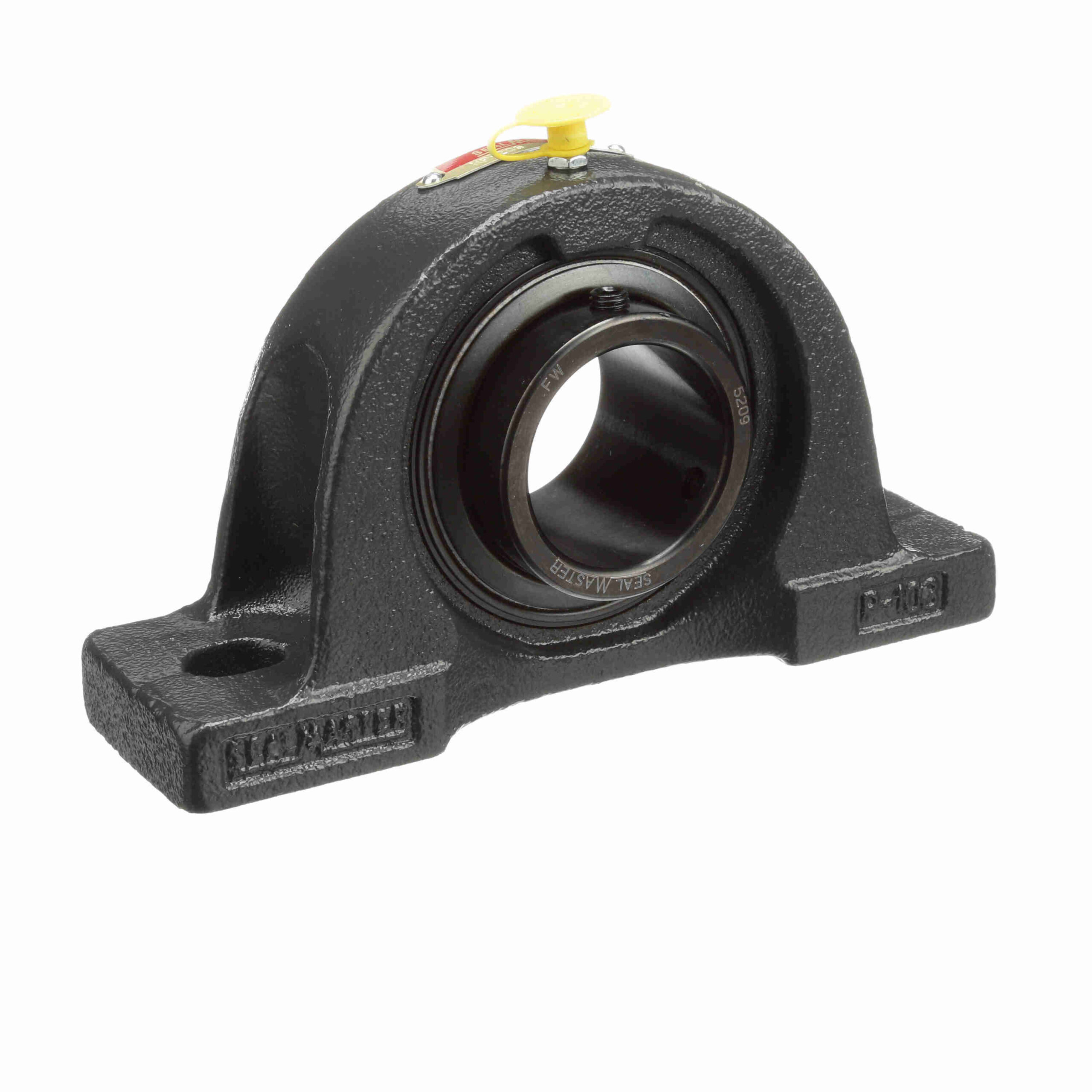

NP-209

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Housing Material:	Cast Iron	Retainer Type:	Land Riding Retainer
Insert No.:	5209	Housing Base:	Solid
Speed (Max):	3800	Insert Material:	52100 Bearing Steel; Black Oxided
Housing Type:	Pillow Block; Two Bolt	Rolling Element:	Ball Bearing
Measure Units:	Metric	Seal Type:	Felt Labyrinth Seal
Maximum Operating Temperature:	220 °F	Expansion:	No
Internal Clearance:	Standard	Duty Series:	Standard Duty
Bore Shape:	Straight	Inner-Race Heat-Treat Method:	Zone-Hardened
Relubricatable:	Yes	Lubrication:	Lithium Complex NLGI 2 Grease
Misalignment:	±2.0° Misalignment - Static Only	Housing Construction:	One Piece
Locking Type:	Setscrew	End Cap:	No
Replaceable Insert:	Yes	Housing Color:	Gray
Misalignment Type:	Static Only	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Standard	Platform:	Gold Line Ball Bearing
UPC:	662461051801	Weight:	6.45 LB
Packaged Length:	5.19 Inches	Packaged Width:	2.13 Inches
Packaged Height:	7.81 Inches	HTC:	8483.20.8040
Country of Origin:	Mexico
