- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NP-207

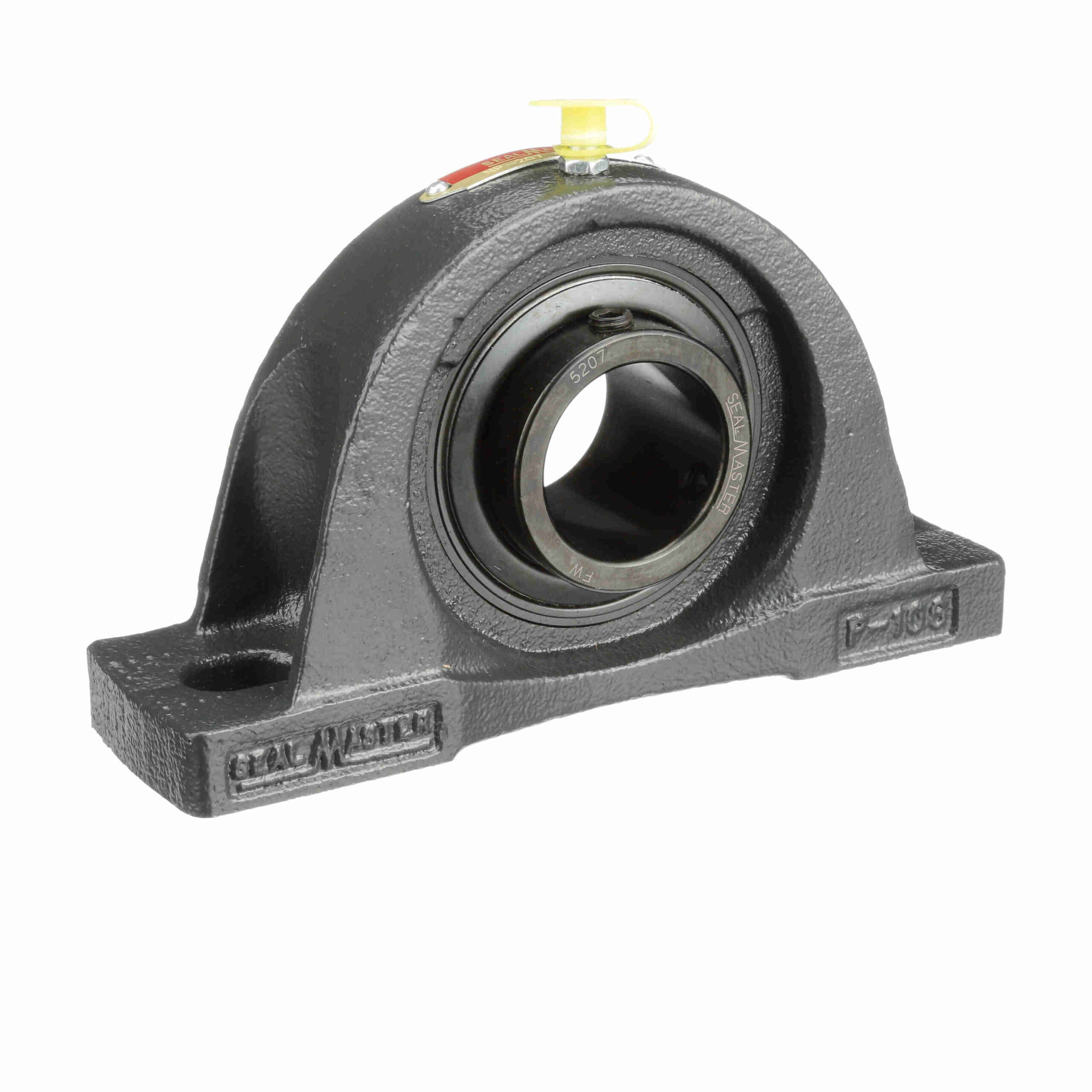

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-207
$205.17
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Duty Series: | Standard Duty | Retainer Type: | Land Riding Retainer |
| Measure Units: | Metric | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Insert No.: | 5207 |
| Housing Type: | Pillow Block; Two Bolt | Internal Clearance: | Standard |
| Expansion: | No | Speed (Max): | 4650 |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Housing Base: | Solid |
| Bore Shape: | Straight | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Relubricatable: | Yes | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | End Cap: | No |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| UPC: | 662461051788 | Weight: | 4.59 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
