- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTBS-231

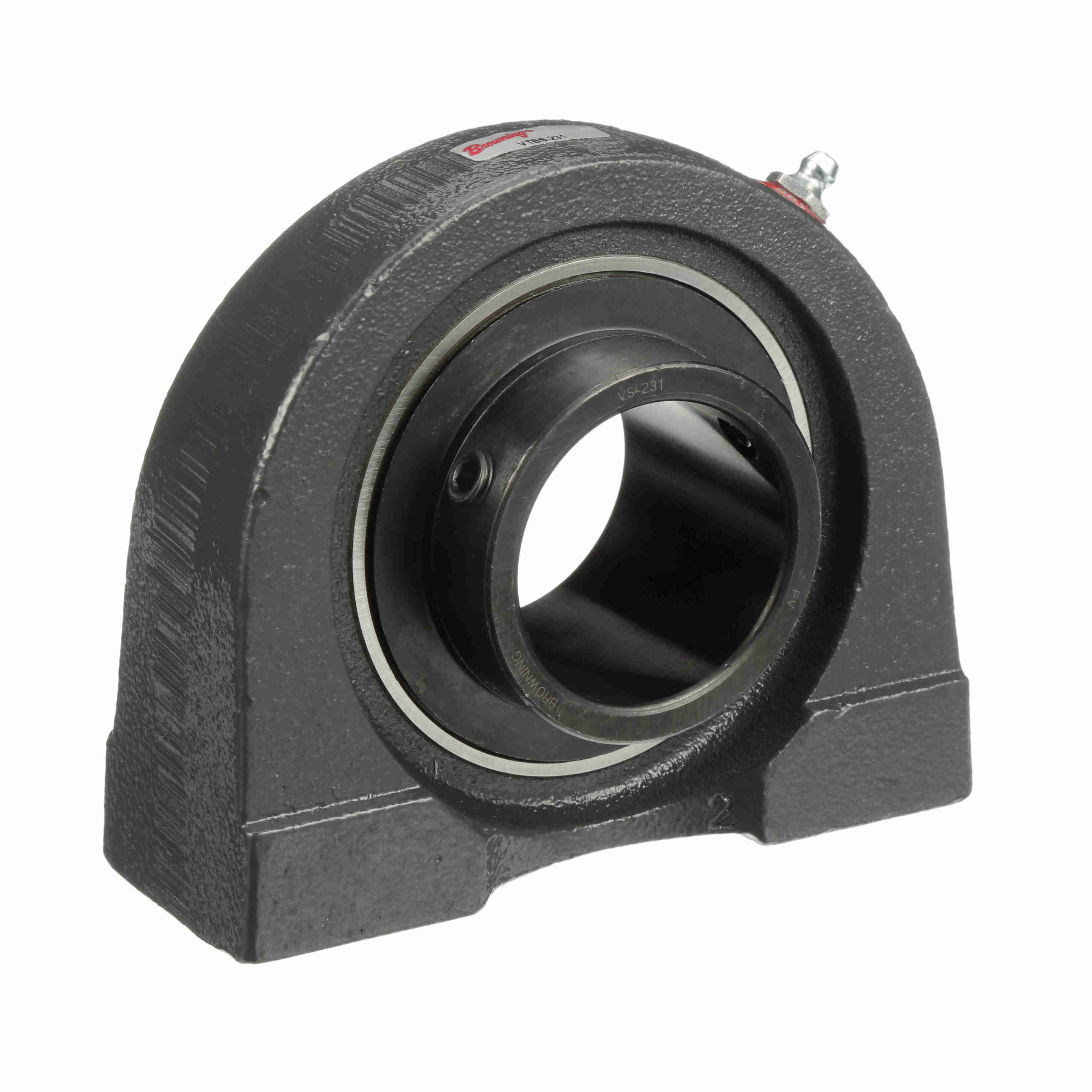

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTBS-231
$181.66
Out of stock
Out of stock
| Insert No.: | VS-231 | Retainer Type: | Ball Riding Retainer |
|---|---|---|---|
| Expansion: | No | Measure Units: | Inch |
| Seal Type: | Single Lip Contact Seal with Flinger | Maximum Operating Temperature: | 200 °F |
| Housing Material: | Cast Iron | Housing Type: | Pillow Block; Tapped Base |
| Duty Series: | Standard Duty | Speed (Max): | 3000 |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Housing Base: | Semi-Solid |
| Rolling Element: | Ball Bearing | Radial Dynamic Load Capacity (lb): | 7, 889 |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Misalignment: | ±1.5° Misalignment - Static Only | Internal Clearance: | Standard |
| Locking Type: | Setscrew | End Cap: | No |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Radial Static Load Capacity (lb): | 5, 216 | UPC: | 662289530335 |
| Weight: | 6.32 LB | Packaged Length: | 5.7 Inches |
| Packaged Width: | 5.9 Inches | Packaged Height: | 2.9 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
