- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.

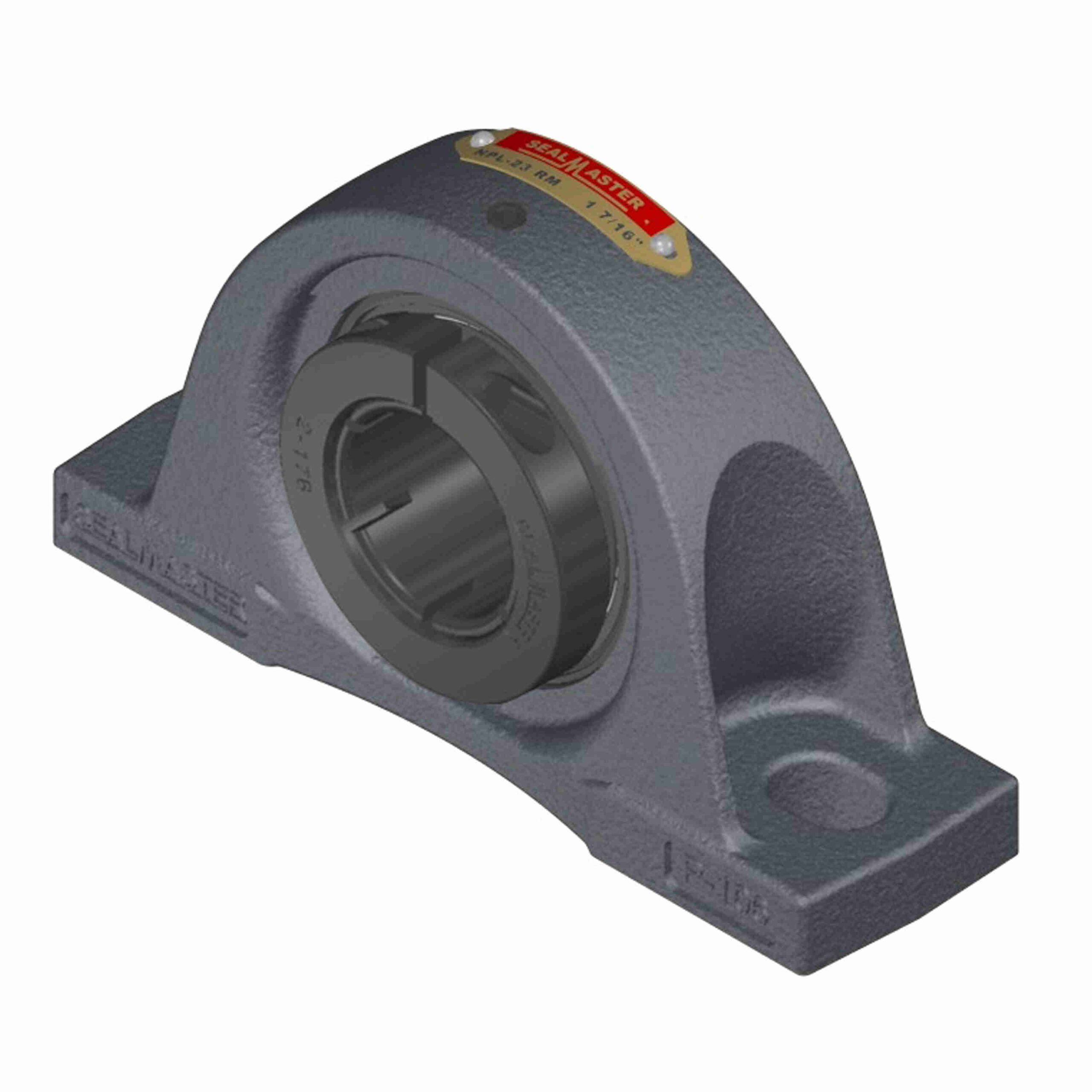

NP-16T RM
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Reduced Maintenance – Lubed for Life – NP-16T RM
$181.09
Out of stock
Out of stock
| Housing Type: | Pillow Block, Two Bolt | Internal Clearance: | Standard |
|---|---|---|---|
| Measure Units: | Inch | Speed (Max): | 9000 |
| Retainer Type: | Land Riding Retainer | Maximum Operating Temperature: | 220 °F |
| Duty Series: | Standard Duty | Housing Material: | Cast Iron |
| Insert No.: | 2-1T RM | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Expansion: | No |
| Housing Base: | Solid | Seal Type: | Felt Labyrinth Seal |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | No | Locking Type: | Concentric |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Misalignment Type: | Static Only | Options: | Reduced Maintenance - Lubed for Life |
| Housing Color: | Gray | Outer Ring Land Profile: | Tapered Lands |
| Replaceable Insert: | Yes | UPC: | 662461346006 |
| Weight: | 2.40 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.75 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
