- Metric yoke type cam follower
- Cylindrical outside diameter
- Retained (caged) needle rolling elements
- LUBRI-DISC® seal
MCYRR 5 X

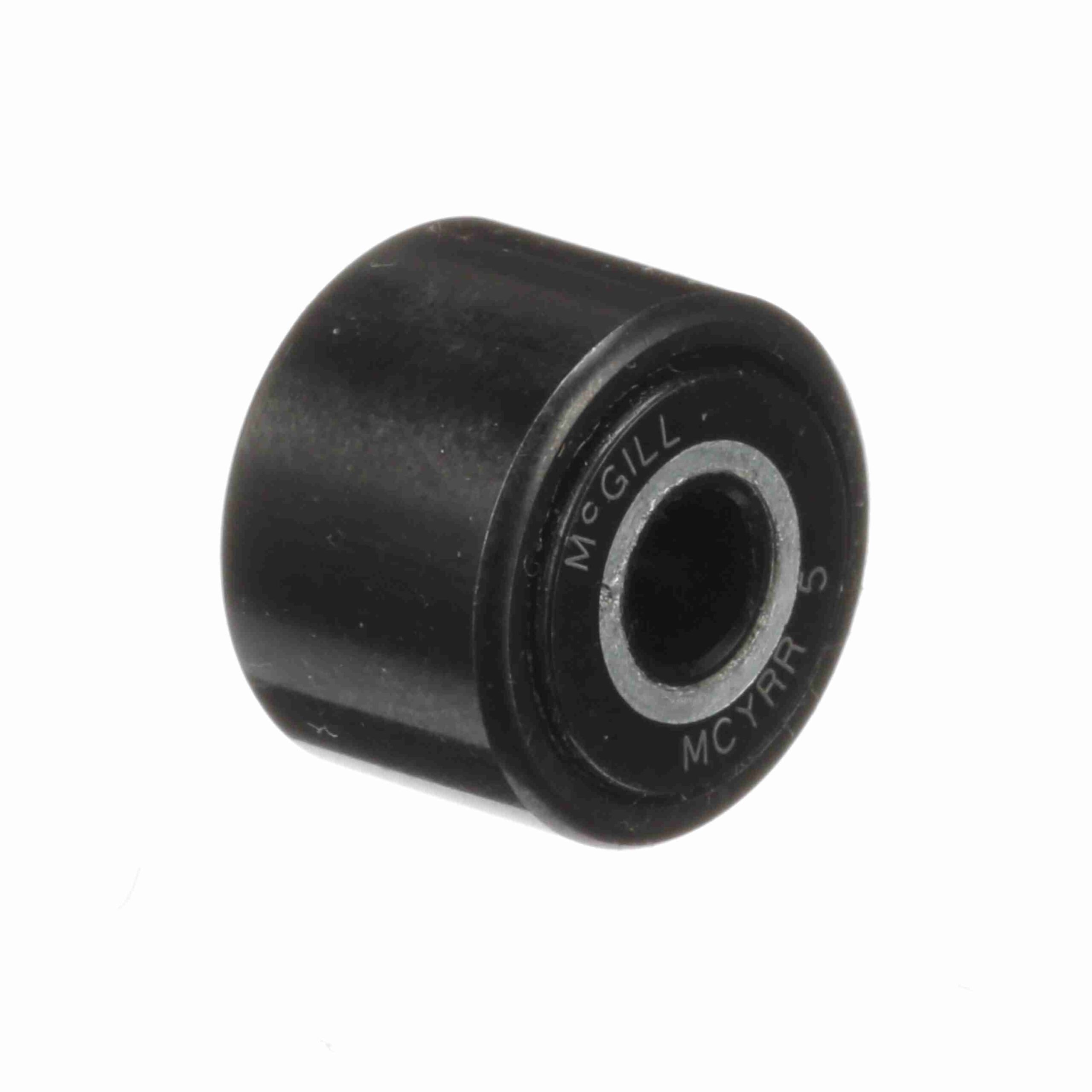

McGill CAMROL® Cylindrical Metric Cam Follower – Yoke Mount Roller – MCYRR 5 X
$13.61
Out of stock
Out of stock
| Dynamic Track Roller Load Rating (N): | 3, 430 N | Sealing: | Unsealed |
|---|---|---|---|
| Limiting Speed: | 20 | Series: | Metric CAMROL® |
| O.D. Configuration: | Cylindrical | Rolling Element: | Needle Roller - Caged |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 3 |
| Tolerance Class: | P0 | Roller Shape: | Cylindrical |
| Static Track Roller Load Rating: | 3 | Dynamic Load Rating (lb): | 771 lb |
| Platform: | CAMROL® | Roller Material: | Chrome Steel |
| Lubrication Hole Location: | Inner Ring | Adjustment: | None |
| Enclosure: | Open | Operating Temperature Range (F): | -20 to 250 °F °F |
| Dynamic Load Rating (N): | 4, 120 N | Ability to Relubricate: | Yes |
| UPC: | 726166051280 | Weight: | 0.04 LB |
| Packaged Length: | 1.65 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 1.38 Inches | Country of Origin: | China |
