- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1684

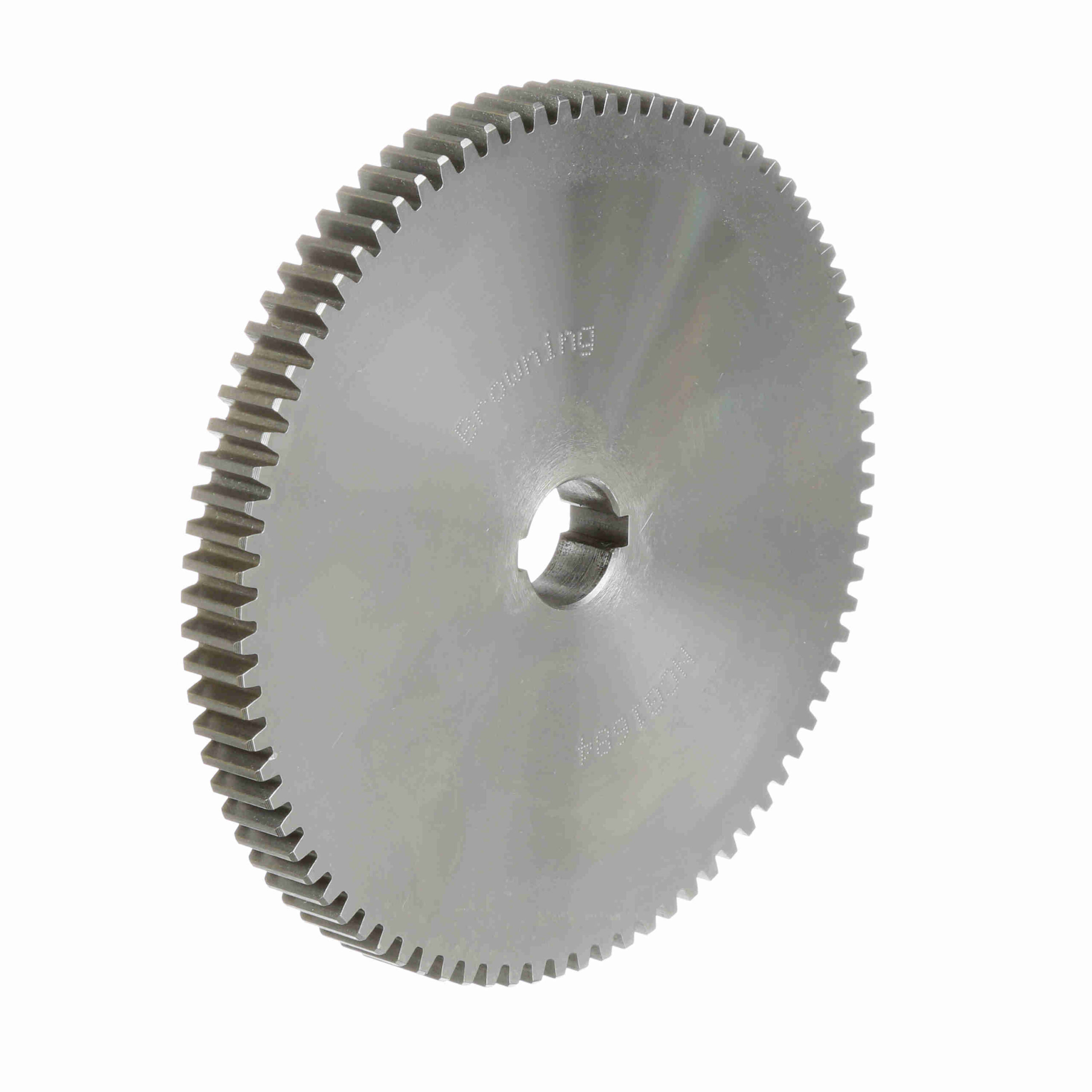

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG1684
$304.64
Out of stock
Out of stock
| Face Width (in): | 0.5 in | Diametral Pitch: | 16 |
|---|---|---|---|
| Pitch Diameter (in): | 5.25 in | Material: | Steel |
| Pressure Angle: | 14.5 | Number of Teeth/Threads: | 84 |
| Outside Diameter (in): | 5.37 in | Length Through Bore (in): | 0.5 in |
| Bore (Max) (in): | 0.75 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Change Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type A |
| UPC: | 662289289493 | Weight: | 3.05 LB |
| Packaged Length: | 5.70 Inches | Packaged Width: | 5.80 Inches |
| Packaged Height: | 1.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
