- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1234

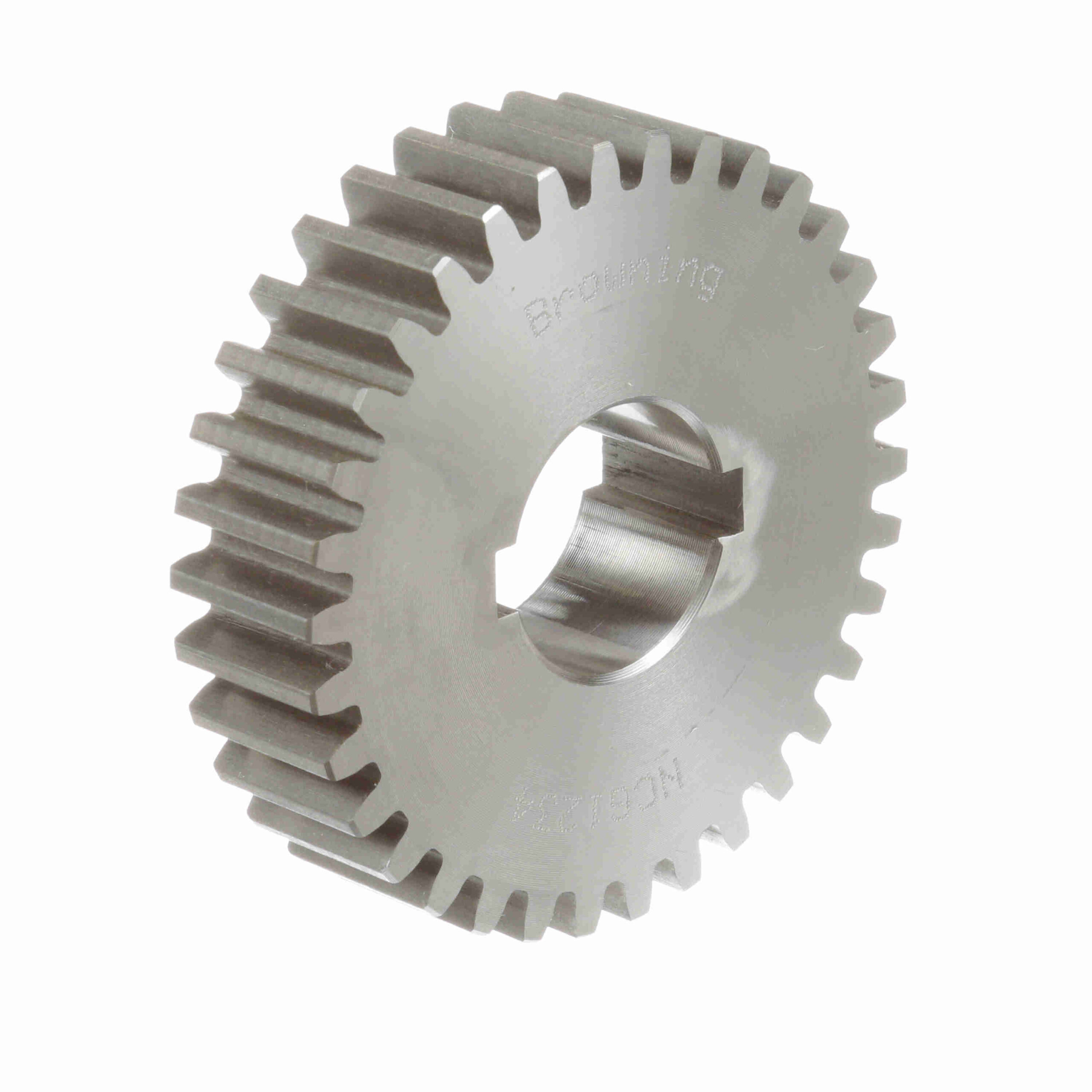

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 12 DP – NCG1234
$152.26
Out of stock
Out of stock
| Face Width (in): | 0.75 in | Number of Teeth/Threads: | 34 |
|---|---|---|---|
| Outside Diameter (in): | 3 in | Diametral Pitch: | 12 |
| Material: | Steel | Pressure Angle: | 14.5 |
| Pitch Diameter (in): | 2.833 in | Bore (Min) (in): | 1 in |
| Bore (Max) (in): | 1 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 0.75 in | Bore Size (in): | 1 in |
| Product Type: | Change Gear | Hub Type: | Type A |
| Overall Length (in): | 0.75 in | Standard Met: | AGMA |
| UPC: | 662289180004 | Weight: | 1.18 LB |
| Packaged Length: | 3.70 Inches | Packaged Width: | 3.90 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
