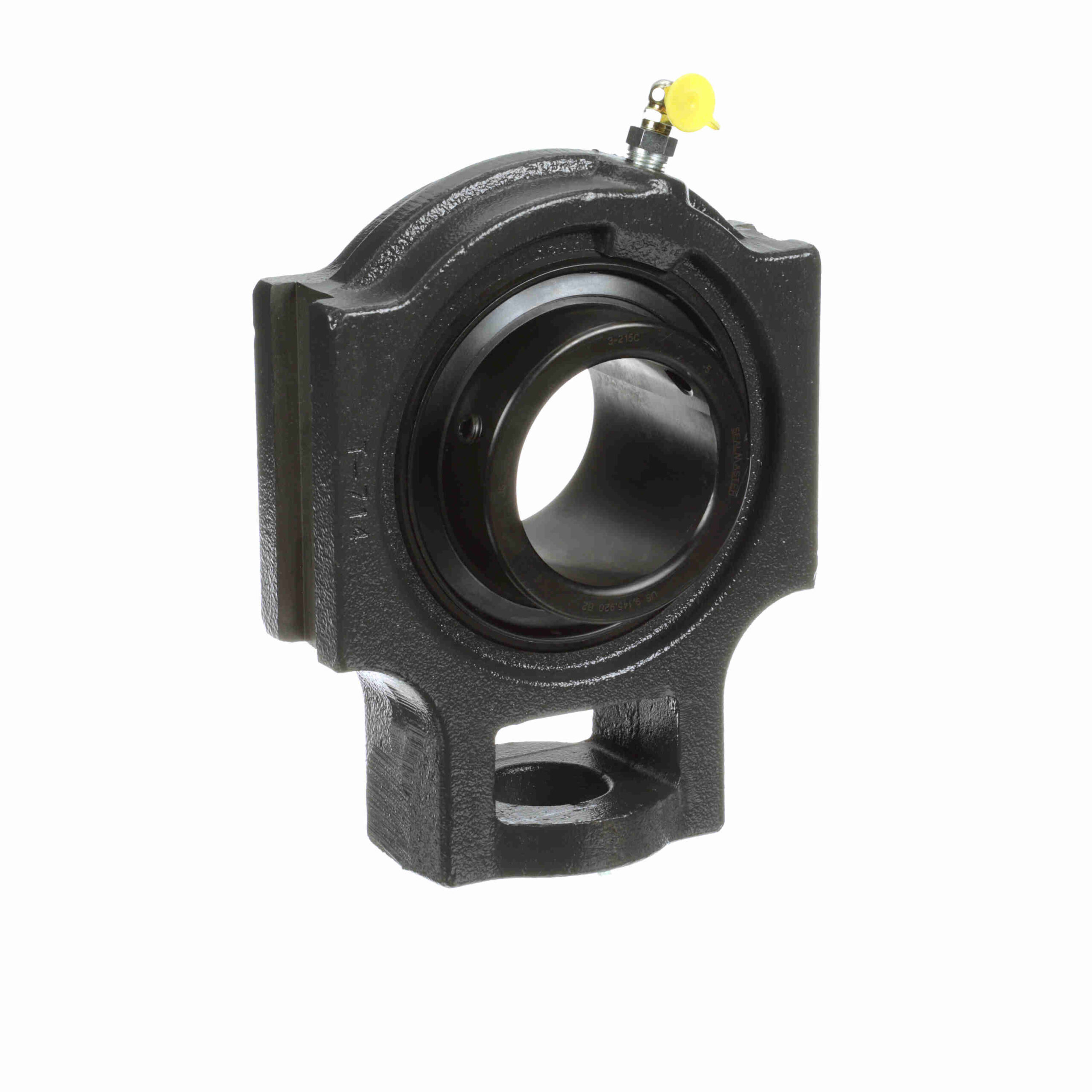

MST-47C

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Measure Units:	Inch	Rolling Element:	Ball Bearing
Insert Material:	52100 Bearing Steel, Black Oxided	Seal Type:	Single Lip Contact Seal
Misalignment:	±2.0° Misalignment - Static Only	Housing Construction:	One Piece
Internal Clearance:	Standard	Bore Shape:	Straight
Radial Dynamic Load Capacity (lb):	17, 412 lb	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	Outer Ring Land Profile:	Standard
Housing Color:	Gray	Replaceable Insert:	Yes
End Cap:	No	Misalignment Type:	Static Only
Series:	MST	Unit Type:	Side Mount
Component Description:	Take Up Bearing Only	Housing Style:	Take-up Blocks
Housing Type:	Take-Up Block, Wide Slot	Retainer Type:	Land Riding Retainer
Locking Type:	Setscrew	Lubrication Type:	Lithium Complex NLGI 2 Grease
Housing Material:	Cast Iron	Maximum Speed (RPM):	1950 rpm
Duty/Series:	Medium Duty	Fixed vs. Expansion:	Fixed
Inner Race Heat Treat Method:	Zone-Hardened	Insert Number:	3-215C
Maximum Operating Temperature (F):	220 °F	Ability to Relubricate:	Yes
UPC:	662461000000	Weight:	23.00 LB
Packaged Length:	10.7 Inches	Packaged Width:	7.63 Inches
Packaged Height:	5 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
