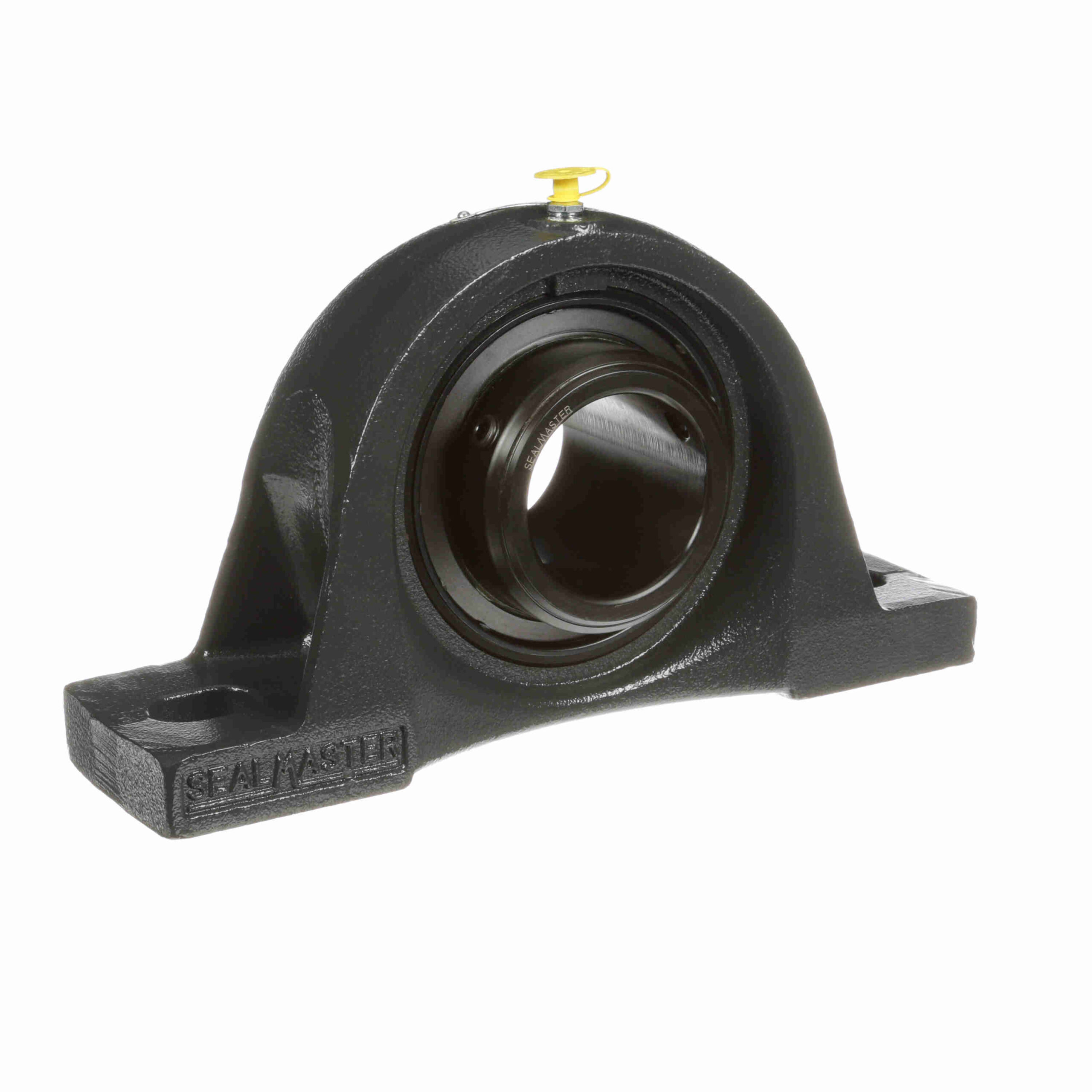

MSPD-47C

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Duty Series:	Medium Duty	Rolling Element:	Ball Bearing
Speed (Max):	1950	Internal Clearance:	Standard
Housing Material:	Cast Iron	Insert Material:	52100 Bearing Steel, Black Oxided
Housing Base:	Solid	Retainer Type:	Land Riding Retainer
Housing Type:	Pillow Block, Two Bolt	Insert No.:	3-215DC
Seal Type:	Single Lip Contact Seal	Expansion:	No
Maximum Operating Temperature:	220 °F	Measure Units:	Inch
Bore Shape:	Straight	Housing Construction:	One Piece
Misalignment:	±2.0° Misalignment - Static Only	Locking Type:	Double Setscrew
Inner-Race Heat-Treat Method:	Zone-Hardened	Relubricatable:	Yes
Lubrication:	Lithium Complex NLGI 2 Grease	End Cap:	No
Housing Color:	Gray	Platform:	Air Handling
Misalignment Type:	Static Only	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Bearing Insert Coating:	Black Oxide Coated
UPC:	662461018637	Weight:	33.00 LB
Packaged Length:	14.25 Inches	Packaged Width:	8.06 Inches
Packaged Height:	4 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
