- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MSFPD-55

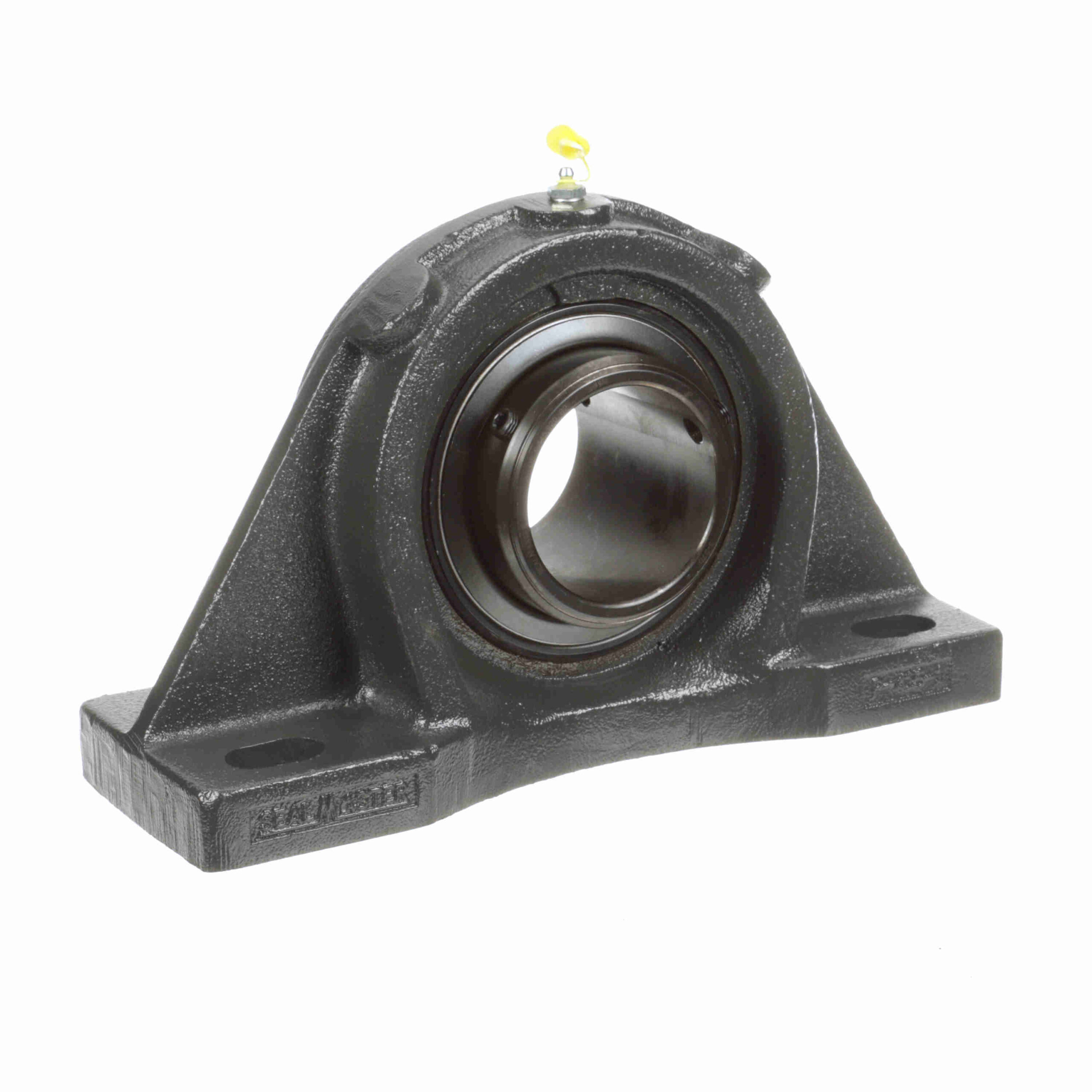

Sealmaster Mounted Cast Iron Four Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Setscrew Lock – MSFPD-55
$1,566.30
Out of stock
Out of stock
| Housing Type: | Pillow Block, Four Bolt | Housing Base: | Solid |
|---|---|---|---|
| Insert No.: | 3-37D | Retainer Type: | Land Riding Retainer |
| Seal Type: | Felt Labyrinth Seal | Duty Series: | Medium Duty |
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 220 °F |
| Housing Material: | Cast Iron | Expansion: | No |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Measure Units: | Inch |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Speed (Max): | 2800 |
| Radial Dynamic Load Capacity (lb): | 21, 566 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Internal Clearance: | Standard | Locking Type: | Double Setscrew |
| Misalignment: | ±2.0° Misalignment - Static Only | Relubricatable: | Yes |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 16, 301 |
| UPC: | 662461015995 | Weight: | 51.80 LB |
| Packaged Length: | 15.75 Inches | Packaged Width: | 9.25 Inches |
| Packaged Height: | 5.25 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
