- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MSF-32

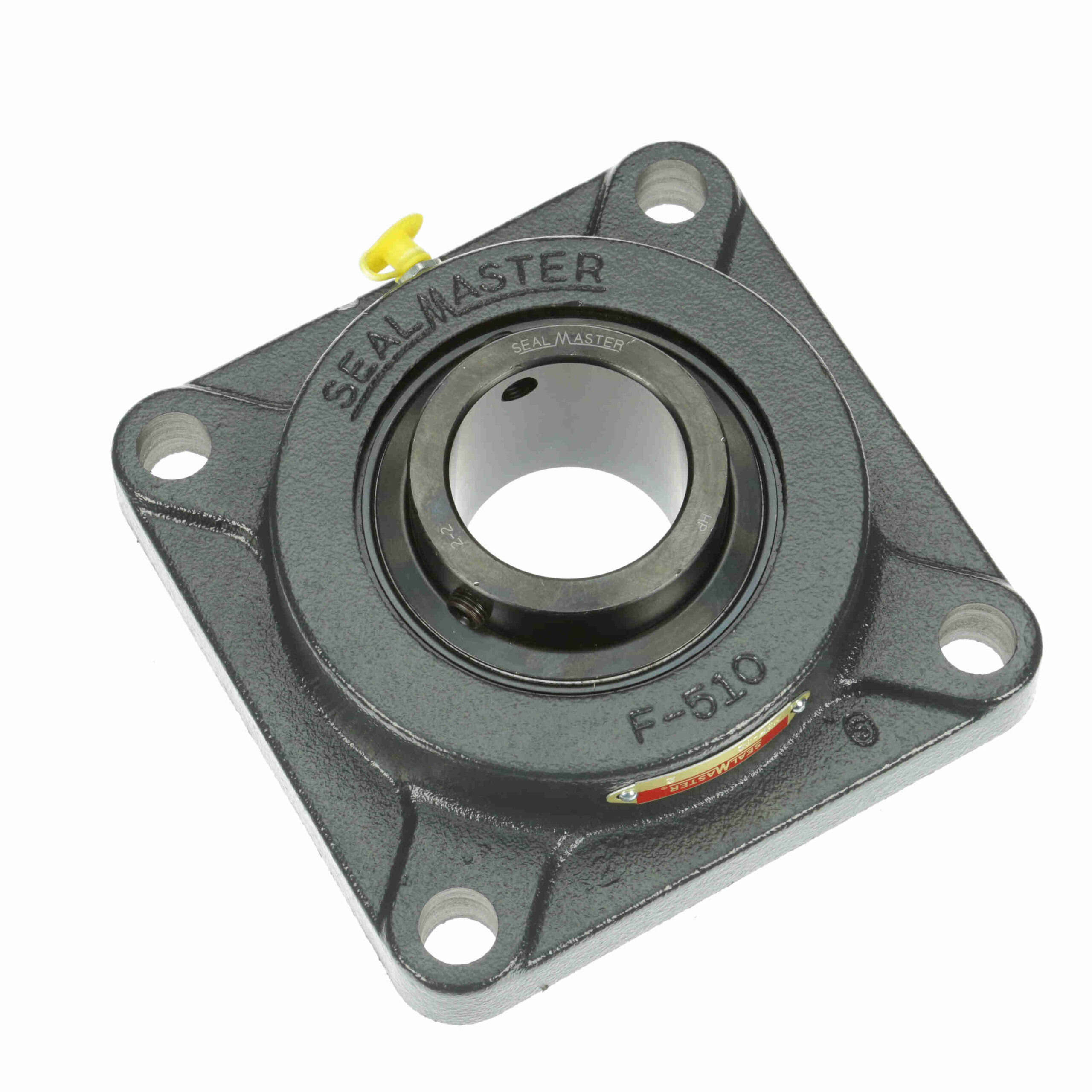

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MSF-32
$285.82
Availability: 13 in stock
Availability: 13 in stock
| Housing Base: | Solid | Duty Series: | Medium Duty |
|---|---|---|---|
| Housing Type: | Flange; Four Bolt | Measure Units: | Inch |
| Housing Material: | Cast Iron | Expansion: | No |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Bore Shape: | Straight |
| Retainer Type: | Land Riding Retainer | Rolling Element: | Ball Bearing |
| Seal Type: | Felt Labyrinth Seal | Insert No.: | 2-2 |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Maximum Operating Temperature: | 220 °F |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Internal Clearance: | Standard | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Speed (Max): | 3250 |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| End Cap: | No | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | T Core: | 4.25 |
| UPC: | 662461014615 | Weight: | 10.36 LB |
| Packaged Length: | 6.75 Inches | Packaged Width: | 6.5 Inches |
| Packaged Height: | 2.44 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
