- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NP-23C

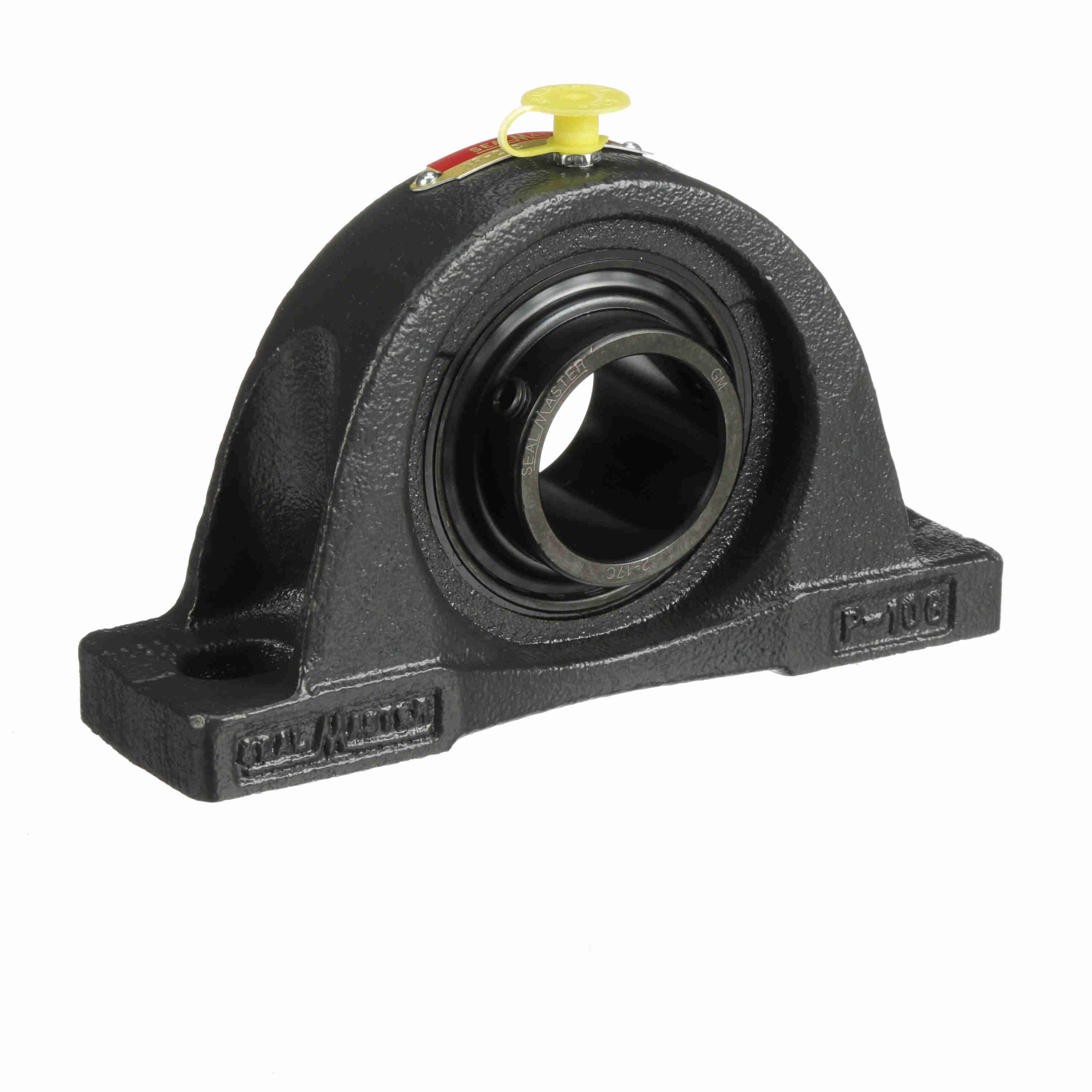

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-23C
$134.06
Availability: 17 in stock
Availability: 17 in stock
| Internal Clearance: | Standard | Duty Series: | Standard Duty |
|---|---|---|---|
| Housing Base: | Solid | Maximum Operating Temperature: | 220 °F |
| Insert No.: | 2-17C | Housing Type: | Pillow Block; Two Bolt |
| Housing Material: | Cast Iron | Retainer Type: | Land Riding Retainer |
| Speed (Max): | 4650 | Expansion: | No |
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Bore Shape: | Straight | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Misalignment: | ±2.0° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Housing Color: | Gray |
| UPC: | 662461020746 | Weight: | 4.19 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
