- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SFT-31

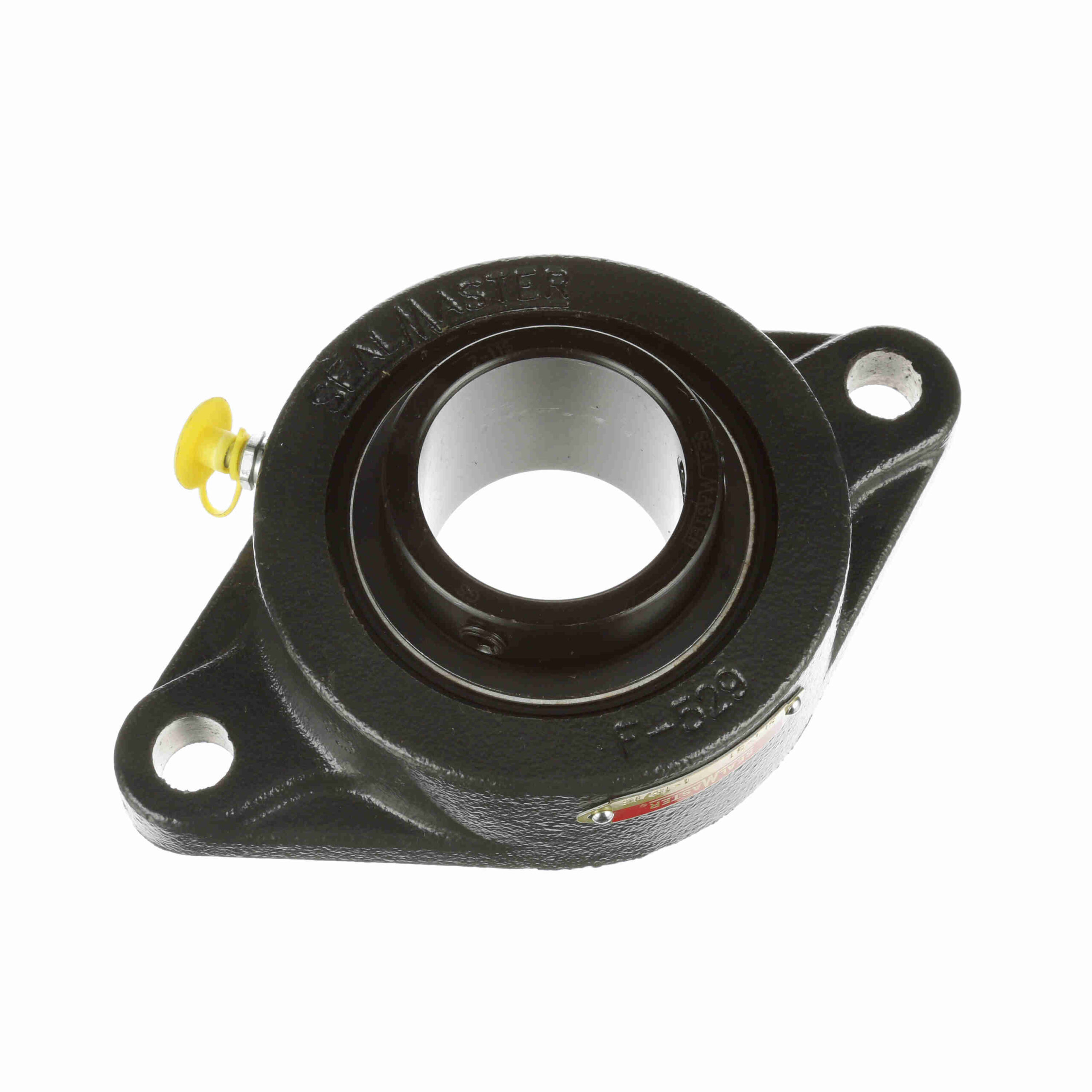

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SFT-31
$192.01
Availability: 60 in stock
Availability: 60 in stock
| Housing Material: | Cast Iron | Duty Series: | Standard Duty |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Housing Base: | Solid | Rolling Element: | Ball Bearing |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Retainer Type: | Land Riding Retainer |
| Maximum Operating Temperature: | 220 °F | Insert No.: | 2-115 |
| Expansion: | No | Seal Type: | Felt Labyrinth Seal |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Bore Shape: | Straight | Speed (Max): | 3550 |
| Internal Clearance: | Standard | Housing Type: | Flange; Two Bolt |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Replaceable Insert: | Yes | End Cap: | No |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | UPC: | 662461004449 |
| Weight: | 5.01 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
