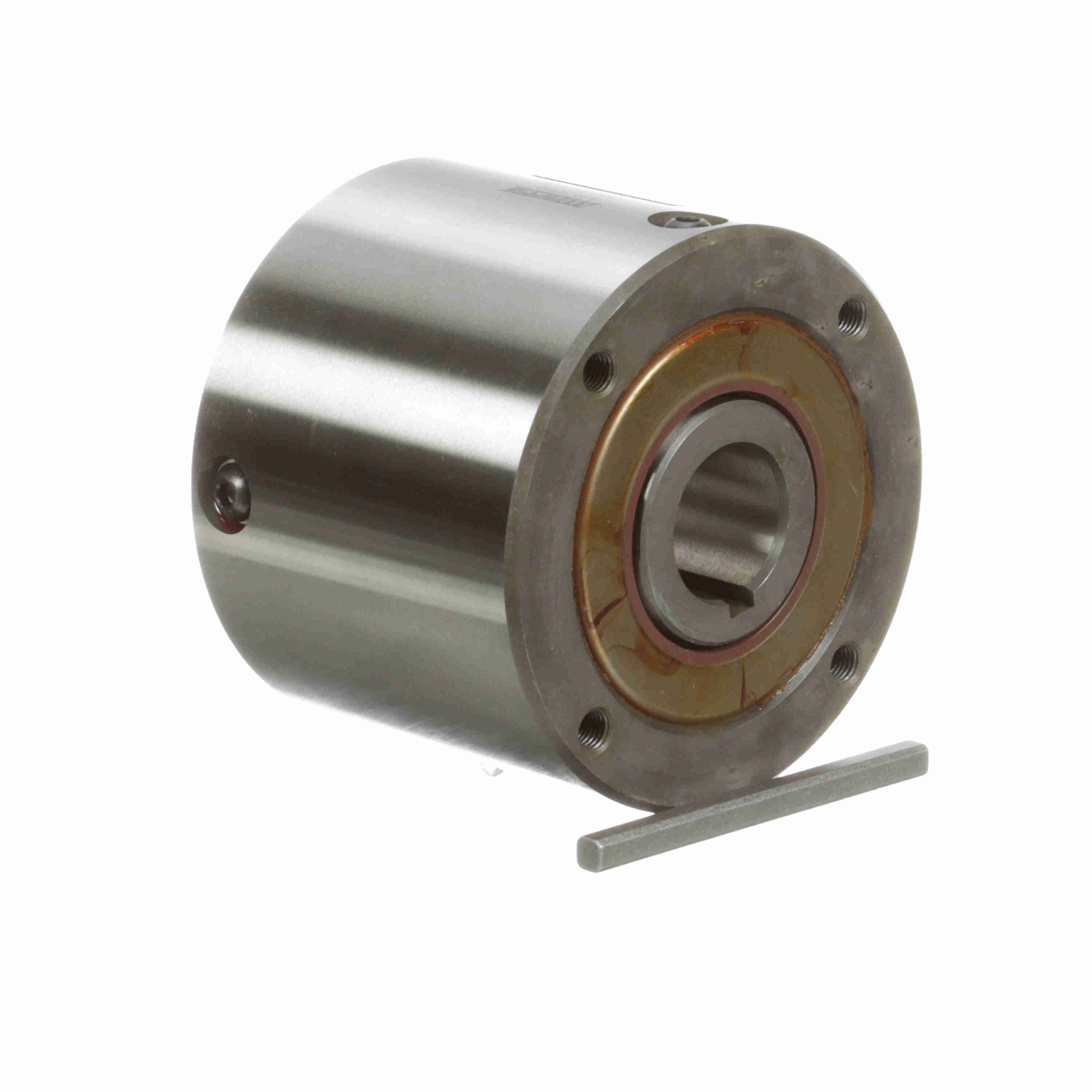

MR500A 1-1/8FB CL

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
MR is for high- speed outer race overruning. Incorporating a unique cam construction that uses centrifugal force to minimize cam drag

Model:	MR	RPM Max. - Outer Race:	2400
Outer Width (in):	3.375 in	RPM Max. - Inner Race:	750
Rated Torque Capacity (ft.-lbs.):	1, 175	Inner Race Width (in):	3.5 in
Type:	CAM Clutches	Overall Diameter (in):	4.25 in
Product Type:	M Series	Mode of Operation:	High Speed outer race overrunning
Add'l Bearing Support Requirement:	No	Bore Size (in):	1.125 in
Backstopping Clutch:	Yes	Bore (Min) (in):	0.875 in
Indexing Clutch:	Yes	Lubrication Type:	Oil
Overrunning Clutch:	Yes	Bore (Max) (in):	1.25 in
Nominal Overrunning Drag (ft-lb):	0.38	UPC:	662288501404
Weight:	11.00 LB	Packaged Length:	4.25 Inches
Packaged Width:	4.25 Inches	Packaged Height:	3.63 Inches
HTC:	8483.60.4040	Country of Origin:	Mexico
